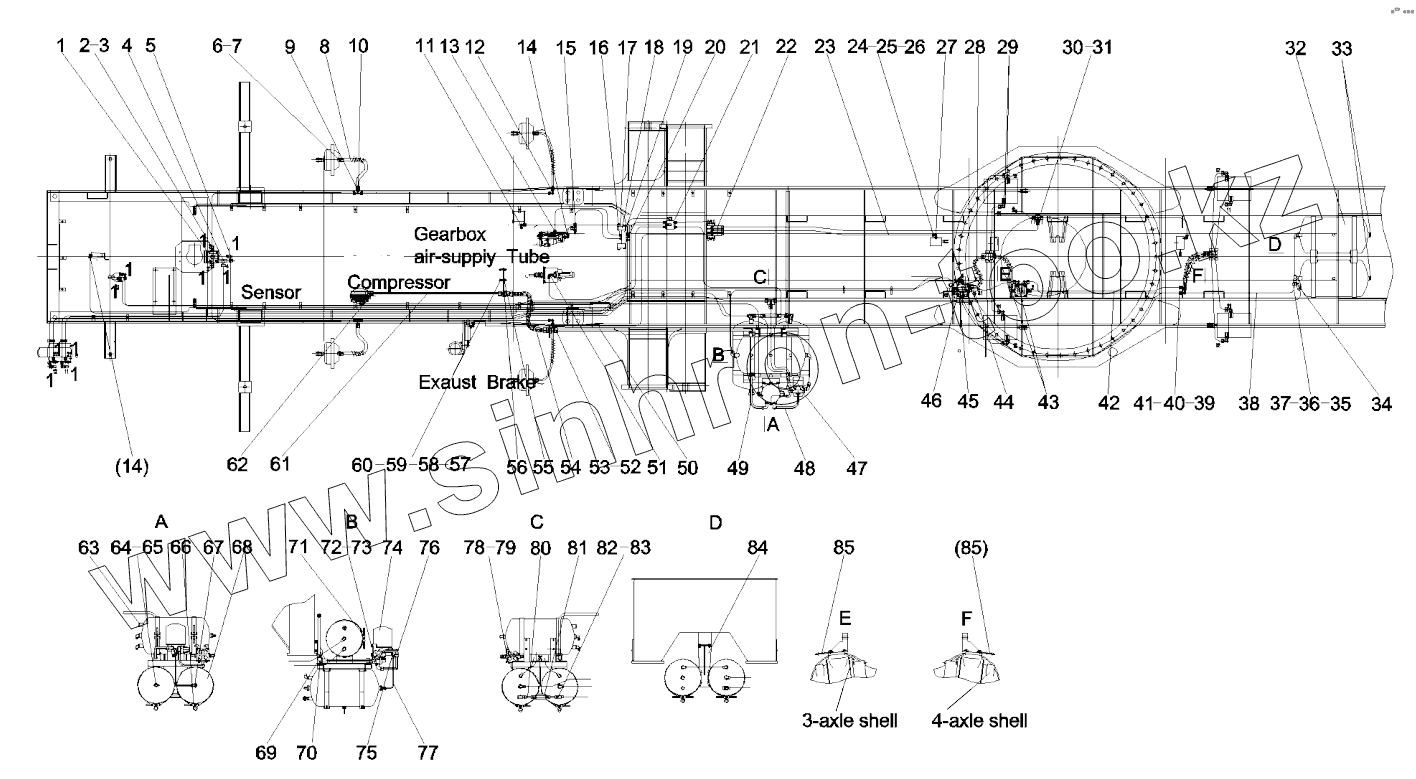

Каталог запасных частей к технике: SANY QY50CS93. 10238570 Brake system device

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
85
Позиция на иллюстрации Заводской номер детали Название детали
1 A220401000201 Valve, relay
2 A210770000392 Connector, pipe
3 A229900002973 Washer, seal
4 A210770000597 Tee adaptor, clamp sleeve-type end
5 A229900003050 Joint, right angle, adjustable
6 A229900002971 Washer, seal
7 A229900003042 Adaptor, straight, end
8 A229900003130 Hose, brake
9 A210338000000 Nut
10 A229900003251 Connector, tee
11 A229900003249 Connector, right angle
12 A229900003250 Connector, right angle, bulkhead
13 A229900003040 Joint, right angle, arresting cone
14 A229900003038 Elbow, right angle
15 A229900003033 Connector, tee
16 10810396 Joint
17 60021798 Coil
18 60021797 Box, terminal
19 60020700 Valve, 2/5, double controlled
20 10810395 Joint, right angle
21 A820199003120 Joint block
22 60027958 Group, valve, air, electromagnetic
23 A240900000006 Pipe, plastic
24 A210306000008 Nut
25 A210710000003 Sleeve, clip
26 A229900003019 Bushing
27 A229900003252 Joint, right angle, adjustable
28 A229900005108 Hose, brake
29 A210770000394 Connector, pipe
30 A229900003034 Connector, tee, bulkhead
31 A210334000015 Nut
32 A229900003261 Barrel, gas storage
33 A210332000003 Screw plug
34 A820205001993 Tee, pressure-measuring, adjustable
35 A210306000013 Nut
36 A210710000007 Sleeve, clip
37 A229900003352 Core, liner
38 A239900000411 Hose, nylon
39 A210306000012 Nut
40 A210710000004 Sleeve, clip
41 A229900003021 Bushing
42 A241400000011 Pipe, nylon
43 A210770000393 Connector, pipe
44 A229900003354 Connector, tee
45 A220401000199 Valve, differential
46 A210314000008 Nut
47 A220401000200 Four-Way Protective Valve
48 10490133 Pipe assy, steel , valve, air inlet, protective, four-loop
49 10490247 Pipe assy, steel, valve, air inlet, dryer,
50 10140225 Pipe assy, steel, valve, air inlet, dryer
51 A229900003045 Joint, right angle, adjustable
52 A229900003350 Body, connector, through, clamp end
53 A210338000001 Nut
54 A229900003013 High temperature hose assembly
55 A820101330953 Bracket, front, hose, high-temp
56 10140231 Bracket I, pipe, steel, outlet, air compressor
57 A210111000011 Bolt
58 A210401000001 Washer
59 A210405000011 Washer
60 A210307000017 Nut
61 10238483 Pipe assy, steel, outlet, air compressor
62 10379884 Joint, straight, end
63 A210332000001 Plug, screw
64 A229900003257 Connector, spacer
65 A229900003037 Connector, measuring
66 A220401000202 Drain valve assembly
67 A229900003046 Joint, right angle, adjustable
68 A229900003260 Barrel, gas storage
69 10134918 Bracket assy, reservoir, air
70 A210770000424 Connector, pipe
71 10135646 Band assy, reservoir, air
72 A210114000067 Bolt
73 A210401000002 Washer
74 A229900008874 Dryer
75 A229900003463 Joint, right angle, adjustable
76 A229900003051 Joint, right angle, adjustable
77 10490167 Pipe assy, steel, connecting, regeneration tube
78 A210111000089 Bolt
79 A210401000017 Washer
80 10490203 Pipe assy, steel, connecting, check valve
81 A220401000230 Valve, one-way
82 A210310000010 Nut
83 A229900003259 Connector, tee, end
84 10189018 Bracket assy, reservoir, air, axle 1 & 3
85 A820101330172 Plate, connector, dual-hole joint, II
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
