5. 10124601 Piping, hydraulic, superstructure

Каталог запасных частей к технике: SANY QY50CS93. 10124601 Piping, hydraulic, superstructure

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано QY50CS93 RSC45C RSC45C SDCY90K6C SSR120AC-8 STC250H STC250S5 STG190C-8 SY135C8 SY210C8 SY215C9 SY335C8 SY5250GJB6C SY5320THB 470C-8S SY55C9 SY65C SY75C SY75C9I2H SYM5190THBDZ 30 YZ18C YZ20C

Схема > Не выбрано 10661213 QY50CS93 Truck Crane body 10217854 Chassis, truck crane 10224206 Cab and air-condition device 10218631 Cab assy, operator, installation 60019171 Cab assy, operator 10223762 Air conditioner, chassis 10214285 Power system device 10199380 Suspension, diesel engine 10209484 Oil supply system 10207320 Air inlet system 10210603 Exhaust system 10208511 Cooling system 10449538 Steering system device A810305000030 Hydraulic steering system A810305990026 Steering axle assy, bracket assy 10435089 Piping, steering A810299019000 Steering reservoir assy 10203390 Drive system device 10597787 Clutch, operation mechanism 10930898 Transimission, operation mechanism A810103000242 Drive shaft device 60033734 Shaft, transmission 10633857 PTO & transmission device 10221787 Main body, structure 10182108 Fifth Outrigger Oil Cylinder A810312000264 Float, 5th outrigger 10131163 Boom bracket 10267537 Cover installation assy, diesel engine 10130755 Fender assy 10671016 Platform & bracket assy 10575004 Step assy, front, left 10173873 Step assy, rear, left 10002419 Cap installation assy, fuel tank 10173872 Step assy, right 10173889 Step assy, rear, right 10115869 Operation device, chassis 10041143 Tow hook 00000196 Bracket assy, spare wheel 10467307 Outrigger assy 10865623 Horizontal Cylinder 10865624 Horizontal Cylinder 10865628 Horizontal Cylinder 10059849 Front vertical oil cylinder 10059851 Rear vertical oil cylinder A810399000584 Float 10054662 Suspension device, axle A810314000011 Suspension system, front A810314000010 Suspension assy, rear 10136396 Suspension walking beam assy 11448811 Cent support assy A229900003121 Spring assembly, rear steel plate 10428901 Wheel & tire 10238570 Brake system device 10490133 Pipe assy, steel , valve, air inlet, protective, four-loop 10490247 Pipe assy, steel, valve, air inlet, dryer 10135646 Band assy, reservoir, air 10180366 Hydraulic system, chassis 10180365 Pipeline, hydraulic, chassis 10180365 Pipeline, hydraulic, chassis 10180365 Pipeline, hydraulic, chassis 10180365 Pipeline, hydraulic, chassis A810201023784 Piping, outrigger, front A810201062325 Catcher assy, oil 11008111 Bracket assy, oil inlet 10138579 Multi-way valve assy A810201023785 Piping, outrigger, rear 10180367 Oil pump assy 11008120 Piping, hydraulic, elevating 11234474 Valve assy, balance, luffing 00002137 Joint, rotary 10095616 Installation, cylinder, hydraulic, chassis 10095616 Installation, cylinder, hydraulic, chassis A810201069383 Joint, oil return 10217425 Electric system, chassis 10217425 Electric system, chassis 10217425 Electric system, chassis 10957737 Installation assy, battery 11031379 Layout, installation, plate, name 10663087 Boom 10663087 Boom 10663087 Boom 10663087 Boom 10663087 Boom 10663087 Boom 10667459 Jib A819700000631 Pulley subassy 10649855 Telescoping mechanism 10649855 Telescoping mechanism 10649337 Bracket assy, guide wheel 10587474 Pulley assy 10583572 Bracket, cylinder 10048659 Pulley assy 10048663 Pulley assy 10047105 Cylinder assy, boom, telescoping 10047023 Telescopic boom oil cylinder 10047028 Telescopic boom oil cylinder 10042264 Roller, rope support 10042317 Roller, rope guard 10042316 Roller 10042078 Roller, rope support 10585149 Pulley, boom end 11205605 Pulley assy 10789107 Swing table assy 10059435 Amplitude Oil Cylinder A810302081015 Bearing, swing A810302030079 Swing mechanism 10779330 Cover, swing frame 10764978 Footstep 10057072 Fixing, shaft, triple-hinge 10171030 Counterweight subassy 10123663 Mirror assy A810308000044 Elevating mechanism 10003107 Rope guard 10172980 Cab, operator, superstructure 11156301 Cab, operator 10452422 Operation device assy 10225860 Protection device 10136970 Air conditioner, cab, operator 10136483 Heater, cab, operator 10057484 Hydraulic system, superstructure 10124601 Piping, hydraulic, superstructure 10124601 Piping, hydraulic, superstructure 10124601 Piping, hydraulic, superstructure 10118526 Piping, cylinder, telescoping 10905927 Switching valve, telescoping cylinder A810201062444 Adaptor seat assy, 4-way A810201062445 Adaptor seat assy, 5-way 11008088 Valve assy, check 11008465 Master control&oil draining circuit 10117048 Assembling assy, block, valve, master control 11007924 Adaptor body assy, 5-way 11159276 Piping, pressure measurement 10115809 Assembling assy, motor, winch 11008069 Valve assy, balance, winch 11008070 Block, transferable 10995938 Valve assy, check 10114704 Assembling assy, valve, main A810201062455 Valve assembling assy, solenoid 10118515 Piping, superstructure swing & air-conditioner 11242934 Valve assy, control, air-conditioner 11008089 Valve assy, shuttle 10138470 Valve assy, throttle, check 11011669 Cushion valve assy, swing 10138667 Block, relief, brake 11127475 Motor assy, air-conditioner 10182732 Electrical system A810201055589 Electrical device, boom 11141483 Harness 2, boom 10166002 Harness, boom 10010739 Detctor subassy, overwind 10044528 Weight hammer 10044511 Weight hammer 10182622 Electrical system, swing table 10181950 Layout, panel, operation 10182609 Harness, sensor, pressure 10117085 Conduction ring subassy 10181949 Harness, solenoid valve 10142437 Harness 1 10140655 Lamp subassy, outline, rear 10181910 Electrical system, jib 10181901 Harness 1, jib 10181902 Harness 2, jib 10022380 Weight hammer, ring 10203754 Layout, plate, name 10037105 Hook, auxiliary 10137968 Hook, auxiliary, subassy

48

49

50

51

52

53

54

55

56

57

58

59

91

92

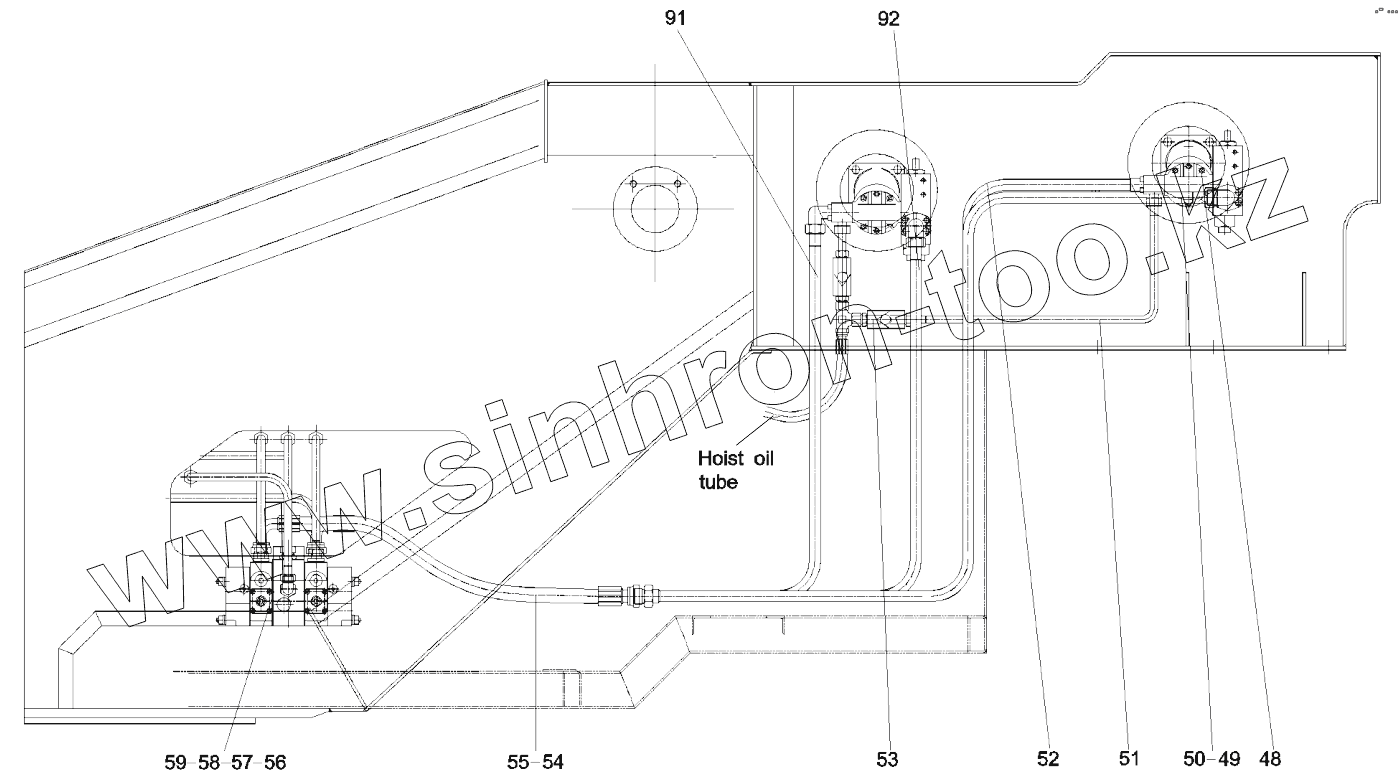

Позиция на иллюстрации	Заводской номер детали		Название детали
48	10115809		Assembling assy, motor, winch
49	10124587		Pipe assy, steel
50	A229900003567		Connector, flange, right angle
51	11008426		Pipe assy, steel
52	10124588		Pipe assy, steel
53	10995938		Valve assy, check
54	B230103002927		Hose, rubber
55	B230103008239		Hose, rubber
56	10114704		Assembling assy, valve, main
57	A210111000041		Bolt
58	A210401000002		Washer
59	A210307000001		Nut
91	11008435		Pipe assy, steel
92	11008438		Pipe assy, steel
