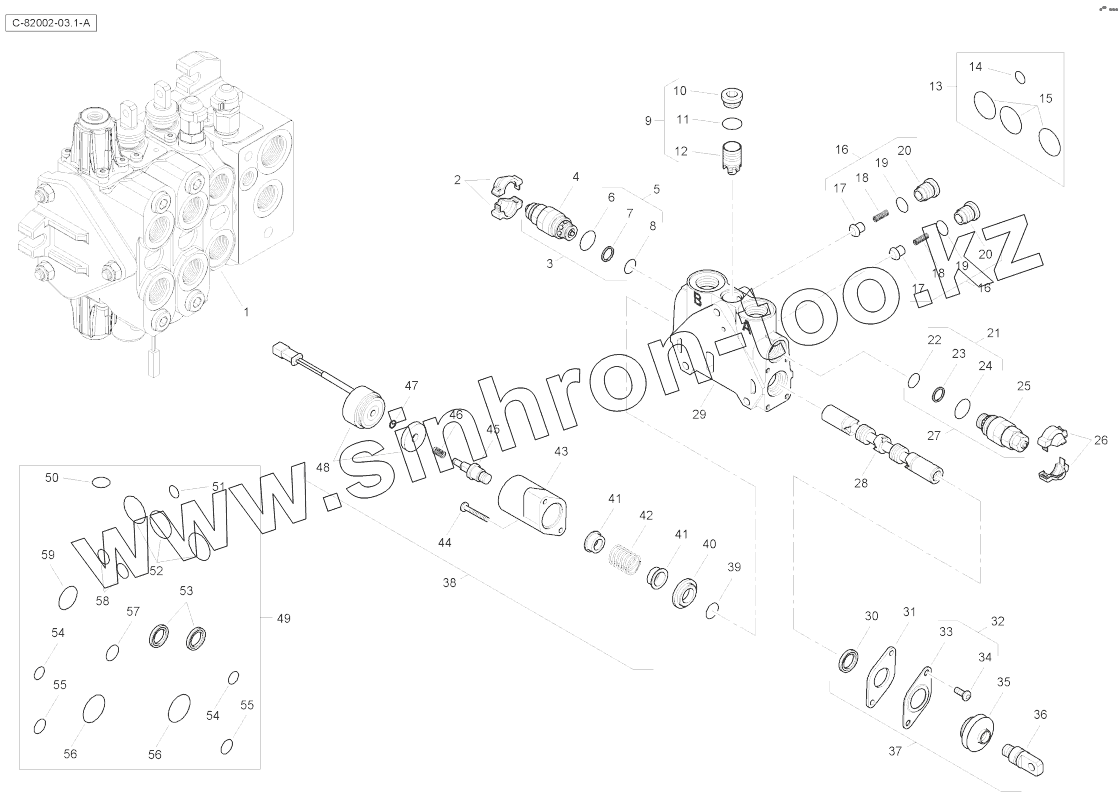

Каталог запасных частей к технике: RM-Terex TLB-890 (часть 2). Loader Valve - Servo Controls

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
54
55
55
56
56
57
58
59
Позиция на иллюстрации Заводской номер детали Название детали
1 6196156M91 Valve Assembly
2 Cover Cover
3 6196158M91 Pressure Relief Valve
4 Valve Valve
5 Kit Kit
6 O-Ring O-Ring
7 Seal Seal
8 O-Ring O-Ring
9 Kit Kit
10 Plug Plug
11 O-Ring O-Ring
12 Body Body
13 6193771M91 Seal Kit
14 O-Ring O-Ring
15 O-Ring O-Ring
16 Kit Kit
17 Valve Valve
18 Spring Spring
19 O-Ring O-Ring
20 Plug Plug
21 Kit Kit
22 O-Ring O-Ring
23 Seal Seal
24 O-Ring O-Ring
25 Valve Valve
26 Cover Cover
27 6196157M91 Pressure Relief Valve
28 Spool Spool
29 Body Body
30 Element Element
31 Plate Plate
32 Kit Kit
33 Cover Cover
34 Screw Screw
35 Seal Seal
36 Screw Screw
37 6193780M91 Mechanical Kit
38 6193798M91 Electrical Detent Kit
39 O-Ring O-Ring
40 Element Element
41 Bushing Bushing
42 Spring Spring
43 Body Body
44 Screw Screw
45 Element Element
46 Spring Spring
47 Clip Clip
48 Kit Kit
49 6196144M91 Seal Kit
50 O-Ring O-Ring
51 O-Ring O-Ring
52 O-Ring O-Ring
53 Seal Seal
54 O-Ring O-Ring
55 O-Ring O-Ring
56 O-Ring O-Ring
57 O-Ring O-Ring
58 O-Ring O-Ring
59 O-Ring O-Ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
