Каталог запасных частей к технике: RM-Terex TL-310. Variab.Displ.Pump - Drive 2 5364662523

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CD TFC45LX hc SIDER (2013) RT35-1 (2018) TC-29 (2014) TC-48 (2013) TC-50 (2013) TC35 (2015) TL-260 (2009) TL-310 (2013) TLB-815 (2010) TLB-825 (2018) TLB-840 (2010) TLB-890 (часть 1) (2013) TLB-890 (часть 2) (2013) TLB-990 Tier 3 (2013) TLB840SM, TLB840PM (2013)

Схема > Не выбрано Inspection Parts Front Chassis Articulation Tools Rear Chassis, Fender Access Stairs, Base Frame Bearing Oscillating Axle Bearing, Central Lubrication Tl03100100-0101 Oscillating Axle Bearing, Central Lubrication Tl03100102> Oil Tank Old Version Oil Tank New Version Fuel Tank Engine Hood Cover >Tl03100101 Cover Tl03100102> Steering Unit Stickers Operator`s Cab Operator`s Cab - Glazing Operator`s Cab - Equipment Version 1 Operator`s Cab - Equipment Version 2 Operator`s Cab - Floor Frame Operator`s Cab - Right Door Operator`s Cab - Left Door Operator's Seat Msg85 Operator's Seat – Suspension Msg85 Air Conditioning System Heating-Air Conditioner Unit Axle, Tires >Tl03100114 Axle, Tires Tl03100115-0119 -0118 Axle, Tires Tl03100120> +0118 Front Axle - Differential Housing - 5370661965 >Tl03100114 Front Axle - Differential Housing - 5370662200 Tl03100115> Front Axle - Differential With Self Locking Differential - 5370661965 >Tl03100114 Front Axle - Differential With Self Locking Differential - 5370662200 Tl03100115> Front Axle - Wheel Hub, Axle Casing- 5370661965 >Tl03100114 Front Axle - Wheel Hub, Axle Casing- 5370662200 Tl03100115> Front Axle - Disc Brake - 5370661965 >Tl03100114 Front Axle - Disc Brake - 5370662200 Tl03100115> Rear Axle - Differential Housing - 5370661966 >Tl03100114 Rear Axle - Differential Housing - 5370662201 Tl03100115> Rear Axle - Differential With Self Locking Differential - 5370661966 >Tl03100114 Rear Axle - Differential With Self Locking Differential - 5370662201 Tl03100115> Rear Axle - Wheel Hub, Axle Casing- 5370661966 >Tl03100114 Rear Axle - Wheel Hub, Axle Casing- 5370662201 Tl03100115> Rear Axle - Disc Brake - 5370661966 >Tl03100114 Rear Axle - Disc Brake - 5370662201 Tl03100115> Rear Axle - Intermediate Gear - 5370661966 >Tl03100114 Rear Axle - Intermediate Gear - 5370662201 Tl03100115> Loading Equipment 1 Loading Equipment 2 Loading Equipment - Lubricating Points Hydraulic Quick Attach System Bucket With Quick Attach Bucket With Quick Attach Fork Lift Attachment - With Quick Attach Engine Assembly Pumps Mounting Exhaust System Air Filter Pedal Accelerator Combined Oil Cooler >Tl03100101 Combined Oil Cooler Tl03100102-0122 Combined Oil Cooler Tl03100123> Combined Oil Cooler Items Tl03100123> Fuel Supply Engine Parts 1 Engine Parts 2 Engine Parts 3 Hydraulic Installation - Steering Hydraulic Installation - Drive Ventilator Motor >Tl03100122 Hydraulic Installation - Drive Ventilator Motor Tl03100123> Hydraulic Installation - Loading Equipment Hydraulic Installation - Circulation >Tl03100122 Hydraulic Installation - Circulation Tl03100123> Hydraulic Installation - Servo Control Hydraulic Installation – Service Brake Hydraulic Installation - Parking Breake Hydraulic Installation - Load Check Valve Lifting Frame Hydraulic Installation - Over Center Valve Dumping Hydraulic Installation - Load Ride Control Valve Bank 4m6-15 5606660525 Valve Bank - Spool 4m6-15 5606660525 Pilot Control Valve Pilot Control Block Hydraulic Cylinder - Steering Z80/40 Hydraulic Cylinder - Lifting Frame >Tl3100 Hydraulic Cylinder - Lifting Frame Tl3100> Hydraulic Cylinder - Dumping >Tl03100106 -0103 Z160/100 Hydraulic Cylinder – Dumping Tl03100107> +0103 Z160/100 Hydraulic Cylinder - Dumping Tl03100> Z160/100 Hydraulic Cylinder - With Quick Attach Variable Motor A6vm160dax/63w Variable Motor A6vm107da3/63w Variab.Displ.Pump - Drive 1 5364662523 Variab.Displ.Pump - Drive 2 5364662523 Variab.Displ.Pump - Drive 3 5364662523 Variable Displacement Pump - Working 5689659819 Gear Type Motor 5100620048 Emergency Steering Assembly 5368632580 Electric Installation - Instrument Panel Electric Installation - Console Electric Installation - Console - Switch Electric Installation - Fuse Panel And Relay Panel Electric Installation - Operator's Cab Electric Installation – Base Frame Electric Installation - Front Chassis Electric Installation – Rear Chassis Electric Installation - Machine Electric Installation – Engine Electric Installation - Battery Electric Installation - Starter Box Electric Installation - Auxiliary Lighting Electric Installation - Bucket Return Positioner Electric Installation - Lifting Height Limitation Electric Installation - Immobilizer

1

2

3

9

26

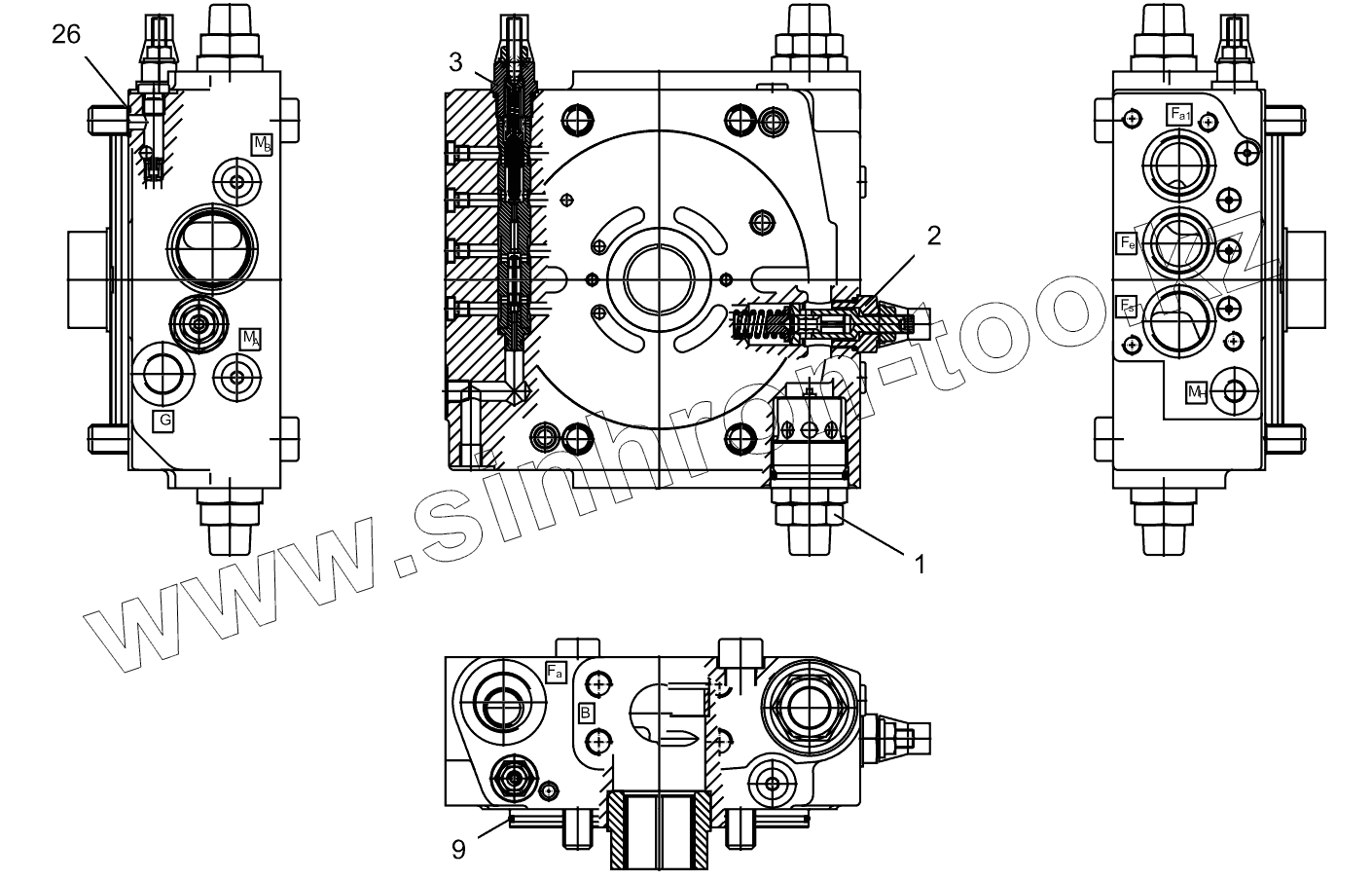

Позиция на иллюстрации	Заводской номер детали		Название детали
1	5364800183		Valve
2	5364656202		Pr. Relief Valve
3	5364663143		Shut Off Valve
9	1971960164		O-Ring
26	5364663824		O-Ring

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
