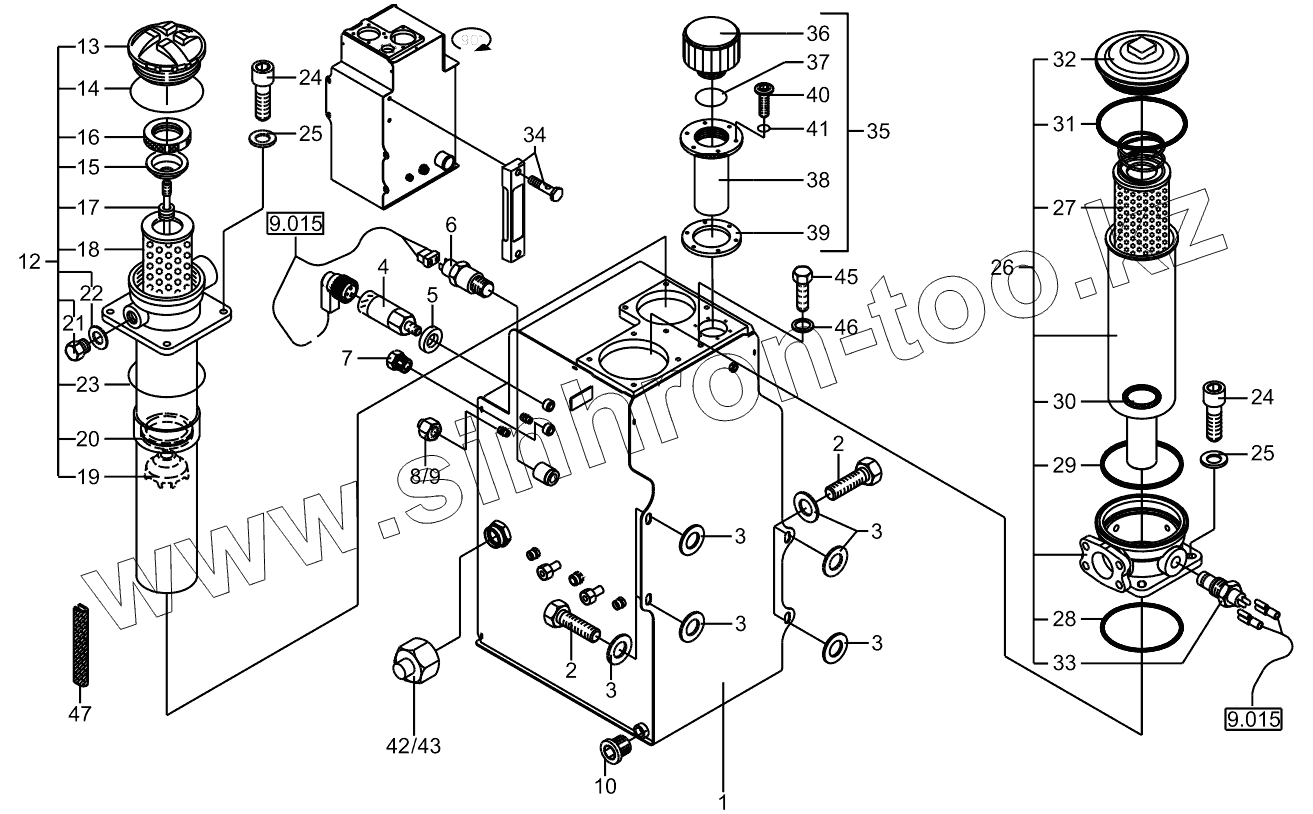

Каталог запасных частей к технике: RM-Terex TL-310. Oil Tank Old Version
1
2
2
3
3
3
3
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
22
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6458013001 | Oeltank Kpl. | |
| 2 | 1008707829 | Hexagon Bolt | |
| 3 | 1343707061 | Washer | |
| 4 | 5091661776 | Oil Lever Sensor | |
| 5 | 1636815355 | Seal Ring | |
| 6 | 5755628562 | Temperature Adjust | |
| 7 | 1912060103 | Screw Connector | |
| 8 | 1912060354 | Plug | |
| 9 | 1911060154 | Connection Nut | |
| 10 | 1912060107 | Screw Connector | |
| 12 | 5003660860 | Suction Filter | |
| 13 | 5003599930 | Cover | |
| 14 | 1970956553 | O-Ring | |
| 15 | 5003660399 | Bracket Ring | |
| 16 | 5003660400 | Rubber Grommet | |
| 17 | 5003659193 | Seal | |
| 18 | 5003660861 | Hyd Filter | |
| 19 | 5003599970 | Valve Taper | |
| 20 | 5003599980 | Seal | |
| 22 | 1636815155 | Seal Ring | |
| 23 | 1970956854 | O Ring | |
| 24 | 1045707923 | Pan Head Screw | |
| 25 | 1290707020 | Washer 10.5 | |
| 26 | 5380660886 | Return Filter | |
| 27 | 5380665034 | Filter Element | |
| 28 | 5380665035 | O-Ring | |
| 29 | 5380665014 | O Ring | |
| 30 | 5380665036 | O-Ring | |
| 31 | 5380665023 | O-Ring | |
| 32 | 5380665038 | Cover | |
| 33 | 5380665037 | Pressure Switch | |
| 34 | 5368632244 | Oil Gauge | |
| 35 | 5003650362 | Filling And Ventil | |
| 36 | 5003730010 | Ventilation Filter | |
| 37 | 3600087875 | O-Ring | |
| 38 | 5003650363 | Sieve Element | |
| 39 | 5003650371 | Flat Seal | |
| 40 | 5364656143 | Bolt | |
| 41 | 5003650372 | O-Ring | |
| 42 | 1912060361 | Plug | |
| 43 | 1911060161 | Union Nut | |
| 45 | 1008707423 | Screw | |
| 46 | 1636815352 | Seal Ring | |
| 47 | 5354600000 | Edge Protection |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
