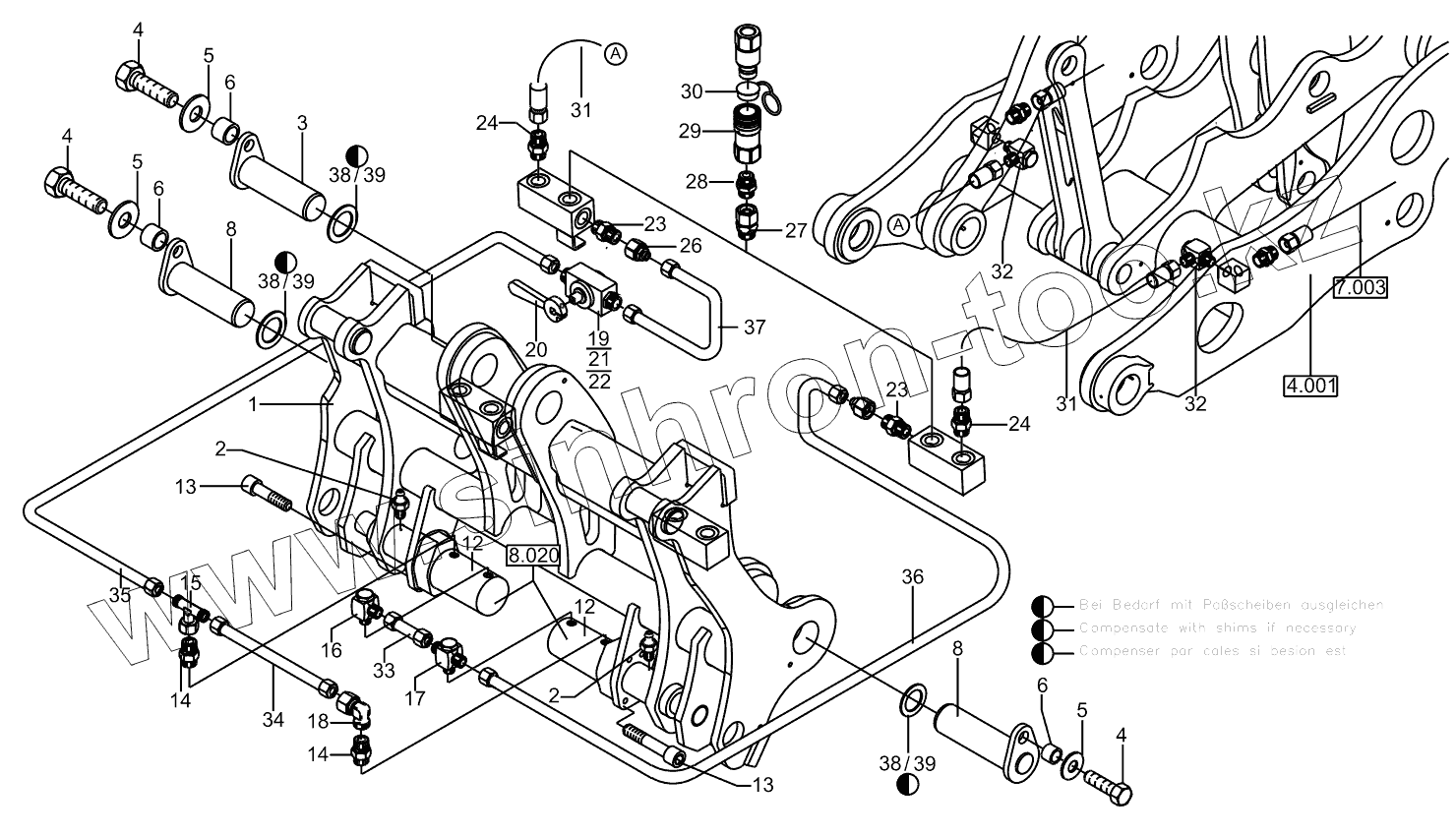

Каталог запасных частей к технике: RM-Terex TL-310. Hydraulic Quick Attach System
1
2
2
3
4
4
4
5
5
5
6
6
6
8
8
12
12
13
13
14
14
15
16
17
18
19
20
21
22
23
23
24
24
26
27
28
29
30
31
31
32
32
33
34
35
36
37
38
38
38
39
39
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6458214003 | Quick-Coupl Frame | |
| 2 | 1607003006 | Grease Nipple | |
| 3 | 0458021037 | Pin Cpl. | |
| 4 | 1008707829 | Hexagon Bolt | |
| 5 | 1343707061 | Washer | |
| 6 | 0156029033 | Spacer | |
| 8 | 0458002010 | Pin | |
| 12 | 6502116100 | Hydraulic Cylinder | |
| 13 | 1045707630 | Bolt | |
| 14 | 1915060555 | Fitting | |
| 15 | 1919060151 | Fitting | |
| 16 | 1921060154 | Fitting | |
| 17 | 1920000103 | Fitting | |
| 18 | 1924060151 | Fitting | |
| 19 | 5001609600 | Ball Valve | |
| 20 | 5001207171 | Key | |
| 21 | 1008707213 | Hexagon Bolt | |
| 22 | 1210707009 | Nut | |
| 23 | 1915060669 | Screw-In Socket | |
| 24 | 1915060578 | Straight Fitting G | |
| 26 | 1934060161 | Reducing Fitting | |
| 27 | 1938060369 | Fitting | |
| 28 | 1915060479 | Straight Fitting G | |
| 29 | 5260301280 | Coupling Sleeve | |
| 30 | 5260301281 | Dust Cap | |
| 31 | 4470139493 | Hose 4sp | |
| 32 | 1926060172 | Fitting | |
| 33 | 0455214022 | Tubing | |
| 34 | 0455214023 | Tubing | |
| 35 | 0458214030 | Tubing | |
| 36 | 0458214031 | Tubing | |
| 37 | 0458214032 | Tubing | |
| 38 | 1309412135 | Washer | |
| 39 | 1309412418 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
