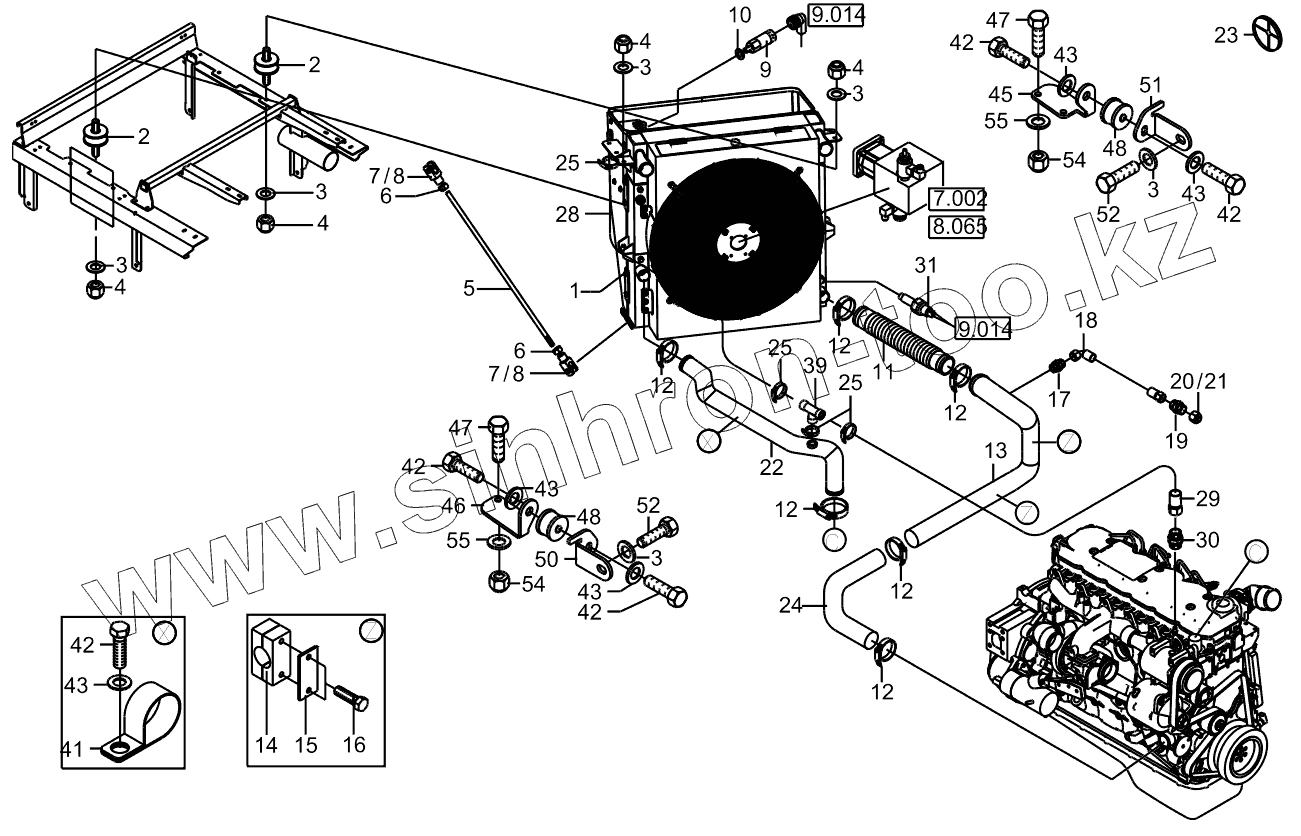

Каталог запасных частей к технике: RM-Terex TL-310. Combined Oil Cooler >Tl03100101
1
2
2
3
3
3
3
3
3
4
4
4
4
5
6
6
7
7
8
8
9
10
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
28
29
30
31
39
41
42
42
42
42
42
43
43
43
43
43
45
46
47
47
48
48
50
51
52
52
54
54
55
55
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5010672049 | Cooler | |
| 2 | 5566650007 | Rubber & Metal Blo | |
| 3 | 1343707061 | Washer | |
| 4 | 1212251014 | Nut | |
| 5 | 6458015055 | Threaded Rod | |
| 6 | 1210707011 | Nut | |
| 7 | 1796707006 | Clevis | |
| 8 | 5509169300 | Pin | |
| 9 | 5091661774 | Cooling Water Sens | |
| 10 | 1636815355 | Seal Ring | |
| 11 | 5803655439 | Hose | |
| 12 | 5660201006 | Hose Clip | |
| 13 | 0456015150 | Tube | |
| 14 | 5660199646 | Hose Clip | |
| 15 | 5660200160 | Cover Plate | |
| 16 | 1007707714 | Screw | |
| 17 | 1915060660 | Straight Fitting G | |
| 18 | 4260081374 | Hose | |
| 19 | 1915060856 | Fitting | |
| 20 | 1912060356 | Plug | |
| 21 | 1911060156 | Union Nut | |
| 22 | 5803655682 | Hose | |
| 23 | 5653095597 | Membrane Reservoir | |
| 24 | 5803655580 | Hose | |
| 25 | 5603320320 | Hose Clip | |
| 28 | 0456015146 | Water Hose | |
| 29 | 0456015145 | Water Hose | |
| 30 | 1915060255 | Fitting | |
| 31 | 5755628562 | Temperature Adjust | |
| 39 | 5821661017 | Hose Nozzle | |
| 41 | 5000210460 | Hose Clip | |
| 42 | 1008707423 | Screw | |
| 43 | 1343707059 | Washer | |
| 45 | 0456376004 | Bracket | |
| 46 | 0456376005 | Bracket | |
| 47 | 1008707618 | Hexagon Bolt | |
| 48 | 5101290966 | Mounting | |
| 50 | 0456376006 | Bracket | |
| 51 | 0456376007 | Bracket | |
| 52 | 1008707529 | Hexagon Bolt | |
| 54 | 1212251011 | Nut | |
| 55 | 1290707018 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
