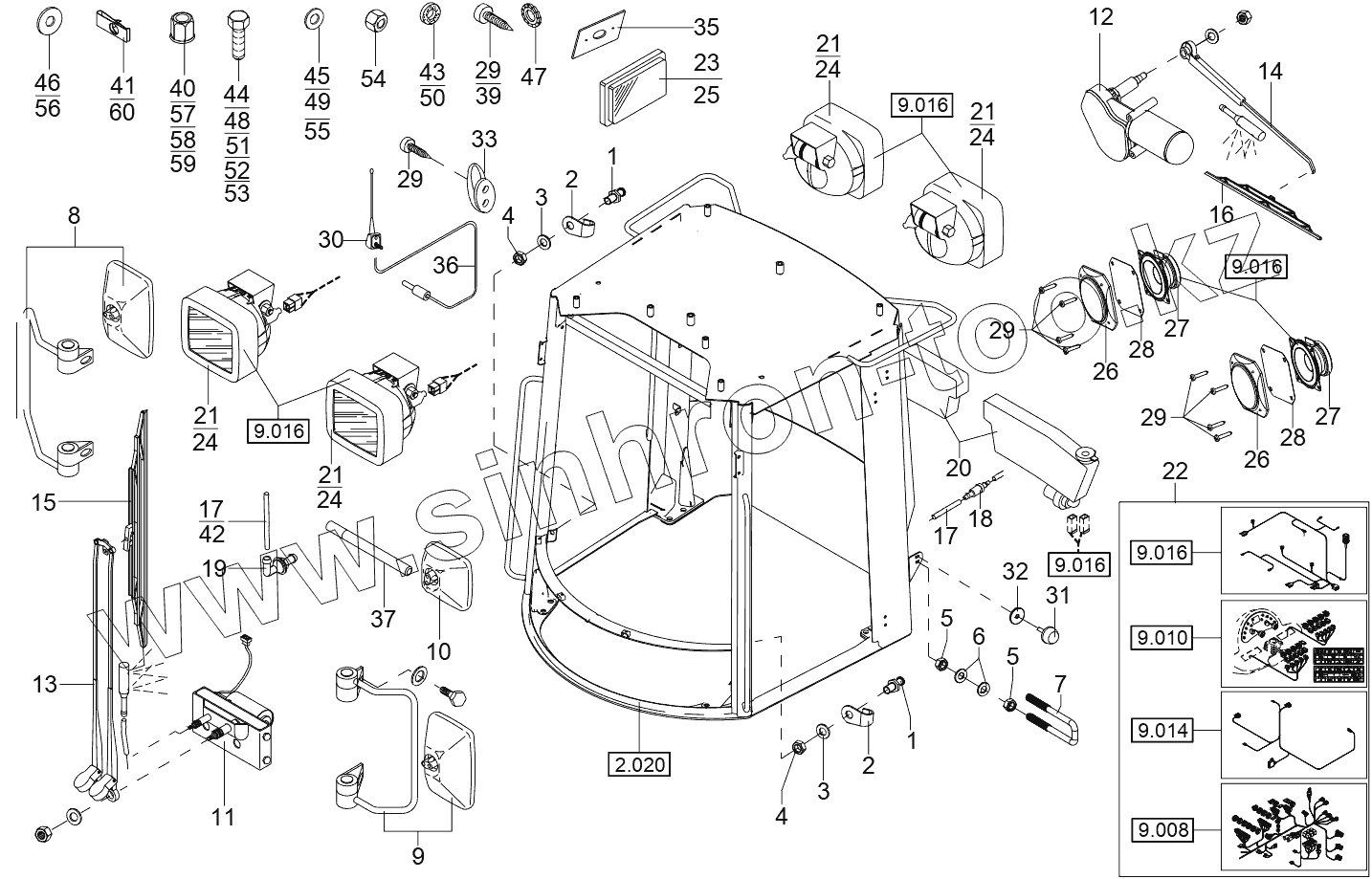

Каталог запасных частей к технике: RM-Terex TL-260. OPERATOR’S CAB - EQUIPMENT
1
1
2
2
3
3
4
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
21
21
21
22
23
24
24
24
24
25
26
26
27
27
28
28
29
29
29
29
30
31
32
33
35
36
37
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5388661473 | Cotter | |
| 2 | 5388661433 | Latch Cover | |
| 3 | 1290707022 | Washer | |
| 4 | 5388662090 | Nut | |
| 5 | 1210707011 | Nut | |
| 6 | 1290707018 | Washer | |
| 7 | 5388665135 | Lever | |
| 8 | 5388665297 | Mirror Bracket | |
| 9 | 5388665298 | Mirror Bracket | |
| 10 | 5388665299 | Interior Mirror | |
| 11 | 5388665300 | Wiper Motor | |
| 12 | 5388665301 | Wiper Motor | |
| 13 | 5388665294 | Wiper Arm | |
| 14 | 5388665302 | Wiper Arm | |
| 15 | 5388665010 | Wiper Blade | |
| 16 | 5388665011 | Wiper Blade | |
| 17 | 5388661449 | Hose | |
| 18 | 5388662096 | Return Valve | |
| 19 | 5388662257 | Nozzle | |
| 20 | 5388665304 | Water Reservoir | |
| 21 | 5388665305 | Working Floodlights | |
| 22 | 5388665599 | CABLE SET | |
| 23 | 5388662690 | Interior Light | |
| 24 | 1813000040 | Light Bulb | |
| 25 | 1814000008 | Bulb | |
| 26 | 5388662575 | Loudspeaker Cover | |
| 27 | 5388662550 | Loudspeaker | |
| 28 | 5388662814 | Dust Protection | |
| 29 | 5388662945 | Bolt | |
| 30 | 5388665182 | Aerial | |
| 31 | 5388661476 | Rubber Buffer | |
| 32 | 5388661442 | Washer | |
| 33 | 5354244600 | Clothing Hook | |
| 35 | 5388665164 | Plate | |
| 36 | 5388665290 | Cable | |
| 37 | 5388665328 | Mirror Bracket | |
| 39 | 5388662796 | Bolt | |
| 40 | 5388665218 | Nut | |
| 41 | 5388662687 | Clip | |
| 42 | 5388665576 | Pipe | |
| 43 | 5388665327 | Washer | |
| 44 | 1008707912 | Hexagon Bolt | |
| 45 | 5388665425 | WASHER | |
| 46 | 1307707014 | Washer | |
| 47 | 5388665266 | Crown Gear | |
| 48 | 1008707318 | Hexagon Bolt | |
| 49 | 1290707018 | Washer | |
| 50 | 5388665189 | Plate | |
| 51 | 1008707618 | Hexagon Bolt | |
| 52 | 5388665577 | Bolt | |
| 53 | 5388665574 | Bolt | |
| 54 | 5388662749 | Nut | |
| 55 | 1290707022 | Washer | |
| 56 | 5388662431 | Washer | |
| 57 | 5388665578 | Rivet Nut | |
| 58 | 5388665579 | Rivet Nut | |
| 59 | 5388665580 | Rivet Nut | |
| 60 | 5388662515 | Clip |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
