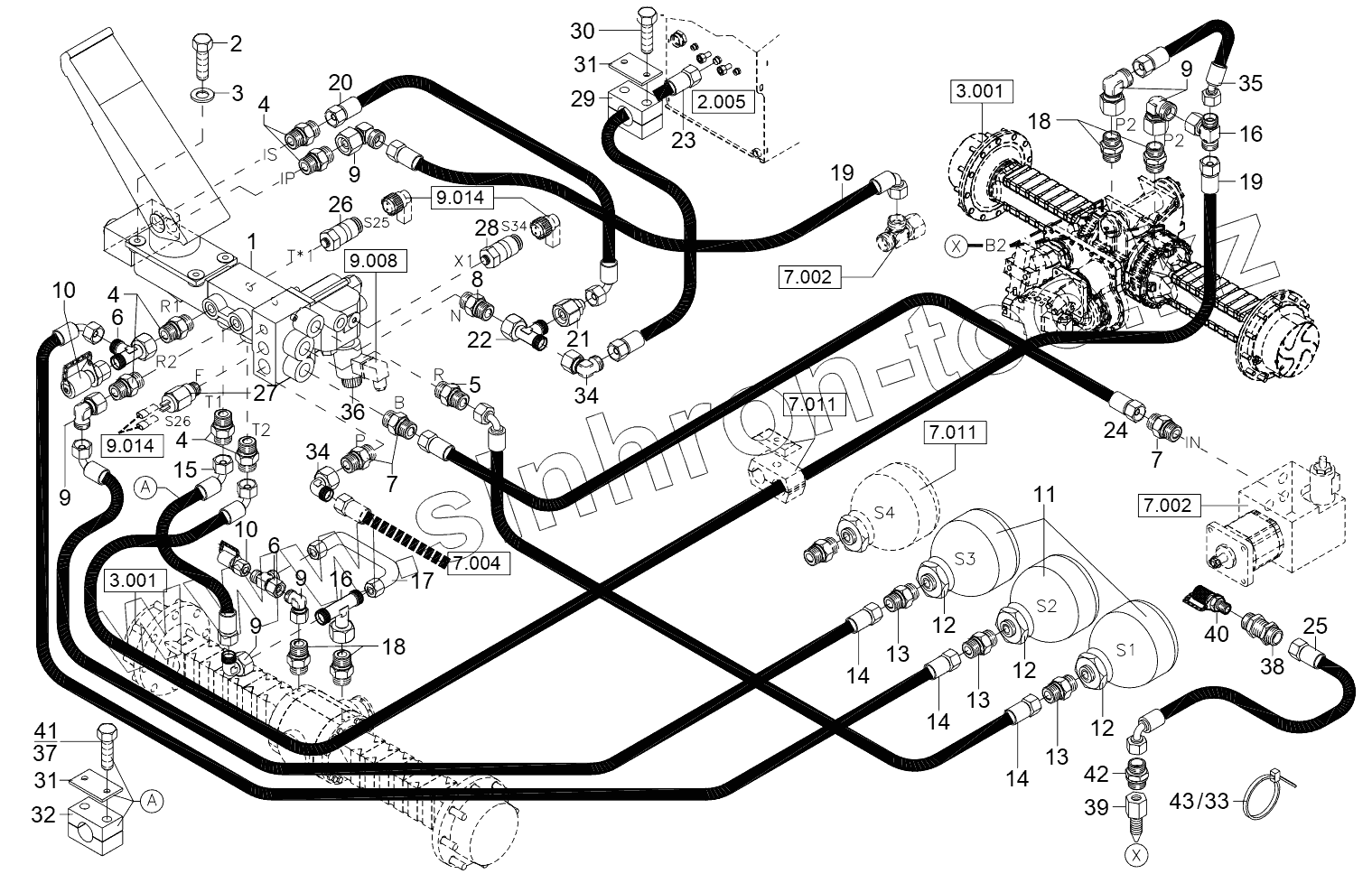

Каталог запасных частей к технике: RM-Terex TL-260. HYDRAULIC INSTALLATION - SERVICE BRAKE
1
2
3
4
4
4
5
6
6
7
7
8
9
9
9
9
9
10
10
11
12
12
12
13
13
13
14
14
14
15
16
16
17
18
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
31
32
33
34
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5719660092 | Breaking Valve | |
| 2 | 1008707318 | Hexagon Bolt | |
| 3 | 1290707018 | Washer | |
| 4 | 1915060660 | Straight Fitting G | |
| 5 | 1915060561 | Straight Fitting G | |
| 6 | 1919060353 | Fitting Elsd | |
| 7 | 1915060264 | Fitting | |
| 8 | 1915060563 | Straight Fitting G | |
| 9 | 1924060153 | Fitting Ewsd | |
| 10 | 5066234210 | Meter Connection | |
| 11 | 5385657585 | Hydr.Accum.Un3164 | |
| 12 | 5385657587 | Nut | |
| 13 | 1915060562 | Straight Fitting G | |
| 14 | 4260070374 | Pipe | |
| 15 | 4260318374 | HOSE | |
| 16 | 1919060153 | Fitting | |
| 17 | 0457028010 | TUBING | |
| 18 | 1915060789 | Straight Fitting G | |
| 19 | 4260243374 | Hose | |
| 20 | 4260054374 | Hose | |
| 21 | 1934060159 | Fitting Redsd | |
| 22 | 1919060354 | Fitting Elsd | |
| 23 | 4112240360 | HOSE | |
| 24 | 4262300360 | Hose | |
| 25 | 4506180351 | Hose | |
| 26 | 5050650831 | Pressure Switch | |
| 27 | 5050143219 | Pressure Switch | |
| 28 | 5050650832 | Pressure Switch | |
| 29 | 5660199620 | Hose Clip | |
| 30 | 1007707814 | Bolt | |
| 31 | 5660200130 | Cover | |
| 32 | 5660199784 | Hose Clip | |
| 33 | 5653093560 | Binder | |
| 34 | 1924060154 | Fitting Ewsd | |
| 35 | 4260080367 | Hose | |
| 36 | 5719661033 | Solenoid Valve | |
| 37 | 1007707014 | Screw | |
| 38 | 1913060151 | Fitting | |
| 39 | 0456510105 | Bolt | |
| 40 | 5066234200 | Meter Connection | |
| 41 | 1007707214 | Hexagon Bolt | |
| 42 | 1915060555 | Fitting | |
| 43 | 5350650280 | Cable Binder |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
