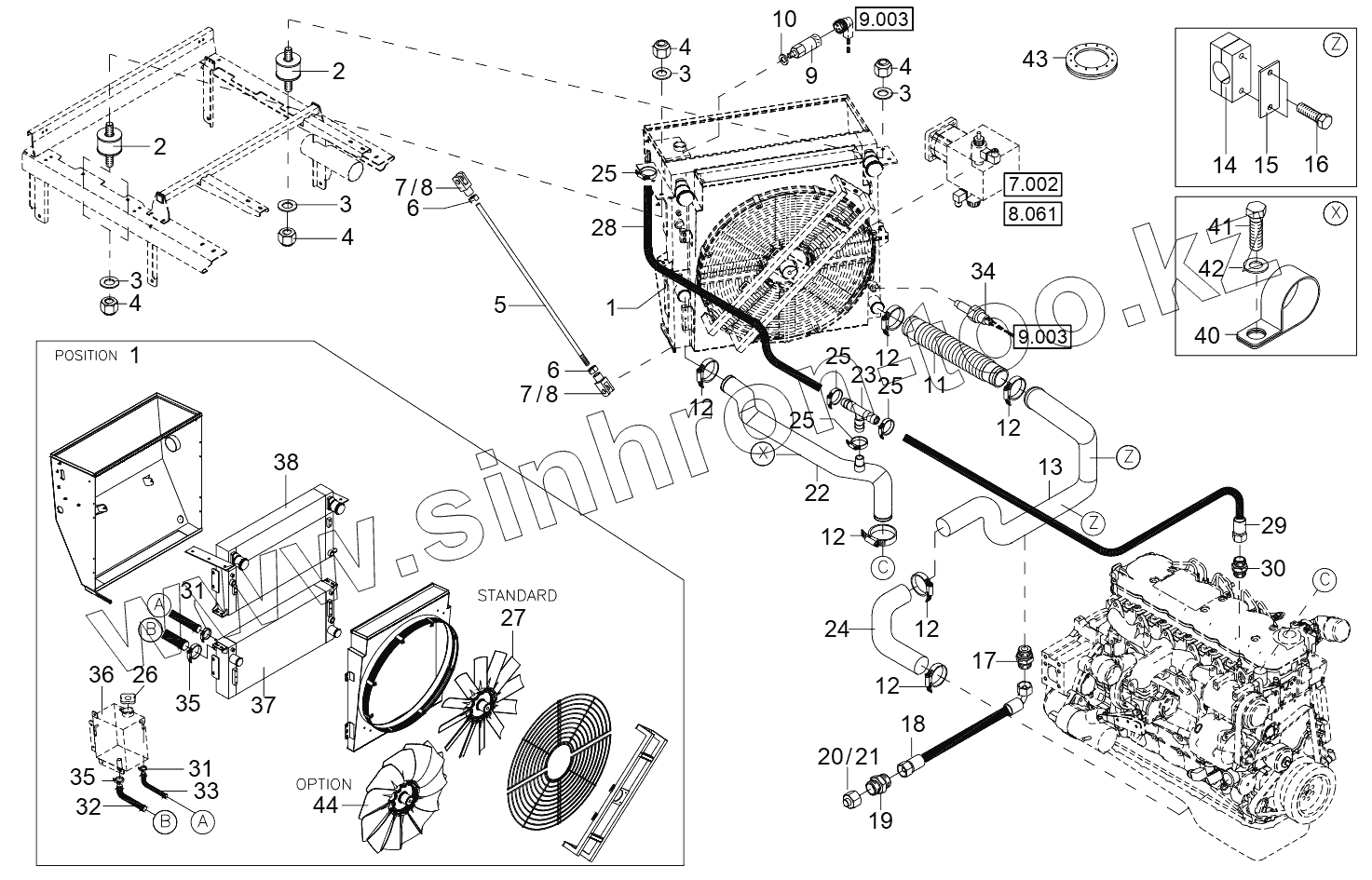

Каталог запасных частей к технике: RM-Terex TL-260. COMBINED OIL COOLER
1
1
2
2
3
3
3
3
4
4
4
4
5
6
6
7
7
8
8
9
10
11
12
12
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
25
25
26
27
28
29
30
31
31
32
33
34
35
35
36
37
38
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5010672009 | OIL-WATER COOLER | |
| 2 | 5566650007 | Rubber & Metal Blo | |
| 3 | 1343707061 | Washer | |
| 4 | 1212251014 | Nut | |
| 5 | 6457015055 | THREADED ROD | |
| 6 | 1210707011 | Nut | |
| 7 | 1796707006 | Clevis | |
| 8 | 5509169300 | Pin | |
| 9 | 5091661774 | Cooling Water Sens | |
| 10 | 1636815355 | Seal Ring | |
| 11 | 5803655438 | HOSE | |
| 12 | 5660201006 | Hose Clip | |
| 13 | 0456015150 | Tube | |
| 14 | 5660199646 | Hose Clip | |
| 15 | 5660200160 | Cover Plate | |
| 16 | 1007707714 | Screw | |
| 17 | 1915060660 | Straight Fitting G | |
| 18 | 4260060374 | HOSE | |
| 19 | 1915060856 | Fitting | |
| 20 | 1912060356 | Plug | |
| 21 | 1911060156 | Union Nut | |
| 22 | 5803655598 | HOSE | |
| 23 | 5821661017 | Hose Nozzle | |
| 24 | 5803655580 | Hose | |
| 25 | 5603320320 | Hose Clip | |
| 26 | 5010663086 | COVER | |
| 27 | 5010663084 | FAN | |
| 28 | 0456015146 | Water Hose | |
| 29 | 0456015145 | Water Hose | |
| 30 | 1915060255 | Fitting | |
| 31 | 5603320315 | Clamp | |
| 32 | 5010663088 | HOSE | |
| 33 | 5010663087 | HOSE | |
| 34 | 5755628562 | Temperature Adjust | |
| 35 | 5660199200 | HOSE CLIP | |
| 36 | 5010663085 | RESERVOIR | |
| 37 | 5010663083 | WATER RADIATOR | |
| 38 | 5010663082 | OIL COOLER | |
| 40 | 5000210460 | Hose Clip | |
| 41 | 1008707423 | Screw | |
| 42 | 1343707059 | Washer | |
| 43 | 5653095597 | Membrane Reservoir | |
| 44 | 5081657515 | FAN OPTION |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
