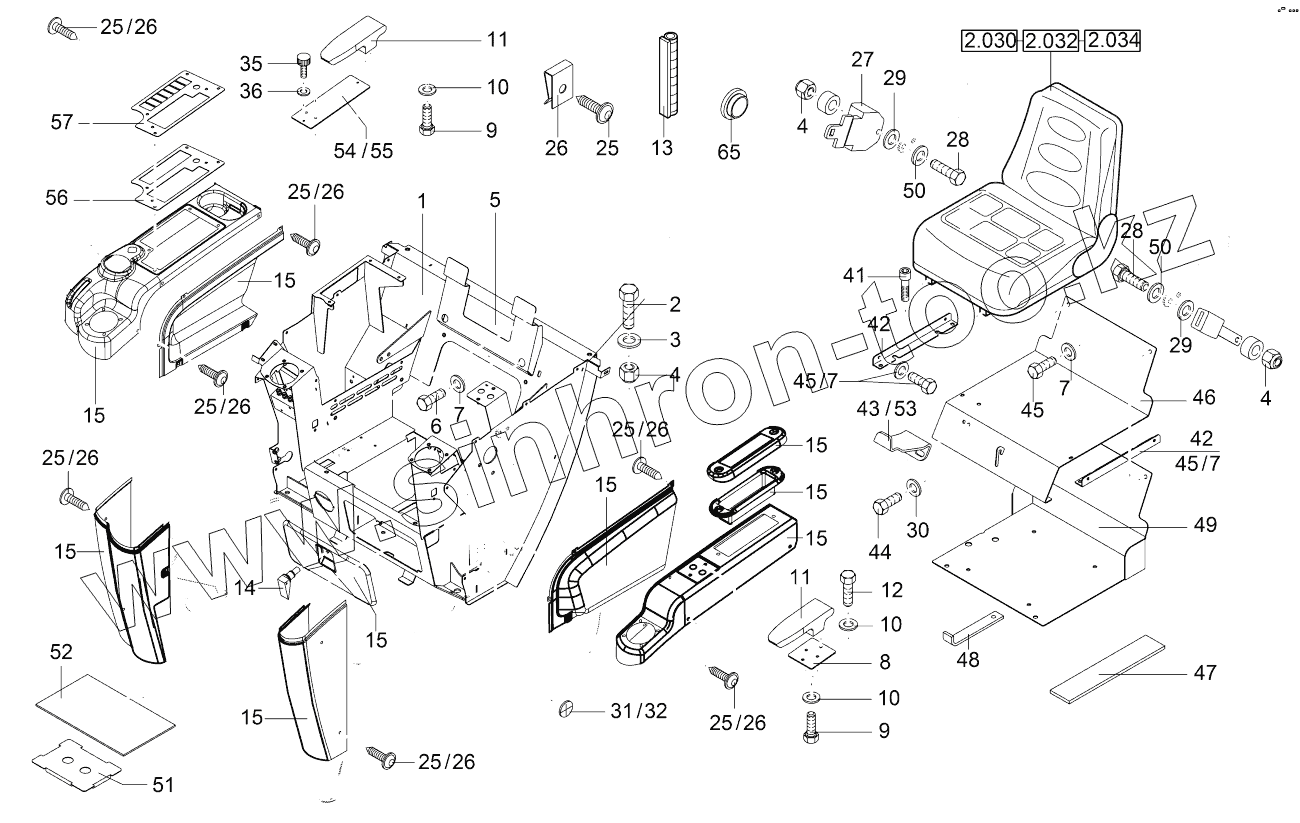

Каталог запасных частей к технике: RM-Terex TC-50. Seat console
1
2
3
4
4
4
5
6
7
7
7
7
8
9
9
10
10
10
11
11
12
13
14
15
15
15
15
15
15
15
15
15
25
25
25
25
25
25
25
25
26
26
26
26
26
26
26
26
27
28
28
29
29
30
31
32
35
36
41
42
42
43
44
45
45
45
46
47
48
49
50
50
51
52
53
54
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 6216027003 | Seatconsole | |
| 2 | 1008707424 | Bolt | |
| 3 | 1343707059 | Washer | |
| 4 | 1212251013 | Nut | |
| 5 | 6216027081 | Sheet | |
| 6 | 1008707318 | Hexagon Bolt | |
| 7 | 1343707057 | Washer | |
| 8 | 6216027088 | Sheet | |
| 9 | 1008707912 | Hexagon Bolt | |
| 10 | 1290707014 | Washer | |
| 11 | 5376014970 | Arm Rest | |
| 12 | 1008707513 | Hexagon Bolt | |
| 13 | 5354660515 | Seal | |
| 14 | 5354606001 | Locking | |
| 15 | 6216027190 | Abs-Repair Kit | |
| 25 | 1069707909 | Bolt | |
| 26 | 5526660008 | Nut | |
| 27 | 5305661778 | Seat Belt | |
| 28 | 1008707124 | Hexagon Bolt | |
| 29 | 1290707020 | Washer 10.5 | |
| 30 | 1343707055 | Washer | |
| 31 | 5653095594 | Membrane Reservoir | |
| 32 | 5653095597 | Membrane Reservoir | |
| 35 | 5821662038 | Bolt | |
| 36 | 5821662091 | Washer | |
| 41 | 1045707018 | Screw | |
| 42 | 6216027064 | Bracket Angle | |
| 43 | 6216027087 | Arrester | |
| 44 | 1008707213 | Hexagon Bolt | |
| 45 | 1008707318 | Hexagon Bolt | |
| 46 | 6216027061 | Seat Sheet | |
| 47 | 5354640120 | Neoprene Stripe | |
| 48 | 5305655440 | Stop | |
| 49 | 6216027080 | Sheet | |
| 50 | 1343707059 | Washer | |
| 51 | 6216027091 | Cap | |
| 52 | 0216027092 | Rubber Mat | |
| 53 | 6216027095 | Stop | |
| 54 | 6216027086 | Cover | |
| 55 | 6216027186 | Cover | |
| 56 | 6216027085 | Dash Assy | |
| 57 | 6216027185 | Dashboard | |
| 58 | 5558248951 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
