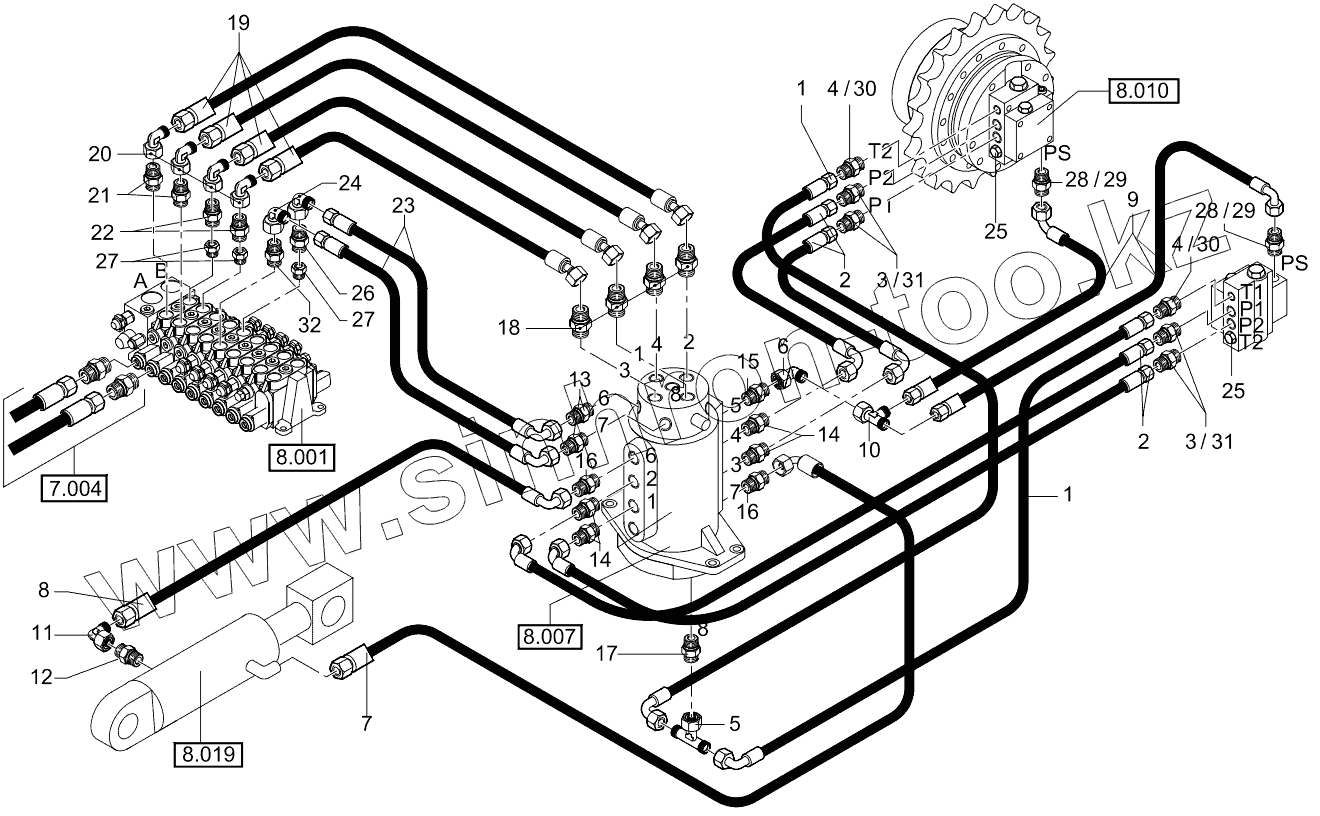

Каталог запасных частей к технике: RM-Terex TC-50. Hydraulic Installation - Drive
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
6
6
6
7
7
7
8
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
21
22
23
24
25
25
26
27
27
28
28
29
29
30
30
31
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4260130374 | Hose | |
| 2 | 4266122376 | Hose | |
| 3 | 1915060265 | Straight Fitting G | |
| 4 | 1915060261 | Fitting | |
| 5 | 1919060153 | Fitting | |
| 6 | 1924060151 | Fitting | |
| 7 | 4158120373 | Hose | |
| 8 | 4158150373 | Hose | |
| 9 | 4256152371 | Hose | |
| 10 | 1919060351 | Fitting | |
| 11 | 1924060152 | Fitting | |
| 12 | 1915060359 | Fitting | |
| 13 | 1915060261 | Fitting | |
| 14 | 1915060265 | Straight Fitting G | |
| 15 | 1915060256 | Fitting | |
| 16 | 1915060258 | Fitting | |
| 17 | 1915060260 | Straight Fitting G | |
| 18 | 1915060264 | Fitting | |
| 19 | 4912100368 | Pipe | |
| 20 | 1924060154 | Fitting Ewsd | |
| 21 | 1915060264 | Fitting | |
| 22 | 1915060263 | Straight Fitting G | |
| 23 | 4190119374 | Hose | |
| 24 | 1924060153 | Fitting Ewsd | |
| 25 | 1912060452 | Plug | |
| 26 | 1915060261 | Fitting | |
| 27 | 1934060372 | Fitting Redsd | |
| 28 | 1915060255 | Fitting | |
| 29 | 1971956216 | O-Ring | |
| 30 | 1970956618 | O-Ring | |
| 31 | 1970956719 | O-Ring | |
| 32 | 1915060262 | Straight Fitting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
