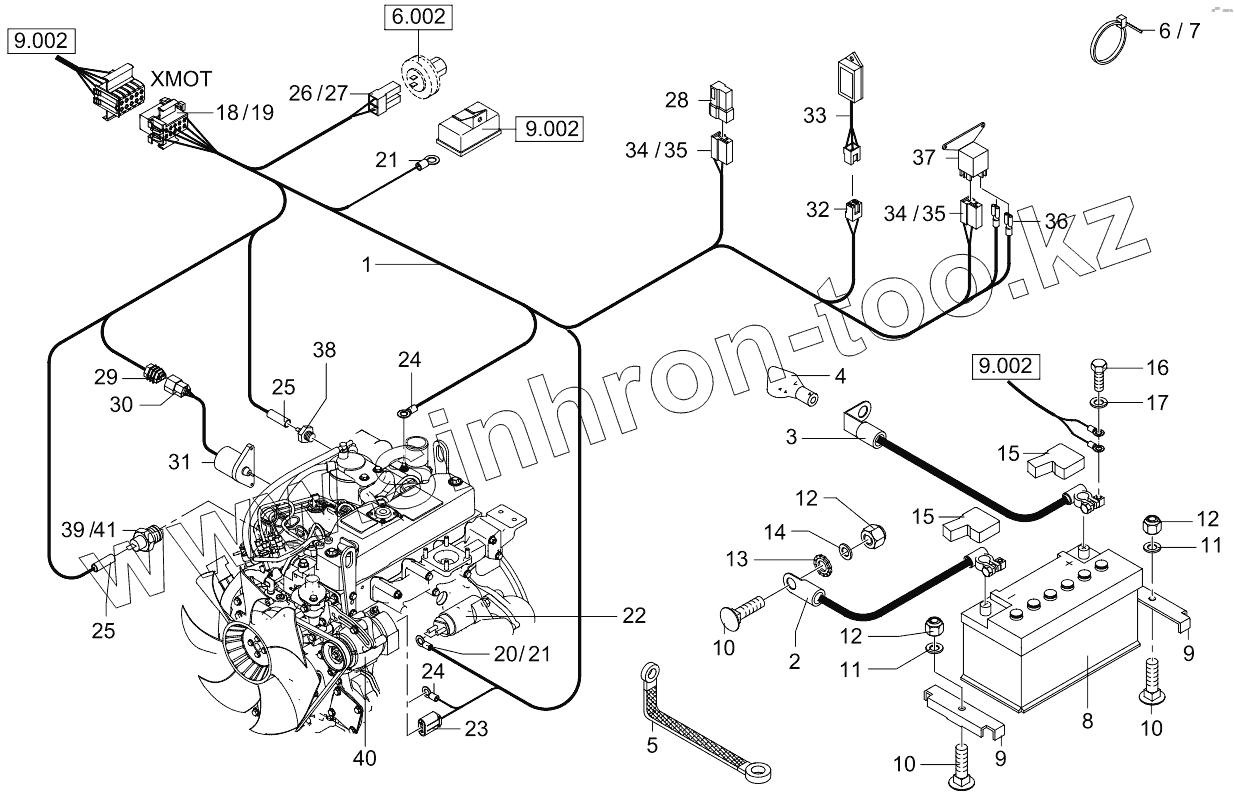

Каталог запасных частей к технике: RM-Terex TC-50. Electrical Installation - Engine >Tc00500353
1
2
3
4
5
6
7
8
9
9
10
10
10
11
11
12
12
12
13
14
15
15
16
17
18
19
20
21
21
22
23
24
24
25
25
26
27
28
29
30
31
33
35
35
37
38
39
40
41
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 0219507080 | Wire Harness | |
| 2 | 0188407012 | Battery Cable | |
| 3 | 0188407011 | Cable (Battery) | |
| 4 | 5653095657 | Cover | |
| 5 | 5653246930 | Earth Cable | |
| 6 | 5350650280 | Cable Binder | |
| 7 | 5653093560 | Binder | |
| 8 | 5273600002 | Battery | |
| 9 | 0187505560 | Clip | |
| 10 | 1027707818 | Truss-Head Screw | |
| 11 | 1343707057 | Washer | |
| 12 | 1212251011 | Nut | |
| 13 | 1327707018 | Washer | |
| 14 | 1290707018 | Washer | |
| 15 | 5050580711 | Cover Battery | |
| 16 | 1008707912 | Hexagon Bolt | |
| 17 | 1290707014 | Washer | |
| 18 | 5350249691 | Flat Plug | |
| 19 | 5350249552 | Element | |
| 20 | 5350249597 | Cable Connector | |
| 21 | 5350249590 | Cable Connector | |
| 22 | 5474130042 | Starter | |
| 23 | 5474030007 | Plug Housing | |
| 24 | 5350249600 | Cable Connector | |
| 25 | 5350249511 | Attachable Sleeve | |
| 26 | 5350249576 | Housing | |
| 27 | 5350249579 | Sleeve | |
| 28 | 5474130080 | Diode | |
| 29 | 5527658962 | Plug | |
| 30 | 5527662040 | Plug | |
| 31 | 5474130029 | Shut Off | |
| 33 | 5474130082 | Timer | |
| 35 | 5350246815 | Flat Plug | |
| 37 | 5474130081 | Relay | |
| 38 | 5474130079 | Switch | |
| 39 | 5474130026 | Switch | |
| 40 | 5474130045 | Generator | |
| 41 | 5474130027 | Seal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
