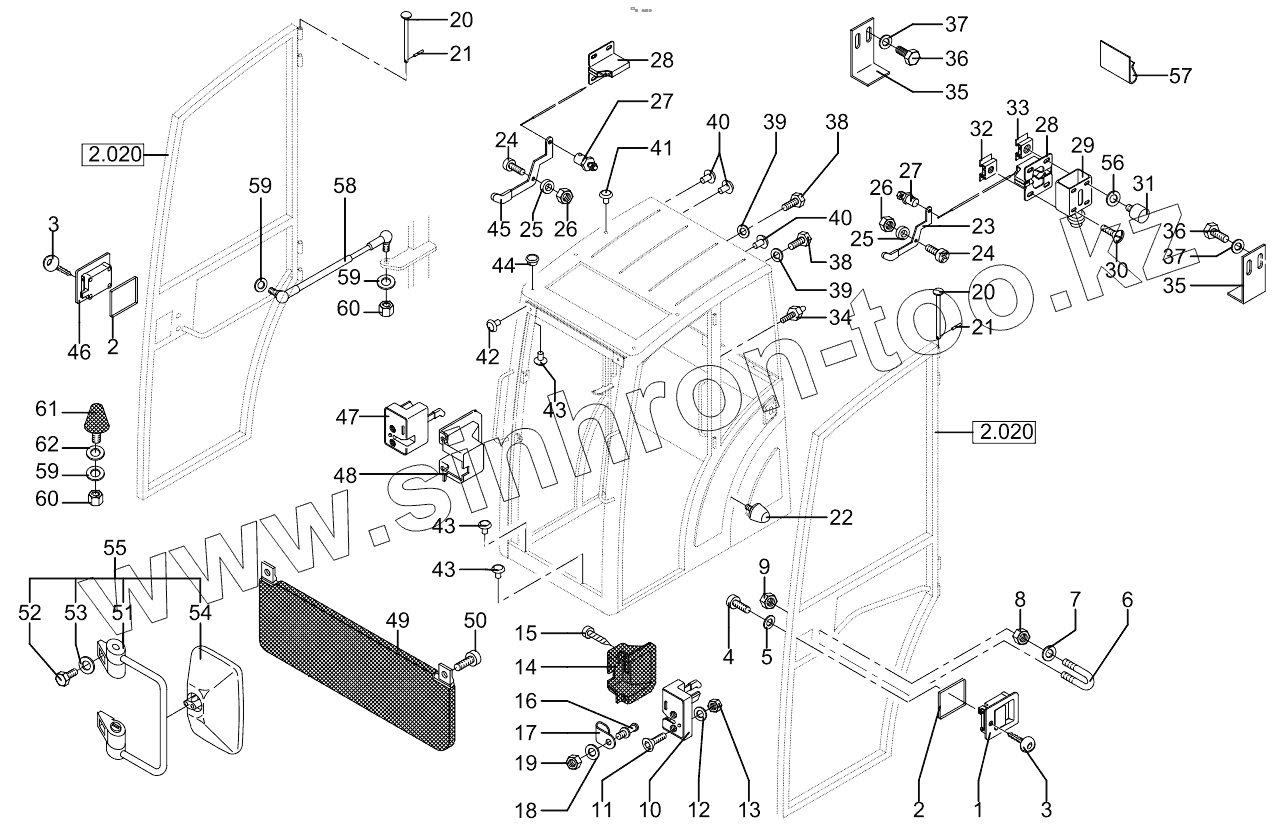

Каталог запасных частей к технике: RM-Terex TC-48. Operator's Cab - Equipment
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
21
21
22
23
24
24
25
25
26
26
27
27
28
28
29
30
31
32
33
34
35
35
36
36
37
37
38
38
39
39
40
40
41
42
43
43
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59
59
60
60
61
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5354604400 | Handle Left | |
| 2 | 5354604401 | Seal Ring | |
| 3 | 5050650259 | Ignition Key | |
| 4 | 1008707612 | Screw | |
| 5 | 1290707014 | Washer | |
| 6 | 5388662489 | Clip | |
| 7 | 1290707018 | Washer | |
| 8 | 1210707011 | Nut | |
| 9 | 1212251011 | Nut | |
| 10 | 5388661474 | Left Door Lock | |
| 11 | 1062707019 | Bolt | |
| 12 | 1290707018 | Washer | |
| 13 | 1210707011 | Nut | |
| 14 | 5388662648 | Lh Cover | |
| 15 | 5388662717 | Screw | |
| 16 | 5388661473 | Cotter | |
| 17 | 5388661433 | Latch Cover | |
| 18 | 1290707022 | Washer | |
| 19 | 5388662090 | Nut | |
| 20 | 5388661431 | Hinge Pin | |
| 21 | 5388661432 | Spring Pin | |
| 22 | 5388661476 | Rubber Buffer | |
| 23 | 5388662692 | Handle Left | |
| 24 | 5388662282 | Screws | |
| 25 | 5388662071 | Washer | |
| 26 | 1212251009 | Hexagon Nut | |
| 27 | 5388662163 | Clip | |
| 28 | 5388662143 | Door Locking | |
| 29 | 5388662222 | Housing | |
| 30 | 5388662776 | Bolt | |
| 31 | 5388662465 | Bumper | |
| 32 | 5388662284 | Nut | |
| 33 | 5388662599 | Nut | |
| 34 | 1607003006 | Grease Nipple | |
| 35 | 5388662593 | Angle Plate | |
| 36 | 1008707018 | Hexagon Bolt | |
| 37 | 1290707018 | Washer | |
| 38 | 1008707018 | Hexagon Bolt | |
| 39 | 1290707018 | Washer | |
| 40 | 5388662057 | Plug | |
| 41 | 5388662469 | Cover | |
| 42 | 5388662057 | Plug | |
| 43 | 5388661482 | Stop | |
| 44 | 5388662821 | Cap | |
| 45 | 5388662692 | Handle Left | |
| 46 | 5388662109 | Handle Right | |
| 47 | 5388661477 | Right Door Lock | |
| 48 | 5388662650 | Cover Right | |
| 49 | 5388661451 | Sun Visor | |
| 50 | 1045707609 | Pan Head Screw | |
| 51 | 5388661453 | Mirror Arm | |
| 52 | 1008707018 | Hexagon Bolt | |
| 53 | 1290707018 | Washer | |
| 54 | 5388661484 | Mirror | |
| 55 | 5388662087 | Mirror | |
| 56 | 5388662071 | Washer | |
| 57 | 5388662893 | Cable | |
| 58 | 5388662711 | Gas Strut | |
| 59 | 1290707018 | Washer | |
| 60 | 1212251011 | Nut | |
| 61 | 5388661476 | Rubber Buffer | |
| 62 | 5388661442 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
