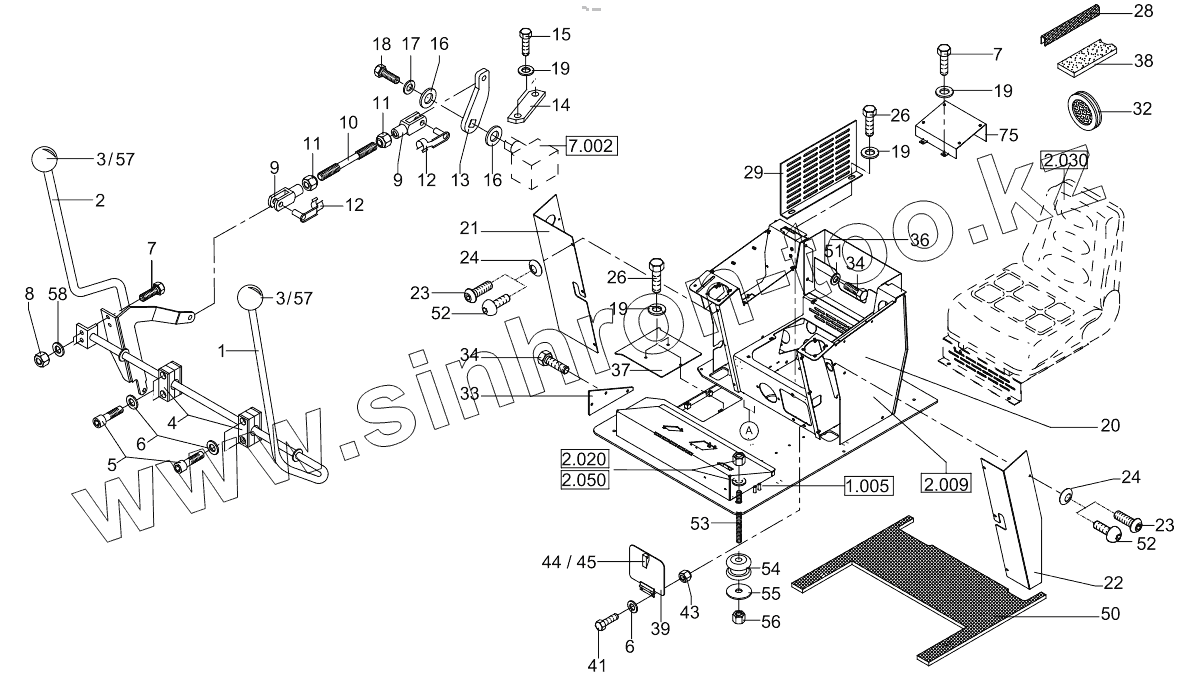

Каталог запасных частей к технике: RM-Terex TC-48. Floor Frame
1
1
2
3
4
5
6
6
7
7
8
9
9
10
11
11
12
12
13
14
15
16
16
17
18
19
19
19
19
20
21
22
23
23
24
24
26
26
29
32
33
34
34
36
37
38
39
41
43
45
50
51
52
52
53
54
55
56
57
57
58
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 0190705552 | Ascent | |
| 2 | 0190705555 | Ascent Stirrup | |
| 3 | 1541930627 | Knob | |
| 4 | 5660199615 | Hose Clip | |
| 5 | 1045707513 | Screw | |
| 6 | 1290707014 | Washer | |
| 7 | 1008707018 | Hexagon Bolt | |
| 8 | 1212251011 | Nut | |
| 9 | 1796707004 | Clevis | |
| 10 | 0187505555 | Rod | |
| 11 | 1210707009 | Nut | |
| 12 | 5509206617 | Pin | |
| 13 | 6187505556 | Lever | |
| 14 | 0212109126 | Clip | |
| 15 | 1008707519 | Screw | |
| 16 | 1290707022 | Washer | |
| 17 | 1307707012 | Washer | |
| 18 | 1008707609 | Hexagon Bolt | |
| 19 | 1343707057 | Washer | |
| 20 | 6192627202 | Bodenplatte Kpl Tc 48 Schw.Zchng. | |
| 21 | 6189090015 | Cover, Right | |
| 22 | 6188827016 | Bracket | |
| 23 | 1068020909 | Bolt | |
| 24 | 1310440012 | Washer | |
| 26 | 1008707318 | Hexagon Bolt | |
| 28 | 5354600010 | Edge Protection | |
| 29 | 6188827042 | Angle | |
| 32 | 5653095594 | Membrane Reservoir | |
| 33 | 6189627059 | Cover | |
| 34 | 1069907817 | Bolt | |
| 36 | 6189627076 | Tray | |
| 37 | 6189627056 | Cover | |
| 38 | 5354640120 | Neoprene Stripe | |
| 39 | 6188827045 | Cover | |
| 41 | 1008707912 | Hexagon Bolt | |
| 43 | 1212251009 | Hexagon Nut | |
| 45 | 5354606001 | Locking | |
| 50 | 0189720010 | Floor Mat | |
| 51 | 1290020018 | Washer | |
| 52 | 1125907909 | Truss-Head Screw,H | |
| 53 | 1366707348 | Threaded Bolt | |
| 54 | 5101290960 | Rubber Bearing | |
| 55 | 5153656312 | Washer | |
| 56 | 1212251015 | Hex Nut | |
| 57 | 5666660925 | Sleeve | |
| 58 | 1290707018 | Washer | |
| 75 | 6192627111 | Bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
