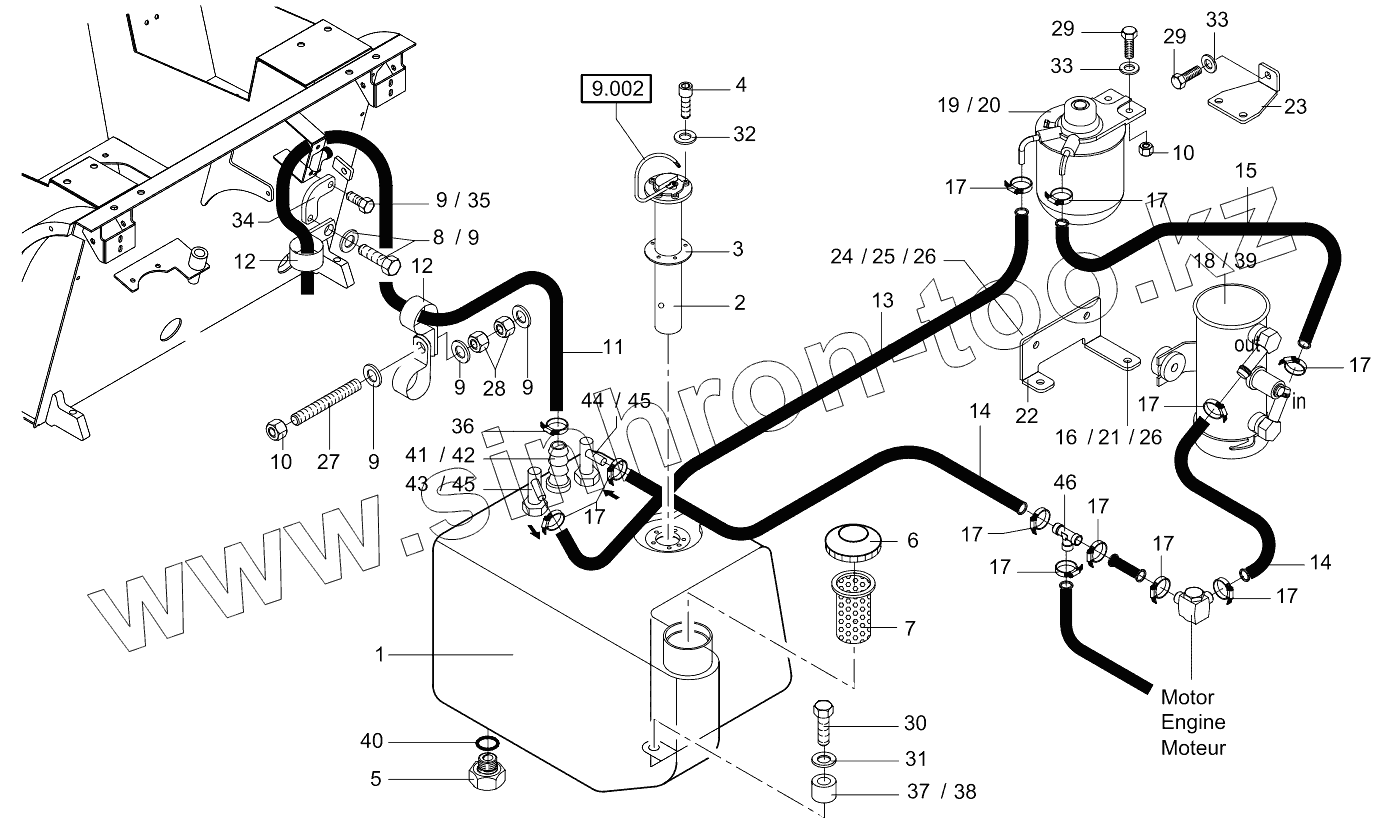

Каталог запасных частей к технике: RM-Terex TC-29. Diesel tank
1
2
3
4
5
6
7
8
9
9
9
9
9
10
10
11
12
12
13
14
14
15
16
17
17
17
17
17
17
17
17
17
17
18
19
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 5267010015 | Fuel Tank | |
| 2 | 5755628629 | Fuel Indicator | |
| 3 | 5755586619 | Gasket | |
| 4 | 1045707909 | Screw | |
| 5 | 5267010041 | Plug | |
| 6 | 5051252637 | Cover | |
| 7 | 5051628035 | Inlet Strainer | |
| 8 | 1008707318 | Hexagon Bolt | |
| 9 | 1343707057 | Washer | |
| 10 | 1212251011 | Nut | |
| 11 | 0188814220 | Bleeding Tube | |
| 12 | 5000136700 | Hose Clip | |
| 13 | 0191515252 | Diesel Hose | |
| 14 | 0191515253 | Diesel Hose | |
| 15 | 0191515254 | Diesel Hose | |
| 16 | 1008707912 | Hexagon Bolt | |
| 17 | 5603320401 | Clip | |
| 18 | 5527655868 | Fuel Pump | |
| 19 | 5527665349 | Fuel Filter | |
| 20 | 5527665341 | Filter | |
| 21 | 1343707055 | Washer | |
| 22 | 6191515225 | Bracket | |
| 23 | 6191515220 | Holder | |
| 24 | 1008707513 | Hexagon Bolt | |
| 25 | 1307020014 | Washer | |
| 26 | 1212251009 | Hexagon Nut | |
| 27 | 1366707344 | Threaded Bolt | |
| 28 | 1210707011 | Nut | |
| 29 | 1008707618 | Hexagon Bolt | |
| 30 | 1007707319 | Hexagon Bolt | |
| 31 | 6188814225 | Washer | |
| 32 | 1636815725 | Seal Ring | |
| 33 | 1290707018 | Washer | |
| 34 | 6189110005 | Bracket | |
| 35 | 1008707018 | Hexagon Bolt | |
| 36 | 5603320315 | Clamp | |
| 37 | 0188814218 | Spacer Bushing | |
| 38 | 0188814219 | Spacer Bushing | |
| 39 | 5527656893 | Fuel Filter | |
| 40 | 5267010043 | Seal | |
| 41 | 5267010025 | Connection | |
| 42 | 5267010017 | Sealing | |
| 43 | 5267010026 | Pipe | |
| 44 | 5267010027 | Return Pipe | |
| 45 | 1971956345 | O-Ring | |
| 46 | 5527658926 | Fitting |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
