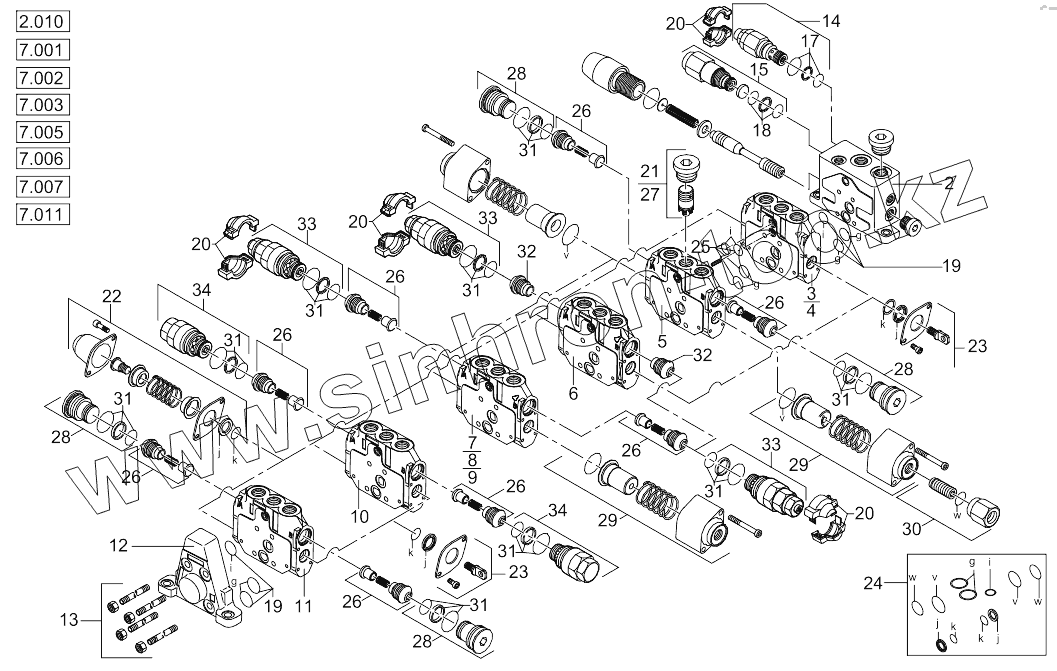

Каталог запасных частей к технике: RM-Terex TC35. Valve Bank Sx12 5606660538
2
3
4
5
6
7
8
9
10
11
12
13
14
15
17
18
19
19
20
20
20
20
21
22
23
23
24
25
26
26
26
26
26
26
26
26
27
28
28
28
28
29
29
30
31
31
31
31
31
31
31
31
31
32
32
33
33
33
34
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 5606664458 | Valve | |
| 3 | 5606664350 | Valve Section | |
| 4 | 5606664351 | Valve Section | |
| 5 | 5606664352 | Valve Section | |
| 6 | 5606664462 | Input Element | |
| 7 | 5606664463 | Valve Section | |
| 8 | 5606664464 | Valve Section | |
| 9 | 5606664465 | Valve Section | |
| 10 | 5606664357 | Valve Section | |
| 11 | 5606664358 | Valve Section | |
| 12 | 5606664359 | Valve Section | |
| 13 | 5606664360 | Tie Rod | |
| 14 | 5606664212 | Valve | |
| 15 | 5606656829 | Regulator | |
| 17 | 5606664336 | Seal Kit | |
| 18 | 5606664199 | Seal Kit | |
| 19 | 5606664369 | Seal Kit | |
| 20 | 5606664184 | Cap | |
| 21 | 5606664362 | Pressure Balance | |
| 22 | 5606664364 | Control Insert | |
| 23 | 5606664366 | Control Insert | |
| 24 | 5606664370 | Set Of Seals | |
| 25 | 5606664371 | Seal Kit | |
| 26 | 5606664434 | Check Valve | |
| 27 | 5606664363 | Pressure Balance | |
| 28 | 5606656769 | Lock Screw | |
| 29 | 5606664367 | Hydr. Op Kit A+B | |
| 30 | 5606664368 | Throttle, Set | |
| 31 | 5606664223 | Seal Kit | |
| 32 | 5606664433 | Plug | |
| 33 | 5606664224 | Pressure Relief Valve | |
| 34 | 5606656717 | Pres.Limit Valve |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
