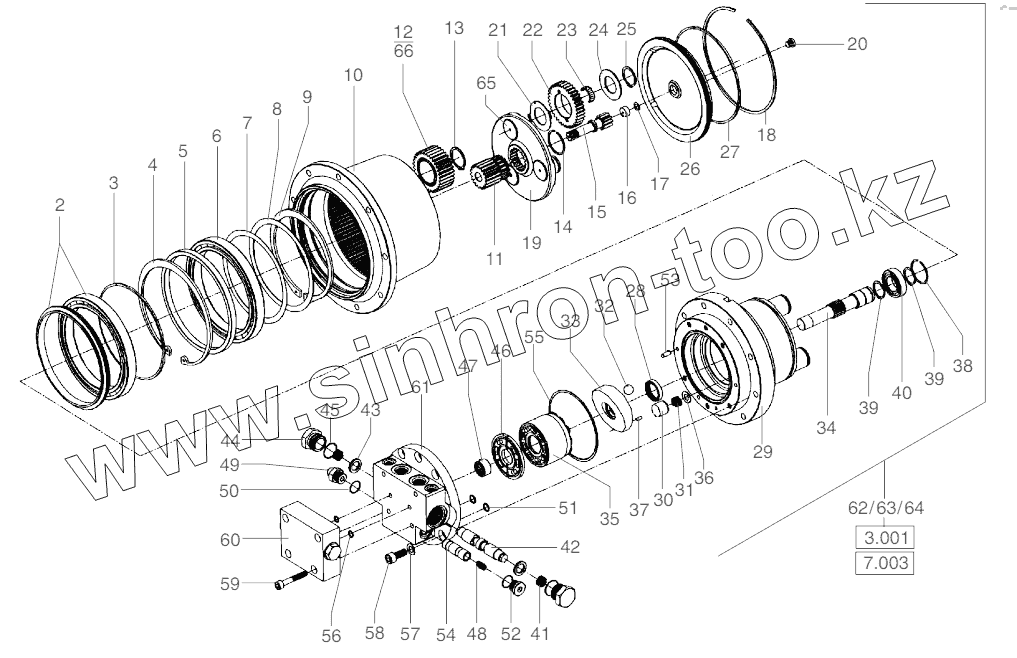

Каталог запасных частей к технике: RM-Terex TC35. Travel Gear 5712661820
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
51
53
54
55
56
57
58
59
60
61
62
63
64
66
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 5712662295 | Bearing | |
| 3 | 5904658116 | O-Ring | |
| 4 | 5712662296 | Circlip | |
| 5 | 5712662297 | Spacer Ring | |
| 6 | 5712662298 | Roller Bearing | |
| 7 | 5712662299 | Washer | |
| 8 | 5712662300 | Washer | |
| 9 | 5712662301 | Circlip | |
| 10 | 5712662302 | Planetary Housing | |
| 11 | 5712662303 | Sun Wheel | |
| 13 | 5712662304 | Ring | |
| 14 | 5712662305 | Locking Ring | |
| 15 | 5712662308 | Sun Wheel | |
| 16 | 5712662309 | Cushion | |
| 17 | 5712662310 | Washer Seal | |
| 18 | 5712662311 | Circlip | |
| 20 | 5712662096 | Plug | |
| 21 | 5712662313 | Flange | |
| 22 | 5712662314 | Planetary Housing | |
| 23 | 5712662315 | Needle Set | |
| 24 | 5712662316 | Carrier Plate | |
| 25 | 5712662317 | Locking Ring | |
| 26 | 5712662318 | Cover | |
| 27 | 1971956165 | O-Ring | |
| 28 | 5712662319 | Seal Ring | |
| 29 | 5712662320 | Hub | |
| 30 | 5712662321 | Piston | |
| 31 | 5712662322 | Spring | |
| 32 | 5712662323 | Ball | |
| 33 | 5712662324 | Washer | |
| 34 | 5712662325 | Shaft | |
| 36 | 5712662327 | Washer | |
| 37 | 5712662328 | Pin | |
| 38 | 5712662329 | Locking Ring | |
| 39 | 5712662307 | Locking Ring | |
| 40 | 5712662330 | Ball Bearing | |
| 41 | 5712662351 | Spring | |
| 42 | 5712662331 | Control Piston | |
| 43 | 5712662332 | Washer | |
| 44 | 5712662333 | Plug | |
| 45 | 1971956238 | O-Ring | |
| 46 | 5712662334 | Connecting Plate | |
| 47 | 5712662335 | Needle Bearing | |
| 48 | 5712662188 | Spring | |
| 49 | 5712662337 | Fitting | |
| 50 | 5712662338 | O-Ring | |
| 51 | 5364656209 | O-Ring | |
| 53 | 5712662340 | Pin | |
| 54 | 5712662341 | Control Piston | |
| 55 | 1971956146 | O-Ring | |
| 56 | 5712662342 | O Ring | |
| 57 | 5712662343 | Lock Washer | |
| 58 | 5712662344 | Screw | |
| 59 | 5712662345 | Screw | |
| 60 | 5712662346 | Valve | |
| 61 | 5712662347 | Housing | |
| 62 | 5712662348 | Seal Kit | |
| 63 | 5712662349 | Repair Kit | |
| 64 | 5712662350 | Hub Set | |
| 66 | 5712662369 | Roller Bearing |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
