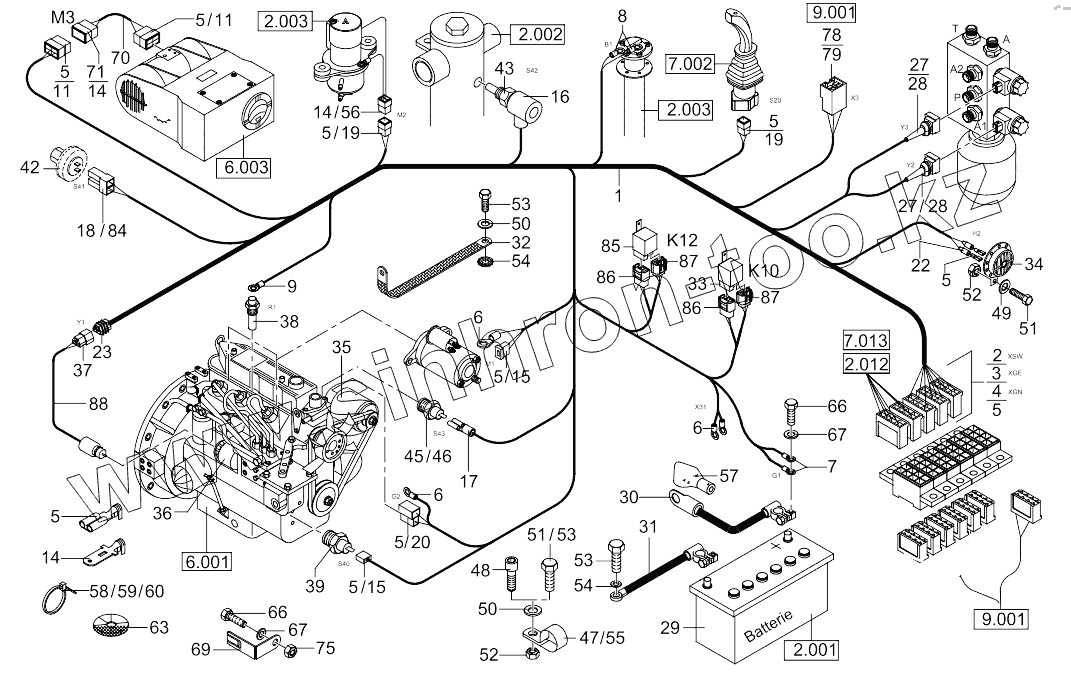

Каталог запасных частей к технике: RM-Terex TC35. Electrical Installation - Uppercarriage, Engine
2
3
4
5
5
5
5
5
5
5
5
5
5
6
6
6
7
8
9
11
11
14
14
14
15
15
16
17
18
19
19
20
22
23
27
27
28
28
29
30
31
32
33
34
35
36
37
38
39
42
43
45
46
47
48
49
50
50
51
51
52
52
53
53
53
54
54
55
56
57
58
59
60
63
66
66
67
67
69
70
71
75
78
79
84
85
86
86
87
87
88
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2 | 5350650215 | Socket | |
| 3 | 5350650205 | Socket | |
| 4 | 5350650210 | Socket | |
| 5 | 5350246805 | Flat Plug | |
| 6 | 5350249597 | Cable Connector | |
| 7 | 5350249600 | Cable Connector | |
| 8 | 5350246820 | Cable Connector | |
| 9 | 5350249590 | Cable Connector | |
| 11 | 5350249508 | Plug | |
| 14 | 5350247311 | Flat Plug | |
| 15 | 5350249536 | Housing | |
| 16 | 5380660826 | Plug | |
| 17 | 5350246815 | Flat Plug | |
| 18 | 5350246805 | Flat Plug | |
| 19 | 5350249513 | Plug | |
| 20 | 5050651211 | Housing | |
| 22 | 5653095570 | Cap | |
| 23 | 5527658962 | Plug | |
| 27 | 5350247518 | Housing | |
| 28 | 5350247520 | Rubber Grommet | |
| 29 | 5272600002 | Battery | |
| 30 | 0188807011 | Battery Cable | |
| 31 | 0188407012 | Battery Cable | |
| 32 | 5653246930 | Earth Cable | |
| 33 | 5527661018 | Relay | |
| 34 | 5050022225 | Horn | |
| 35 | 5527658997 | Electric Generator | |
| 36 | 5527658961 | Solenoid | |
| 37 | 5527662040 | Plug | |
| 38 | 5527658999 | Glow Plug | |
| 39 | 5527657943 | Pressure Switch | |
| 42 | 5501660960 | Service Switch | |
| 43 | 5380660831 | Switch | |
| 45 | 5527658949 | Water Temp Switch | |
| 46 | 5527662467 | Washer | |
| 47 | 5000136700 | Hose Clip | |
| 48 | 1045707817 | Bolt | |
| 49 | 1290707018 | Washer | |
| 50 | 1343707057 | Washer | |
| 51 | 1008707318 | Hexagon Bolt | |
| 52 | 1212251011 | Nut | |
| 53 | 1008707018 | Hexagon Bolt | |
| 54 | 1327707018 | Washer | |
| 55 | 5000136820 | Hose Clip | |
| 56 | 5350249534 | Flat Plug | |
| 57 | 5653095657 | Cover | |
| 58 | 5350650280 | Cable Binder | |
| 59 | 5653093560 | Binder | |
| 60 | 5350650294 | Cable Clip | |
| 63 | 5653095594 | Membrane Reservoir | |
| 66 | 1008707912 | Hexagon Bolt | |
| 67 | 1290707014 | Washer | |
| 69 | 6187507015 | Angle | |
| 70 | 0189607016 | Adapter | |
| 71 | 5350249509 | Socket Insert | |
| 75 | 1212251009 | Hexagon Nut | |
| 78 | 5350249526 | Plug | |
| 79 | 5350249528 | Flat Plug | |
| 84 | 5350249576 | Housing | |
| 85 | 5527661016 | Relay | |
| 86 | 5527661014 | Flat Plug | |
| 87 | 5527661012 | Control Housing | |
| 88 | 5527665472 | Solenoid |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
