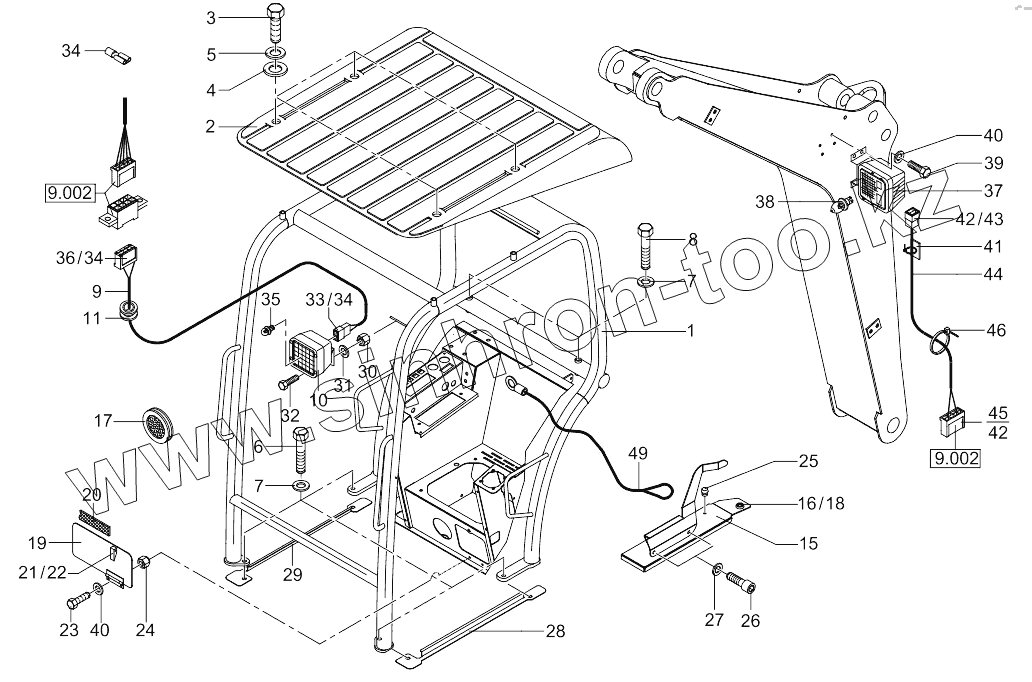

Каталог запасных частей к технике: RM-Terex TC35. Cab,S Roof, Working Flood Light
1
2
3
4
5
6
7
7
8
9
10
11
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
34
35
36
37
38
39
40
40
41
42
42
43
44
45
46
49
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 0191611102 | Guard Panel | |
| 2 | 0191611110 | Roof | |
| 3 | 1008707529 | Hexagon Bolt | |
| 4 | 5354600022 | Cellular Rubber Ring | |
| 5 | 6191611146 | Washer | |
| 6 | 1008707030 | Hexagon Bolt | |
| 7 | 1290707022 | Washer | |
| 8 | 1008707431 | Hexagon Bolt | |
| 9 | 0187611050 | Wire Harness | |
| 10 | 5388660811 | Working Light | |
| 11 | 5388662101 | Rubber | |
| 15 | 6191611160 | Protector | |
| 16 | 5354604437 | Cylinder Lock | |
| 17 | 5653095673 | Bushing | |
| 18 | 1305707033 | Washer | |
| 19 | 6188922005 | Cover | |
| 20 | 5354640125 | Neoprene Strip | |
| 21 | 5354606001 | Locking | |
| 22 | 1307707014 | Washer | |
| 23 | 1008707912 | Hexagon Bolt | |
| 24 | 1212251009 | Hexagon Nut | |
| 25 | 5653093572 | Rubber Base | |
| 26 | 1045707213 | Pan Head Screw | |
| 27 | 1343707055 | Washer | |
| 28 | 6187611040 | Plate Left | |
| 29 | 6187611041 | Plate Right | |
| 30 | 1212251013 | Nut | |
| 31 | 1290707020 | Washer 10.5 | |
| 32 | 1008707318 | Hexagon Bolt | |
| 33 | 5350249513 | Plug | |
| 34 | 5350246805 | Flat Plug | |
| 35 | 1813000035 | Bulb | |
| 36 | 5350650211 | Socket | |
| 37 | 5350661215 | Working Floodlights | |
| 38 | 1813000035 | Bulb | |
| 39 | 1008707612 | Screw | |
| 40 | 1290707014 | Washer | |
| 41 | 5350650260 | Wire Clip | |
| 42 | 5350246805 | Flat Plug | |
| 43 | 5350249513 | Plug | |
| 44 | 5653009800 | Cable | |
| 45 | 5350650217 | Socket | |
| 46 | 5350650294 | Cable Clip | |
| 49 | 6186921000 | Fastener |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
