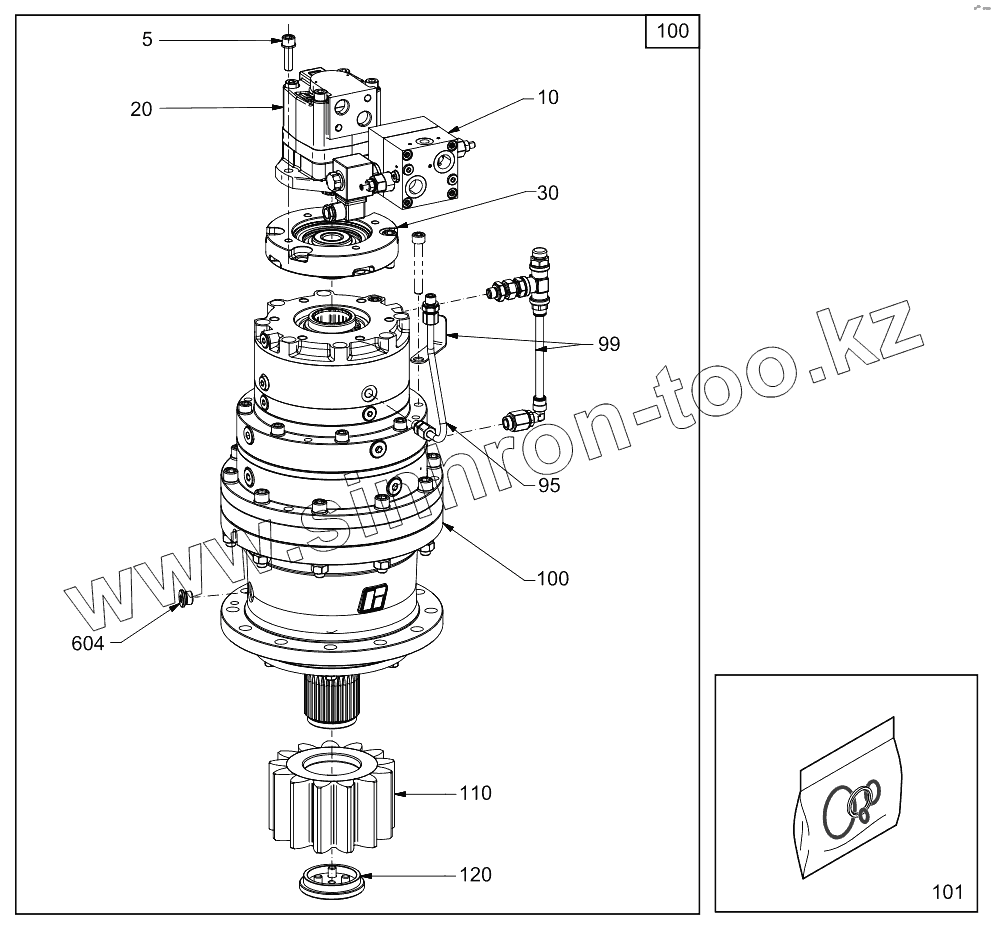

Каталог запасных частей к технике: RM-Terex RT35-1. Slewing gearbox

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CD TFC45LX hc SIDER (2013) RT35-1 (2018) TC-29 (2014) TC-48 (2013) TC-50 (2013) TC35 (2015) TL-260 (2009) TL-310 (2013) TLB-815 (2010) TLB-825 (2018) TLB-840 (2010) TLB-890 (часть 1) (2013) TLB-890 (часть 2) (2013) TLB-990 Tier 3 (2013) TLB840SM, TLB840PM (2013)

Схема > Не выбрано FILTERS KIT - ENGINE QSB4.5 STAGE IIIA - TIER 3 FILTERS KIT - ENGINE QSB4.5 STAGE IV - TIER 4F ENGINE QSB4.5 STAGE IIIA - TIER 3 ENGINE QSB4.5 STAGE IIIA - TIER 3 AIR FILTER - ENGINE QSB4.5 STAGE IIIA - TIER 3 ENGINE-PUMPS - ENGINE QSB4.5 STAGE IIIA - TIER 3 ENGINE-PUMPS - ENGINE QSB4.5 STAGE IIIA - TIER 3 MUFFLER - ENGINE QSB4.5 STAGE IIIA - TIER 3 RADIATOR - ENGINE QSB4.5 STAGE IIIA - TIER 3 FUEL HOSES ENGINE STAGE IV - TIER 4F ENGINE QSB4.5 STAGE IV - TIER 4F AIR FILTER - ENGINE QSB4.5 STAGE IV - TIER 4F ENGINE-PUMPS - ENGINE QSB4.5 STAGE IV - TIER 4F ENGINE-PUMPS - ENGINE QSB4.5 STAGE IV - TIER 4F MUFFLER - ENGINE QSB4.5 STAGE IV - TIER 4F UREA-WATER HOSES KIT - ENGINE QSB4.5 STAGE IV - TIER 4F RADIATOR - ENGINE QSB4.5 STAGE IV - TIER 4F FUEL HOSES QSB4.5 FASE IV T20000 TRANSMISSION Case and rear cover group Group turbine shaft Group torque converter Group forward shaft Rear and 2nd shaft group Reverse idler group Group low speed shaft 3rd shaft group Group idler shaft Output shaft group Charging pump group Group valve 3 SPD Group valve 3 SP High and low range shift control group Electric cab control, single lever Group remote filter T20000 - Kit gasket and sealing ring kit T20000 Group auxiliary pump drive T20000 Group pump drive Drive plate group CARRIER FRONT AXLE Front Axle Front axle Front axle Front axle REAR AXLE Rear axle Rear axle Rear axle Rear axle Rear axle OUTRIGGER BEAMS HORIZONTAL STABILIZER CYLINDER ASSY WITH SENSOR OUTRIGGERS VERTICAL CYLINDER OUTRIGGERS ON CARRIER MOUNTING CARRIER AND FENDERS TRANSMISSION HEAT EXCHANGER CARDAN SHAFTS GROUP OF CYLINDERS BLOCK OSCILLATION LOCKING CYLINDER TRANSMISSION FILTER STEERING-STABILIZERS VALVE VALVE BLOCK FLOW REDUCTION VALVE VALVE BLOCK OIL TANK Frame front rear-view mirrors Fuel tank Battery compartment assembly with batteries BONNETS LADDER CAB SIDE TELESCOPIC BOOM Block "OFS" 35T capacity Telescopic boom Boom head Telescopic boom extending UPPERSTRUCTURE Slewing ring assembly COUNTERWEIGHT AND WINCH ASSEMBLY HYDRAULIC SWIVEL Hydraulic swivel joint HYDRAULIC OIL HEAT EXCHANGER SERVO MOVEMENT VALVE STEERING VALVE VALVE OIL SUPPLY VALVE CONTROL DISTRIBUTORS POWER STEERING DRAIN MANIFOLD SLEWING REDUCING GEAR Reduction stage Reduction stage Intermediate flange Gearbox body Brake assembly Output support Boom and lifting cylinder assembly Lifting cylinder LIFTING, EXTENDING AND SLEWING DISTRIBUTOR Lifting, extending and slewing distributor WINCH DISTRIBUTOR Winch distributor In-cab components Cab roof assembly Installation of cab windshield wiper Accessories on LH-side dashboard inside cab Accessories inside the cab Joysticks LH joystick RH joystick Throttle pedal Slewing speed adjustment Seat Seat Seat Seat Car Radio Cab lower guard Distributors guard Winch TW4 Lebus Winch TW4 Lebus - Brake group Winch TW4 Lebus - Press-cable kit and limit switch Slewing gearbox ACCESSORIES / OPTIONS A/C VALVE Working light Tool box Block 10T capacity In-cab heating system Fire extinguisher and box Auxiliary winch and rope Installation of tyre 16.00 R25 8m lattice extension 8m lattice extension Air conditioned Air conditioned Air conditioned Fuel pre-heating 8 mt boxed extension Extension support Cab heater Encoder on electric slipring Coolant heater starting aid Decals Decals Decals Decals TEREX DECALS ELECTRIC SYSTEM HARNESSES ENGINE STAGE IIIA TIER 3 HARNESS ENGINE STAGE IV TIER 4F FRONT CARRIER HARNESS REAR CARRIER HARNESS Headlights, tail lights, horns, buzzer, cat’s-eyes, number plate light CARRIER RELAYS BOX Boom electric system STAGE 3A DASHBOARD CONTROL PANEL STAGE 4F DASHBOARD CONTROL PANEL Electric manifold components Electric box on boom head 09.0682.1079 Cable reel components 09.0682.1079 Cable reel components Electric slipring Electric components of limiter Electric components of limiter Electric components of limiter TURRET BOX HARNESS EXTENSION SUPERSTRUCTURE UPPER HARNESS SUPERSTRUCTURE LOWER HARNESS ENGINE PANEL SWITCH LH and RH joystick wiring SUPERSTRUCTURE RELAYS BOX CABLE OUTRIGGERS SIDE DASHBOARD BATTERY ASSEMBLY PNEUMATIC SYSTEM CARRIER PNEUMATIC SYSTEM 4 WAYS BLOCK TANK 5 L 5-WAY PNEUMATIC VALVE TANKS 45L KIT AIR DRYER AIR DRYER Parking brake SOLENOID VALVE TURRET PNEUMATIC SYSTEM MANETTINO FRENO STAZIONAM. + VALV. PARKING SIGNALING BRAKE PEDAL VALVE HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM CARRIER HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM SUPERSTRUCTURE HYDRAULIC SYSTEM

10

20

95

99

100

100

101

110

120

Позиция на иллюстрации	Заводской номер детали		Название детали
10	07.0520.2474.CRE		VALVE
20	07.0520.2475.CRE		HYDRAULIC MOTOR
95	07.0520.2476.CRE		PIPE SET
99	07.0520.2477.CRE		PIPE SET
100	04.0235.1277.CRE		SWING REDUCER ASSY WITH MOTOR AND VALVE
101	07.0550.1463.CRE		GASKET KIT
110	07.0520.2478.CRE		PINION
120	07.0520.2479.CRE		LOCK WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
