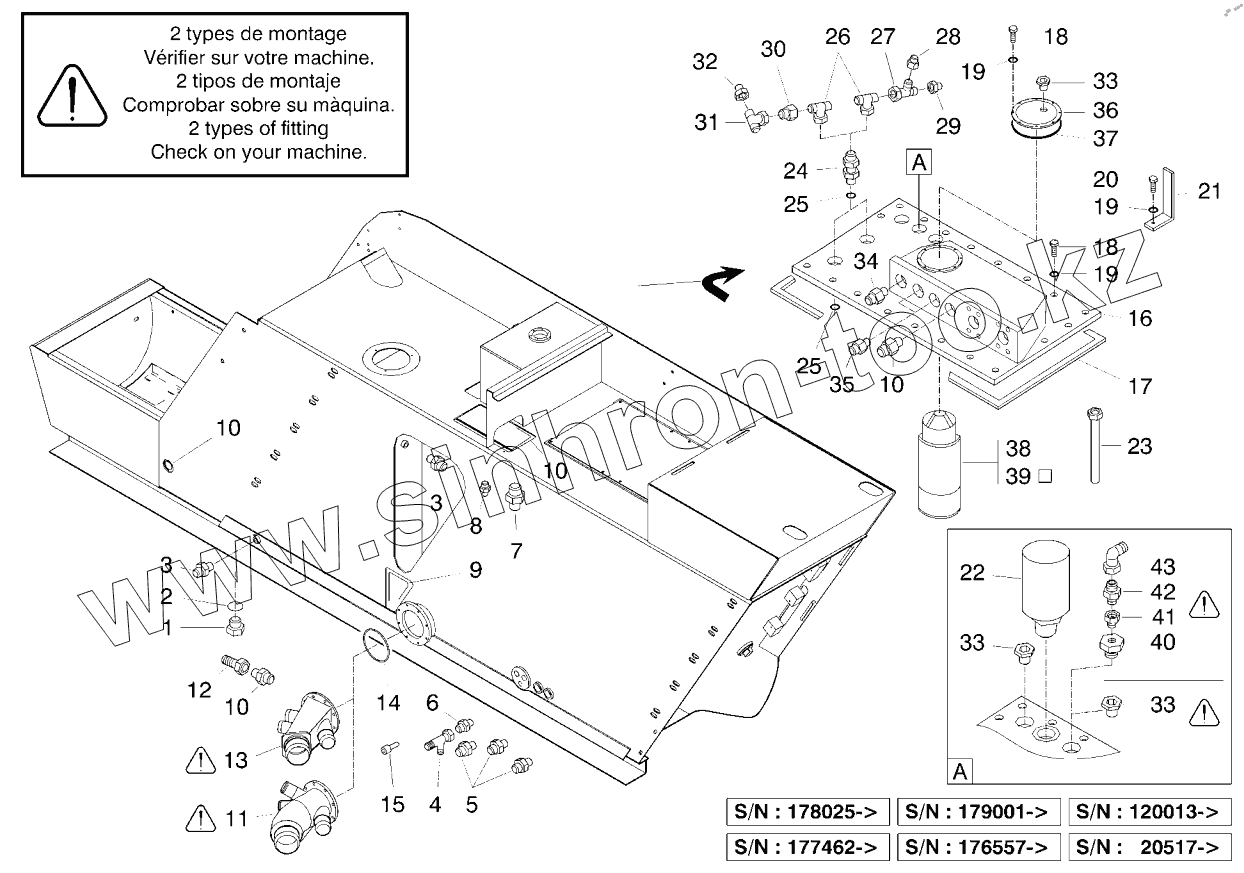

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. UNION + COLLECTOR
1
2
3
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
18
18
19
19
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
33
33
34
35
36
37
38
39
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | C6237464 | PLUG | |
| 2 | C6151076 | O-RING | |
| 3 | S1737505 | UNION | |
| 4 | K1137221 | T PIECE | |
| 5 | K2937592 | UNION | |
| 6 | D0437555 | UNION | |
| 7 | K3437566 | UNION | |
| 8 | D3737526 | UNION | |
| 9 | Q0403181 | O-RING | |
| 10 | D4937574 | UNION | |
| 11 | P6850172 | ELBOW PIECE | |
| 12 | X2937512 | UNION | |
| 13 | F7050126 | ELBOW PIECE | |
| 14 | N0130445 | O-RING | |
| 15 | V0033829 | SCREW | |
| 16 | K7050107 | COLLECTOR SUPPORT | |
| 17 | F8346038 | SEAL | |
| 18 | F0033815 | SCREW | |
| 19 | H0229087 | WASHER | |
| 20 | H0033817 | SCREW | |
| 21 | P5625652 | SUPPORT | |
| 22 | S6650512 | BREATHER | |
| 23 | P4737622 | PIPE | |
| 24 | E4937575 | UNION | |
| 25 | N0045299 | SEAL | |
| 26 | V1137208 | T-PIECE | |
| 27 | W1137278 | T PIECE | |
| 28 | V4937544 | UNION | |
| 29 | Z4937547 | UNION | |
| 30 | S4337540 | CONNECTION | |
| 31 | D0137267 | T-PIECE | |
| 32 | E4337528 | CONNECTION | |
| 33 | N2437414 | PLUG | |
| 34 | G3141668 | SENSOR | |
| 35 | K2937592 | UNION | |
| 36 | Q6550598 | PLUG | |
| 37 | N1430474 | O-RING | |
| 38 | F6650524 | FILTER | |
| 39 | G6650525 | FILTER CARTRIDGE | |
| 40 | T8037528 | UNION | |
| 41 | A0637307 | UNION | |
| 42 | D3737526 | UNION | |
| 43 | S1837026 | ANGLE PIECE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
