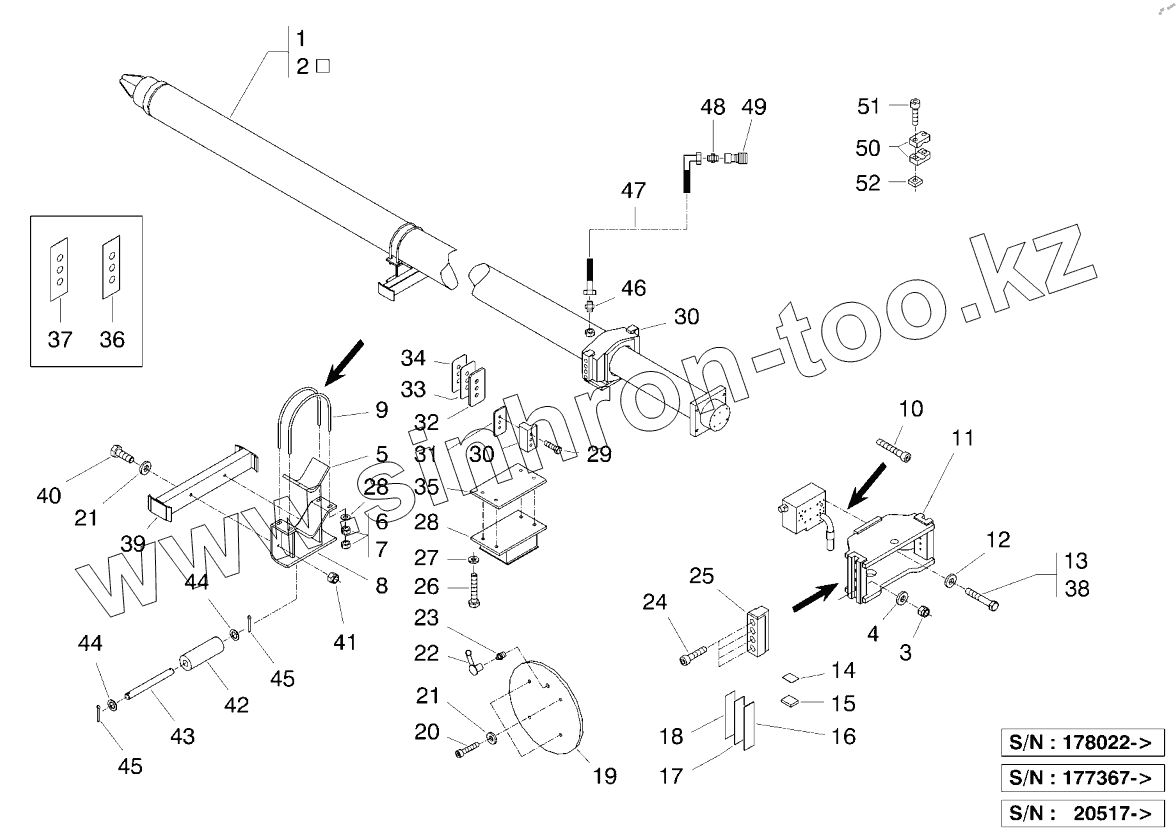

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. TELESCOP. ACCESSORIES
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
45
46
47
48
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | W5946854 | CYLINDER | |
| 2 | U8749678 | IOTTI SET SEALS | |
| 3 | M0134584 | NUT | |
| 4 | S0229073 | WASHER | |
| 5 | T8426688 | COVER GUIDE | |
| 6 | E2334550 | NUT | |
| 7 | T0234157 | NUT | |
| 8 | S8426687 | GUIDE | |
| 9 | V2430659 | KEY | |
| 10 | G0732993 | SCREW | |
| 11 | P6428421 | SUPPORT | |
| 12 | T2828810 | WASHER | |
| 13 | K0033865 | SCREW | |
| 14 | L6050827 | SHIM | |
| 15 | K6050826 | SHIM | |
| 16 | U9722762 | SHIM | |
| 17 | V9722763 | SHIM | |
| 18 | W9722764 | SHIM | |
| 19 | E0245598 | PLATE | |
| 20 | H0033840 | SCREW | |
| 21 | X2828837 | WASHER | |
| 22 | D0141407 | GREASE NIPPLE COVER | |
| 23 | N0045805 | GREASE NIPPLE | |
| 24 | K6332990 | SCREW | |
| 25 | S7620307 | KEY | |
| 26 | U0033828 | SCREW | |
| 27 | W0035003 | WASHER | |
| 28 | B6050841 | RUBBER STOP | |
| 29 | T6633884 | SCREW | |
| 30 | B7620315 | BRACKET | |
| 31 | H6022948 | SHIM | |
| 32 | G6022947 | SHIM | |
| 33 | Z6422887 | SHIM | |
| 34 | T6022958 | SHIM | |
| 35 | A9722744 | SHIM | |
| 36 | S6022957 | SHIM | |
| 37 | R6022956 | SHIM | |
| 38 | G1133883 | SCREW | |
| 39 | J6428485 | SCHUHS | |
| 40 | H0533837 | SCREW | |
| 41 | U0534561 | NUT | |
| 42 | X0229492 | ROLLE | |
| 43 | C0627603 | ACHSE | |
| 44 | X0035050 | WASHER | |
| 45 | G0035541 | SICHERHEITSSTIFT | |
| 46 | M2937548 | UNION | |
| 47 | H7731917 | HOSE | |
| 48 | S4337586 | UNION | |
| 49 | S3244442 | UNION | |
| 50 | C3020385 | BRACKET | |
| 51 | B0032914 | SCREW | |
| 52 | P2034570 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
