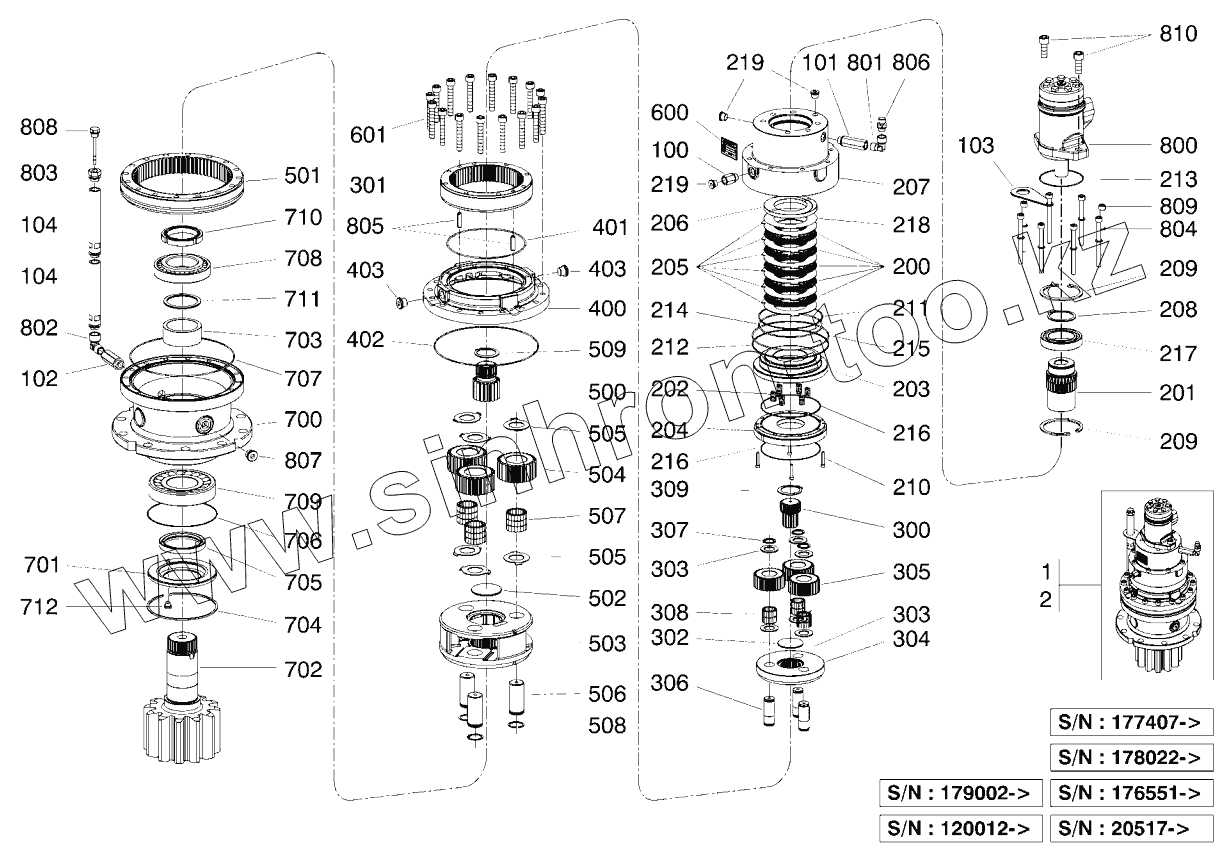

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. REDUCER
1
2
100
101
102
103
104
104
200
201
202
203
204
205
206
207
208
209
209
210
211
212
213
214
215
216
216
217
218
219
219
300
301
302
303
303
304
305
306
307
308
309
400
401
402
403
403
500
501
502
503
504
505
505
506
507
508
509
600
601
700
701
702
703
704
705
706
707
708
709
710
711
712
800
801
802
803
804
805
806
807
808
809
810
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | X8838990 | COMER MECCANISM | |
| 2 | V8838965 | REDUCER WITHOUT MOTOR | |
| 100 | K7937516 | EXTENSION | |
| 101 | J7937515 | EXTENSION | |
| 102 | A7737591 | EXTENSION SUPPORT SHEET | |
| 103 | X6623607 | EXTENSION | |
| 104 | L7937517 | CLUTCH DISK | |
| 200 | B8343136 | COUPLING | |
| 201 | Q7639326 | SPRING | |
| 202 | G7138148 | BRAKE PISTON | |
| 203 | F8538939 | WASHER | |
| 204 | J5545492 | RETAINING FLANGE | |
| 205 | V8638911 | STEEL DISK | |
| 206 | G8538940 | DIRECT INPUT HOUSING | |
| 207 | R8938919 | EXTERNAL SNAP RING | |
| 208 | H6151012 | INTERNAL SNAP RING | |
| 209 | J6151013 | INTERNAL SNAP RING | |
| 210 | N6432928 | SCREW | |
| 211 | N6151017 | PARBAK RING | |
| 212 | P6151018 | O-RING-SEAL | |
| 213 | U6230465 | O-RING-SEAL | |
| 214 | S6430448 | O-RING-SEAL | |
| 215 | T6430449 | O-RING-SEAL | |
| 216 | R6430447 | O-RING-SEAL | |
| 217 | P6139679 | WASHER KIT | |
| 218 | M5545426 | PLUG | |
| 219 | D6737439 | SUN GEAR | |
| 300 | R7639327 | RING GEAR | |
| 301 | S7639328 | WASHER | |
| 302 | U0345064 | WASHER | |
| 303 | N5545427 | PLANETARY CARRIER | |
| 304 | M8838934 | PLANET GEAR | |
| 305 | T7639329 | PIN | |
| 306 | L6027344 | EXTERNAL SNAP RING | |
| 307 | F6151010 | NEEDLE | |
| 308 | D3039890 | EXTERNAL SNAP RING | |
| 309 | G6151011 | EXTERNAL SNAP RING | |
| 400 | U6540344 | CONNECTION HOUSING | |
| 401 | R6430447 | O-RING-SEAL | |
| 402 | Q6430446 | O-RING-SEAL | |
| 403 | D6537477 | PLUG | |
| 500 | Z7439326 | SUN GEAR | |
| 501 | L7639322 | RING GEAR | |
| 502 | H0222463 | CARRIER BOTTOM | |
| 503 | S7639374 | PLANETARY CARRIER | |
| 504 | D7439307 | PLANET GEAR | |
| 505 | X5245447 | WASHER | |
| 506 | G6027340 | PIN | |
| 507 | Z2939882 | NEEDLE | |
| 508 | A6551044 | EXTERNAL SNAP RING | |
| 509 | G6151011 | EXTERNAL SNAP RING | |
| 600 | A7844081 | NAME PLATE | |
| 601 | L6332991 | SCREW | |
| 700 | N8838935 | OUTPUT HOUSING | |
| 701 | P5545428 | OUTPUT COVER FLANGE | |
| 702 | J7339377 | OUTPUT SHAFT | |
| 703 | Z8328782 | BEARING SPACER | |
| 704 | H5545422 | INTERNAL SNAP RING | |
| 705 | M6151016 | OIL SEAL | |
| 706 | V6230466 | O-RING-SEAL | |
| 707 | Q6430446 | O-RING-SEAL | |
| 708 | C3039889 | BEARING | |
| 709 | E3039891 | BEARING | |
| 710 | G6434532 | NUT | |
| 711 | J5545423 | SHIM KIT | |
| 712 | D6537477 | PLUG | |
| 800 | R6343714 | MOTOR COMER | |
| 801 | R6437025 | ANGLE PIECE | |
| 802 | S6437003 | ANGLE PIECE | |
| 803 | N7937519 | UNION | |
| 804 | L0235070 | WASHER | |
| 805 | P0235763 | ELASTIC PIN | |
| 806 | Z6550583 | BREATHER PLUG | |
| 807 | E6737440 | MAGNETIC PLUG | |
| 808 | K6550593 | PLUG OIL LEVEL | |
| 809 | M6332992 | SCREW | |
| 810 | N6332993 | SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
