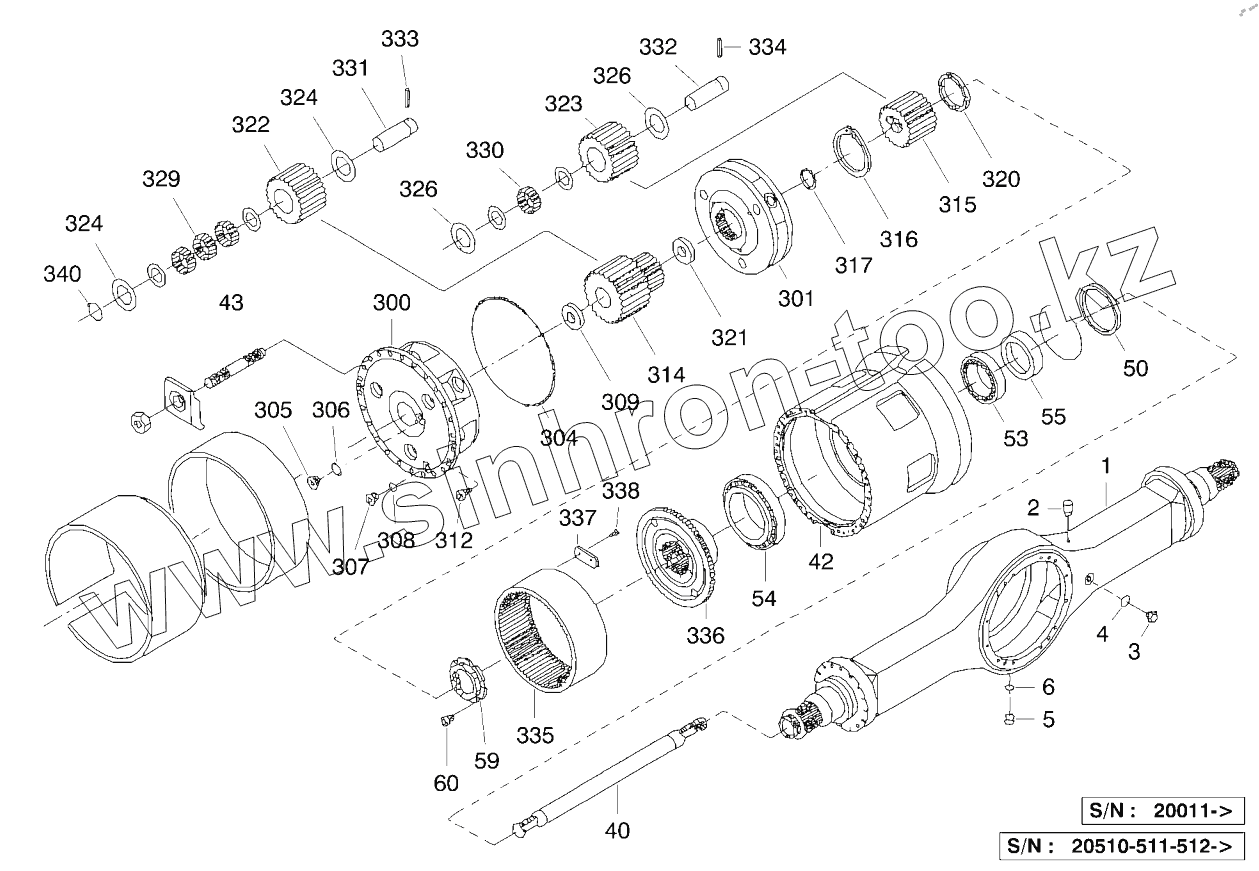

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. REDUCER
1
2
3
4
5
6
40
42
43
50
53
54
55
59
60
300
301
304
305
306
307
308
309
312
314
315
316
317
320
321
322
323
324
324
326
326
329
330
331
332
333
334
335
336
337
338
340
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | M5948547 | HOUSING | |
| 2 | J5348589 | BREATHER | |
| 3 | X6437445 | SCREW PLUG | |
| 4 | U5145233 | SEALING RING | |
| 5 | F2437499 | SCREW PLUG | |
| 6 | X5145236 | SEALING RING | |
| 40 | A5848578 | AXE SHAFT | |
| 42 | H7339376 | WHELL HUB | |
| 43 | M6127763 | STUD | |
| 50 | T5851056 | RADIAL SEAL RING | |
| 53 | B3039819 | BEARING | |
| 54 | B3039819 | BEARING | |
| 55 | G8428701 | SPACER | |
| 59 | K6334577 | AXLE SHAFT | |
| 60 | G0232835 | SCREW | |
| 300 | M5348592 | PLANETERY HOUSING | |
| 301 | N5348593 | PLANETERY CARRIER | |
| 304 | T6330422 | SEAL | |
| 305 | F2437499 | SCREW PLUG | |
| 306 | X5145236 | SEALING RING | |
| 307 | Z6437446 | SCREW PLUG | |
| 308 | W5145235 | SEAL | |
| 309 | F3445359 | THRUST RING | |
| 312 | N6033878 | SCREW | |
| 314 | W7139358 | SUN GEAR | |
| 315 | B7539309 | SUN GEAR | |
| 316 | G0036346 | CIRCLIP | |
| 317 | B0336330 | RADIAL SEAL RING | |
| 320 | W5148570 | THRUST RING | |
| 321 | E3445358 | RADIAL SEAL RING | |
| 322 | Z7139360 | PLANETERY GEAR | |
| 323 | A7139361 | PLANETERY GEAR | |
| 324 | G3445360 | THRUST WASHER | |
| 326 | B3445355 | THRUST WASHER | |
| 329 | C3039820 | BEARING | |
| 330 | H2939890 | BEARING | |
| 331 | U2027560 | PLANETERY PIN | |
| 332 | H2027549 | PLANETERY PIN | |
| 333 | D0235753 | LOCKING PIN | |
| 334 | S0235743 | SPLIT PIN | |
| 335 | D7539311 | GEAR WHEEL | |
| 336 | C7539310 | RING GEAR CARRIER | |
| 337 | Q5848523 | RETAINER | |
| 338 | T6333849 | HEXAGON SCREW | |
| 340 | W6330494 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
