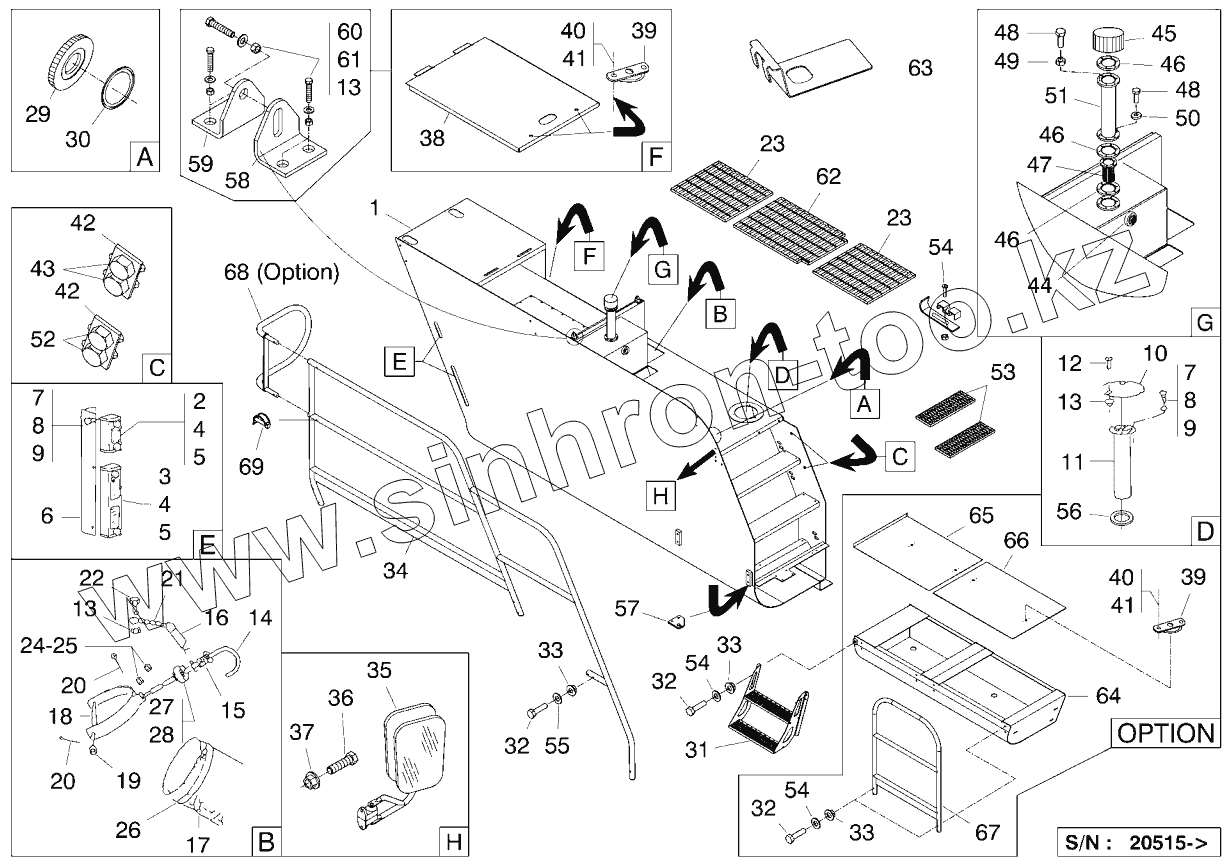

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. OIL + DIESEL TANK
1
2
3
4
4
5
5
6
7
7
8
8
9
9
10
11
12
13
13
13
14
15
16
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
31
32
32
32
33
33
33
34
35
36
37
38
39
39
40
40
41
41
42
42
43
44
45
46
46
46
47
48
48
49
50
51
52
53
54
54
54
55
56
57
58
59
60
61
62
63
64
65
66
67
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | X6340293 | RESERVOIR | |
| 2 | B2541639 | LEVEL | |
| 3 | E2941658 | LEVEL | |
| 4 | D0033836 | SCREW | |
| 5 | D0145271 | COPPER SEAL | |
| 6 | J6540334 | COVER | |
| 7 | H0032621 | SCREW | |
| 8 | A0034707 | WASHER | |
| 9 | M0235002 | WASHER | |
| 10 | E0550279 | PLATE | |
| 11 | K3141694 | PRESSURE SWITCH | |
| 12 | X0032911 | SCREW | |
| 13 | C2334548 | NUT | |
| 14 | M3027731 | ROD | |
| 15 | J4041453 | WASHER | |
| 16 | X0036016 | SPLIT PIN | |
| 17 | G6831926 | HOSE | |
| 18 | C3727635 | PIN | |
| 19 | U0035001 | WASHER | |
| 20 | X0035510 | SPLIT PIN | |
| 21 | E0002902 | CHAIN | |
| 22 | H0032621 | SCREW | |
| 23 | M6340467 | DUCKBOARDS | |
| 24 | T0034563 | NUT | |
| 25 | M0034166 | NUT | |
| 26 | A1036955 | COLLAR | |
| 27 | G6542287 | HOSE | |
| 28 | Q0036998 | COLLAR | |
| 29 | Q3437433 | PLUG | |
| 30 | E0046096 | SEAL | |
| 31 | H6226406 | STEP | |
| 32 | C0433805 | SCREW | |
| 33 | E2334550 | NUT | |
| 34 | Q7347985 | RAMP | |
| 35 | V2143274 | MIRROR | |
| 36 | D2733070 | SCREW | |
| 37 | D2334549 | NUT | |
| 38 | H6044591 | COVER | |
| 39 | E6152044 | CATCH | |
| 40 | W0232550 | SCREW | |
| 41 | Z2934569 | NUT | |
| 42 | P6522836 | PLATE | |
| 43 | M0133802 | SCREW | |
| 44 | L6341616 | INDICATOR | |
| 45 | G1750559 | PLUG | |
| 46 | E6051074 | SEAL | |
| 47 | W6350573 | FILTER BOWL | |
| 48 | E0433853 | SCREW | |
| 49 | X2334567 | NUT | |
| 50 | Z0034706 | WASHER | |
| 51 | L6328437 | PIPE | |
| 52 | R0033802 | SCREW | |
| 53 | B6340457 | STEP | |
| 54 | R3436905 | FITTING | |
| 55 | K6941409 | WASHER | |
| 56 | L9546068 | SEAL | |
| 57 | B7824187 | BRACKET | |
| 58 | F8725699 | BRACKET | |
| 59 | E8725698 | BRACKET | |
| 60 | D3033059 | SCREW | |
| 61 | A0034707 | WASHER | |
| 62 | V6540437 | DUCKBOARDS | |
| 63 | G7344596 | TRAP DOOR | |
| 64 | F1913582 | RIGHT CASE | |
| 65 | L6044571 | PLATEFORM | |
| 66 | E6944555 | PLATEFORM | |
| 67 | A7347971 | RAMP | |
| 68 | J7347979 | RAMP | |
| 69 | W0236046 | SAFETY-PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
