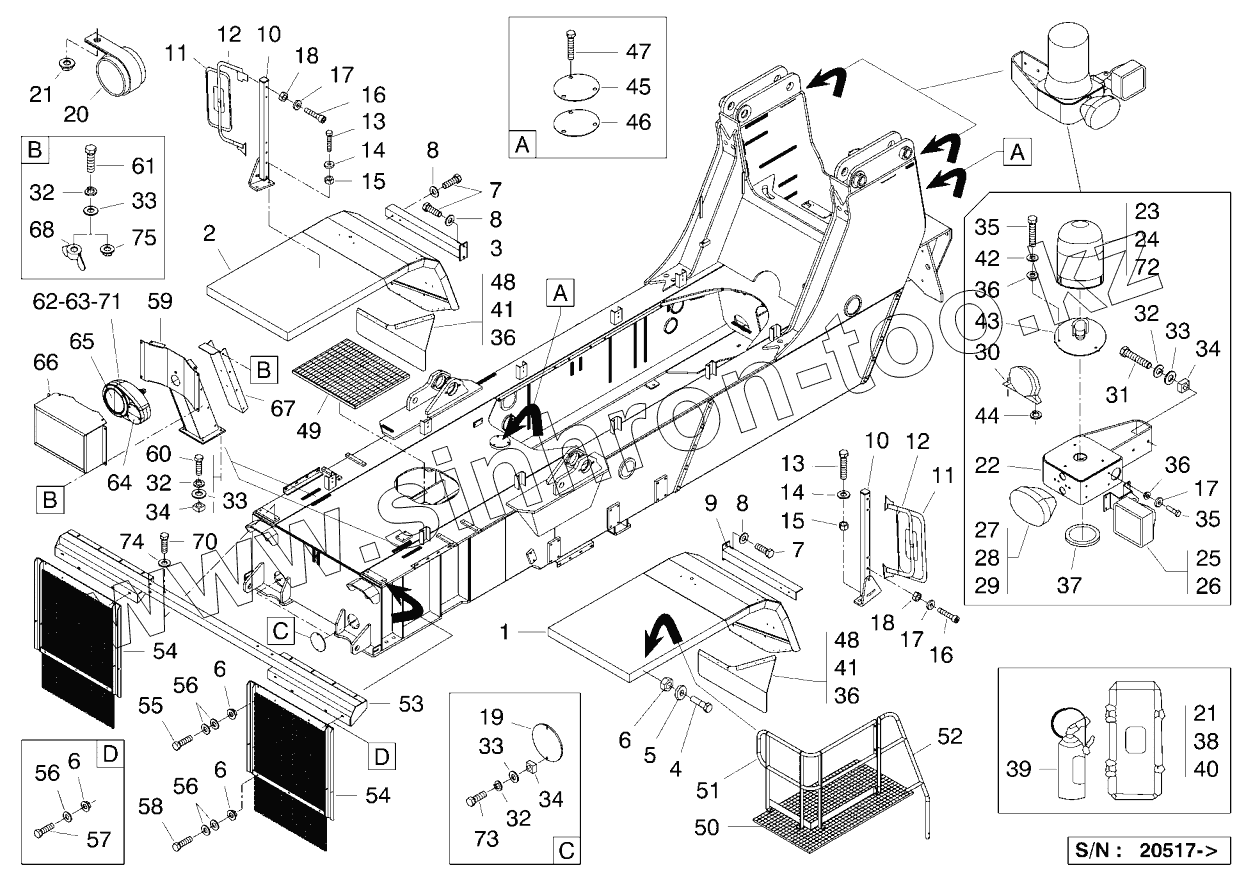

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. LIGHTS-WINGS-MIRROR
1
2
3
4
5
6
6
6
6
7
7
8
8
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
17
18
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
32
32
32
33
33
33
33
34
34
34
35
35
36
36
36
36
37
38
39
40
41
41
42
43
44
45
46
47
48
48
49
50
51
52
53
54
54
55
56
56
56
57
58
59
60
61
62
63
64
65
66
67
68
70
71
72
73
74
75
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | K7344576 | WING | |
| 2 | L7344577 | WING | |
| 3 | S6528428 | PLATE | |
| 4 | H0033840 | SCREW | |
| 5 | C0035031 | WASHER | |
| 6 | F2334551 | NUT | |
| 7 | M0133802 | SCREW | |
| 8 | P0528898 | WASHER | |
| 9 | N6528447 | PLATE | |
| 10 | C8625669 | PLATE | |
| 11 | R2743248 | MIRROR | |
| 12 | X0526353 | PLATE | |
| 13 | V0033829 | SCREW | |
| 14 | R0035021 | WASHER | |
| 15 | Z0534565 | NUT | |
| 16 | C0032915 | SCREW | |
| 17 | U0035001 | WASHER | |
| 18 | N2034592 | NUT | |
| 19 | D6540467 | PLATE | |
| 20 | T0536975 | COLLAR | |
| 21 | D2334549 | NUT | |
| 22 | F6540308 | SUPPORT | |
| 23 | E6341794 | LIGHT | |
| 24 | Q0140521 | LIGHT LAMP | |
| 25 | H6341728 | WORKING LIGHT | |
| 26 | T6040530 | LIGHT LAMP | |
| 27 | D6341747 | REAR LIGHT | |
| 28 | C0040574 | LIGHT LAMP | |
| 29 | D0040575 | BULB | |
| 30 | W6741665 | HORN | |
| 31 | E0033814 | SCREW | |
| 32 | C0034709 | WASHER | |
| 33 | V0035002 | WASHER | |
| 34 | N2034569 | NUT | |
| 35 | Z0033809 | SCREW | |
| 36 | C2334548 | NUT | |
| 37 | A6637432 | PLUG | |
| 38 | H5944518 | BOX FIRE EXTINGUISHER | |
| 39 | J6743263 | 6KG FIRE EXTINGUISHER | |
| 40 | C0232555 | SCREW | |
| 41 | Z0232552 | SCREW | |
| 42 | M0235002 | WASHER | |
| 43 | U6828442 | SUPPORT | |
| 44 | L0034809 | WASHER | |
| 45 | Q6440451 | COVER | |
| 46 | H6351020 | O-RING | |
| 47 | M0033867 | SCREW | |
| 48 | M6490588 | PROTECTION | |
| 49 | N6140437 | DUCKBOARDS | |
| 50 | S6540434 | DUCKBOARDS | |
| 51 | W7347968 | RAMP | |
| 52 | V7347967 | RAMP | |
| 53 | P1913590 | SUPPORT | |
| 54 | Q1913591 | PROTECTION | |
| 55 | K0033842 | SCREW | |
| 56 | X0035004 | WASHER | |
| 57 | H0533837 | SCREW | |
| 58 | R0032675 | SCREW | |
| 59 | X7028407 | SUPPORT | |
| 60 | F0033815 | SCREW | |
| 61 | D2733070 | SCREW | |
| 62 | L6341731 | ASSY LAMP BASE | |
| 63 | M6341732 | ASSY LAMP BASE | |
| 64 | Z6040512 | LIGHT LAMP | |
| 65 | E0140511 | LIGHT LAMP | |
| 66 | N6540384 | COVER | |
| 67 | A6726396 | COVER | |
| 68 | B0034409 | NUT | |
| 70 | L1133818 | SCREW | |
| 71 | P8652222 | WIRE HARNESS | |
| 72 | N8852252 | WIRE HARNESS | |
| 73 | H0033817 | SCREW | |
| 74 | T2828810 | WASHER | |
| 75 | Q2034571 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
