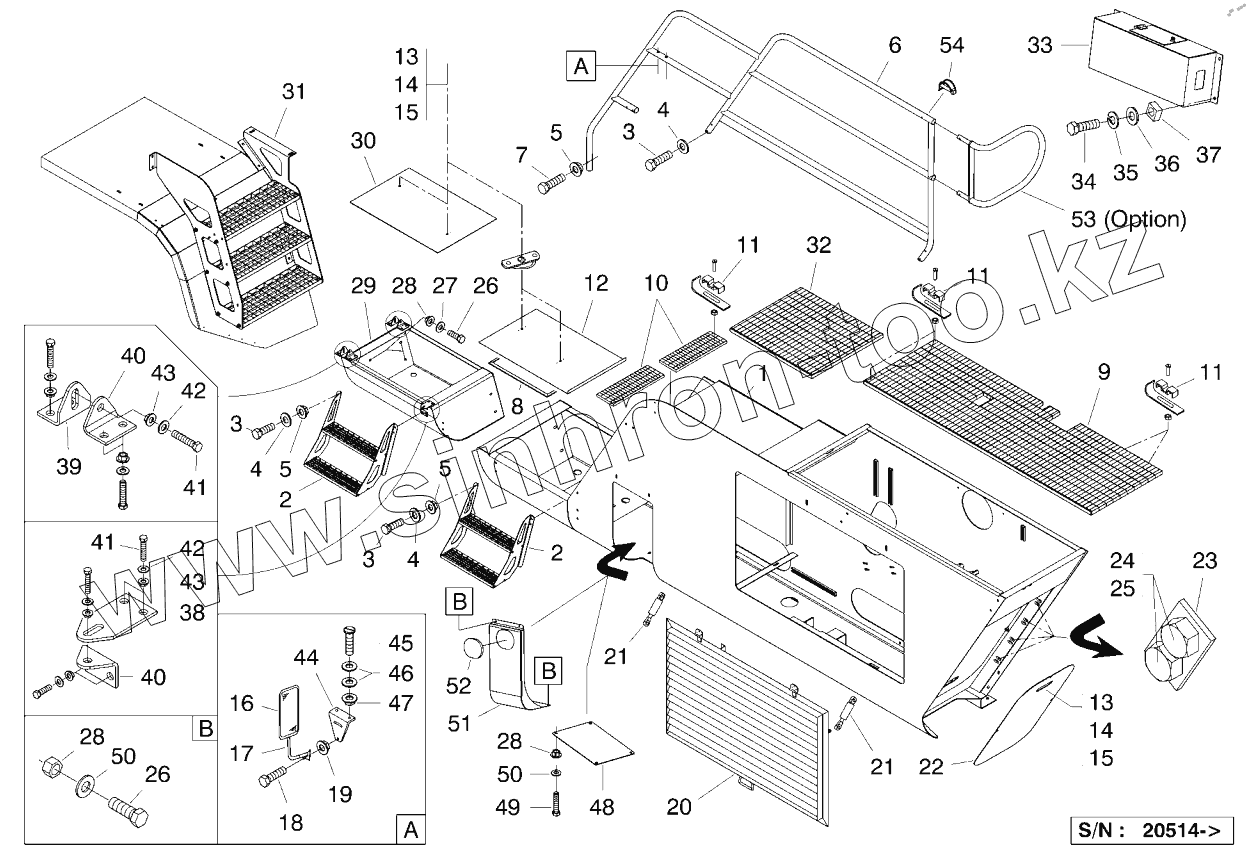

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. LEFT BOX
1
2
2
3
3
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
12
13
13
14
14
15
15
16
17
18
19
20
21
21
22
23
24
25
26
26
27
28
28
28
29
30
31
32
33
34
35
36
37
38
39
40
40
41
41
42
42
43
43
44
45
46
47
48
49
50
50
51
52
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | E7244590 | BOX | |
| 2 | H6226406 | STEP | |
| 3 | V0033829 | SCREW | |
| 4 | T0445435 | WASHER | |
| 5 | E2334550 | NUT | |
| 6 | G7347977 | RAMP | |
| 7 | C0433805 | SCREW | |
| 8 | K6451072 | SEAL | |
| 9 | K6140480 | GRILL | |
| 10 | B6340457 | STEP | |
| 11 | R3436905 | FITTING | |
| 12 | P7644592 | PLATFORM | |
| 13 | E6152044 | CATCH | |
| 14 | W0232550 | SCREW | |
| 15 | Z2934569 | NUT | |
| 16 | V2143274 | MIRROR | |
| 17 | P0526368 | SUPPORT | |
| 18 | D2733070 | SCREW | |
| 19 | D2334549 | NUT | |
| 20 | M6340490 | GRILL | |
| 21 | V0236689 | CYLINDER | |
| 22 | K6844579 | DOOR | |
| 23 | P6522836 | PLATE | |
| 24 | R0033802 | SCREW | |
| 25 | M0133802 | SCREW | |
| 26 | H0033840 | SCREW | |
| 27 | C0035031 | WASHER | |
| 28 | F2334551 | NUT | |
| 29 | G1913583 | CASE LEFT | |
| 30 | N7344579 | PLATEFORM | |
| 31 | U6126413 | STEP | |
| 32 | M6340467 | DUCKBOARDS | |
| 33 | N7144502 | COVER | |
| 34 | E0033814 | SCREW | |
| 35 | C0034709 | WASHER | |
| 36 | V0035002 | WASHER | |
| 37 | N2034569 | NUT | |
| 38 | W8823418 | BRACKET | |
| 39 | E8725698 | BRACKET | |
| 40 | F8725699 | BRACKET | |
| 41 | D3033059 | SCREW | |
| 42 | A0034707 | WASHER | |
| 43 | C2334548 | NUT | |
| 44 | Z8825628 | MIRROR SUPPORT | |
| 45 | A3033079 | SCREW | |
| 46 | T3041468 | WASHER | |
| 47 | Q2034571 | NUT | |
| 48 | W6540415 | PLATE | |
| 49 | T0033873 | SCREW | |
| 50 | X0035004 | WASHER | |
| 51 | C6540351 | COVER | |
| 52 | W6637429 | PLUG | |
| 53 | J7347979 | RAMP | |
| 54 | W0236046 | SAFETY-PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
