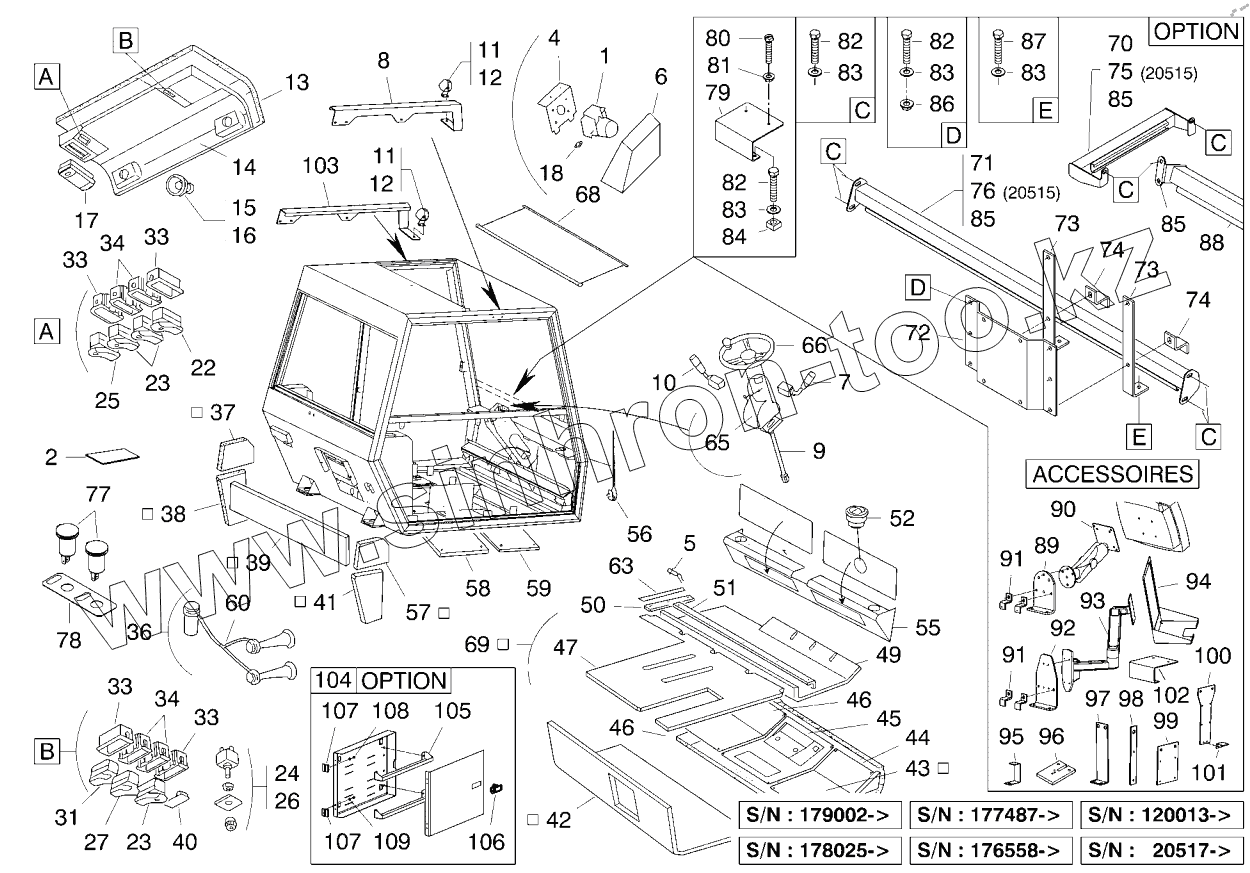

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. INSIDE COWLING CAB

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
22
23
23
24
25
26
27
31
33
33
33
33
34
34
36
37
38
39
40
41
42
43
44
45
46
46
47
49
50
51
52
55
56
57
58
59
60
63
65
66
68
69
70
71
72
73
73
74
74
75
76
77
78
79
80
81
82
82
82
83
83
83
83
84
85
85
85
86
87
88
89
90
91
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
107
108
109
Позиция на иллюстрации Заводской номер детали Название детали
1 D6843308 BLOCK
2 Z7244539 PLATE
4 A7244540 SUPPORT
5 G6941613 DOOR DETECTOR
6 A6540349 HOUSING
7 B6741623 LEVER
8 N7244552 SUPPORT
9 D7643202 COLUMN
10 H6541690 LEVER
11 D6341724 HEADLIGHT
12 K0340501 BULB
13 L6941433 INSULATOR
14 X6941444 COWLING
15 A6641848 LOUD SPEAKER
16 A6440713 GRILL
17 C6341769 DOME LIGHT
18 D0437555 UNION
22 X6641685 SWITCH
23 Q6541674 SWITCH
24 T6641635 SWITCH
25 K6541669 SWITCH
26 E7244038 PLATE
27 F6941612 SWITCH
31 M6541671 SWITCH
33 S6140786 SOCKET
34 T6140787 SOCKET
36 B6141783 HORN
37 M6941434 INSULATOR
38 N6941435 INSULATOR
39 P6941436 INSULATOR
40 T6737407 COVER
41 Q6941437 INSULATOR
42 R6941438 INSULATOR
43 S6941439 INSULATOR
44 D7244543 PLATE
45 E7244544 PLATE
46 F7244545 PLATE
47 V6941465 MAT
49 W6941466 MAT
50 G7244546 PROTECTOR
51 H7244547 CONNECTING STRIP
52 E7643272 NOZZLE
55 B6540350 HOUSING
56 L6943296 ANTENNE
57 V6941442 INSULATOR
58 J7244548 PLATE
59 K7244549 PLATE
60 D6342276 PIPE
63 K1703182 ADHESIVE
65 A6626392 COVER
66 M7243240 WHEEL
68 G7643205 SUNSHADE
69 L7290573 INSULATOR
70 R7644502 SUPPORT
71 Q7644501 SUPPORT
72 V6126414 SUPPORT
73 U8825624 SUPPORT
74 J6426162 BRACKET
75 F7644561 SUPPORT
76 E7644560 SUPPORT
77 E6140705 CONNECTION
78 G7551527 PLATE
79 T6325914 SUPPORT
80 X0232551 SCREW
81 C2334548 NUT
82 D2733070 SCREW
83 V0035002 WASHER
84 N2034569 NUT
85 V6434545 NUT
86 D2334549 NUT
87 F0033815 SCREW
88 R7644571 SUPPORT
89 J8825637 SUPPORT
90 W7843204 ARTICULATED ARM
91 Q6426168 BRACKET
92 E8825633 SUPPORT
93 T7843201 ARTICULATED ARM
94 T6726367 SUPPORT
95 N6426166 SUPPORT
96 J7924106 SUPPORT
97 G8825635 SUPPORT
98 V6622846 SUPPORT
99 F8825634 SUPPORT
100 F6024096 SUPPORT
101 K8825638 ANGLE PIECE
102 T6325914 SUPPORT
103 P7244553 SUPPORT
104 F7444507 BOX
105 G7444508 SUPPORT
106 P6252034 LOCK
107 U6451058 HINGE
108 Z0034108 NUT
109 N0035018 WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
