Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. FRAME
1
2
3
3
4
5
6
6
7
7
7
7
7
8
8
8
8
8
9
9
9
9
9
10
10
10
10
10
11
12
13
14
15
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

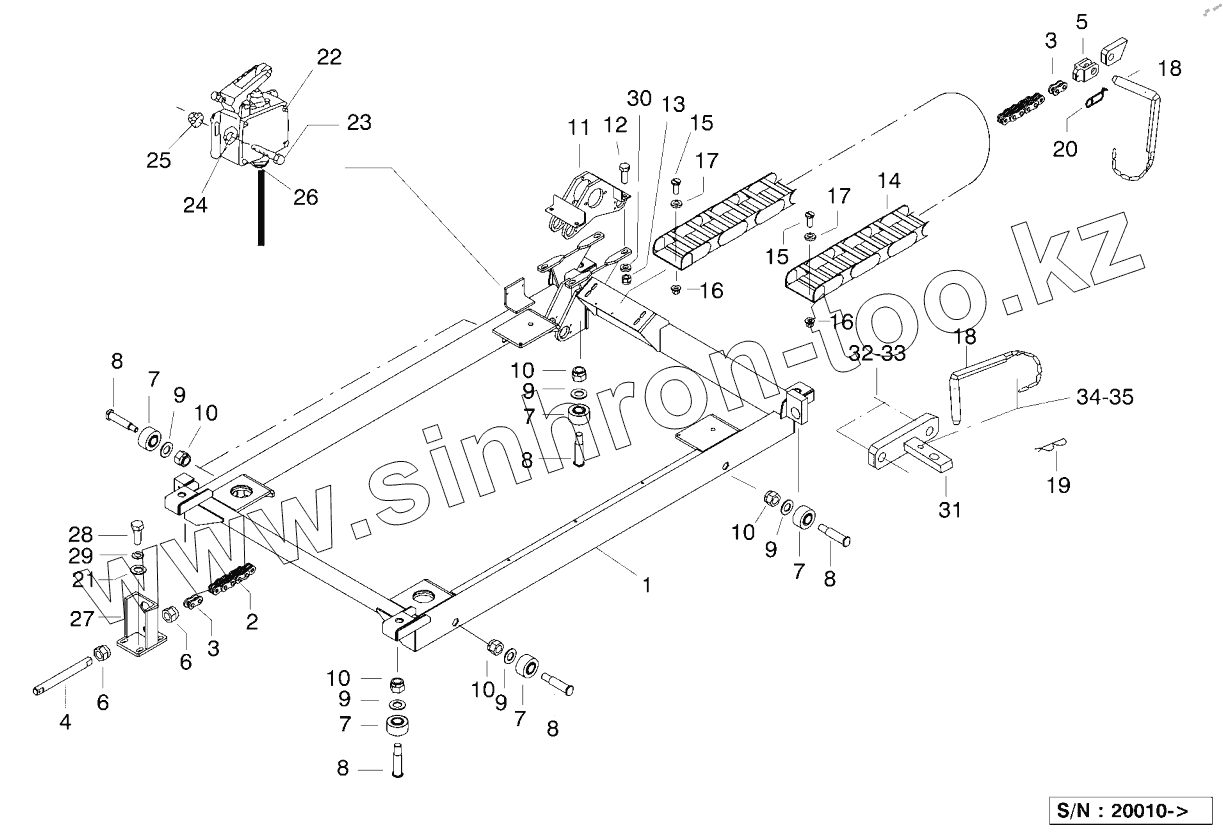

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | T1713586 | CAB SUPPORT CARRIAGE SLIDING | |
| 2 | Q7731303 | DRIVE CHAIN | |
| 3 | E0236743 | LINK | |
| 4 | K6227880 | CHAIN SUPPORT | |
| 5 | A6050840 | FORK | |
| 6 | M0534554 | NUT | |
| 7 | V0239817 | BEARING | |
| 8 | E6227806 | HEADED SHAFT | |
| 9 | F0035011 | WASHER | |
| 10 | L0534553 | NUT | |
| 11 | G6428483 | MOTOR SUPPORT | |
| 12 | R0033848 | SCREW | |
| 13 | N0534532 | NUT | |
| 14 | J8031355 | CHAIN | |
| 15 | B0232554 | SCREW | |
| 16 | D2334549 | NUT | |
| 17 | Q0035020 | WASHER | |
| 18 | L2730961 | PIN | |
| 19 | X0036016 | SPLIT PIN | |
| 20 | L0036005 | SPLIT PIN | |
| 21 | X0035004 | WASHER | |
| 22 | W0141332 | LIMIT SWITCH (OUTR.OPT.) | |
| 23 | Z0033809 | SCREW | |
| 24 | M0235002 | WASHER | |
| 25 | C2334548 | NUT | |
| 26 | B1141491 | PACKING GLAND | |
| 27 | X6428498 | SUPPORT | |
| 28 | H0033840 | SCREW | |
| 29 | G0034713 | WASHER | |
| 30 | Z0035005 | WASHER | |
| 31 | U6428495 | SUPPORT | |
| 32 | H0533837 | SCREW | |
| 33 | F2334551 | NUT | |
| 34 | E0533834 | SCREW | |
| 35 | U0035001 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
