Позиция на иллюстрации
Заводской номер детали
Название детали
1
U6243782

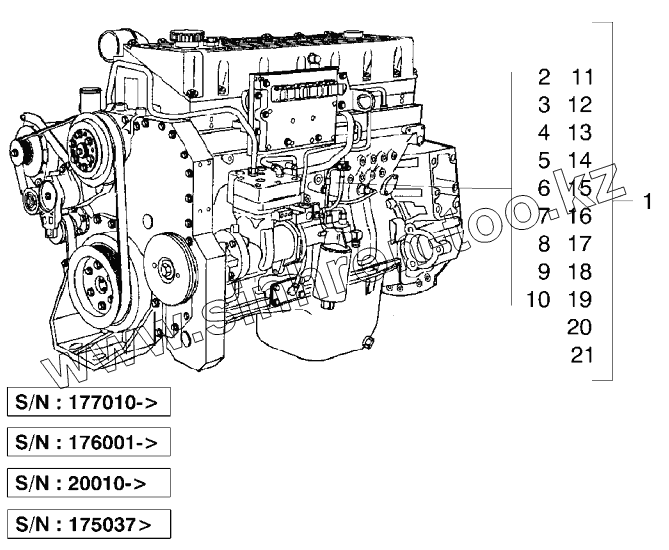

EQUIPMENT MOTOR
2
S6450550
FILTER
3
J6141560
STARTER
4
T6543563
PUIMP
5
D6550587
GAUGE
6
W7243203
INJECTOR
7
K6141561
ALTERNATOR
8
T0338761
HOSE
9
X6537449
PLUG
10
U6543564
WATER PUMP
11
V8549694
PUMP SET
12
T6450551
FILTER
13
Z6537450
PLUG
14
D6151054
SEAL
15
G6150597
WATER FILTER
16
F6841861
THERMOSTAT
17
V6543565
OIL PUMP
18
V6450553
DCA SET CONTROL
19
L6051011
SEAL
20
J7141807
SELECTOR BLOCK
21
R6741637
SENSOR OIL PRESSURE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
