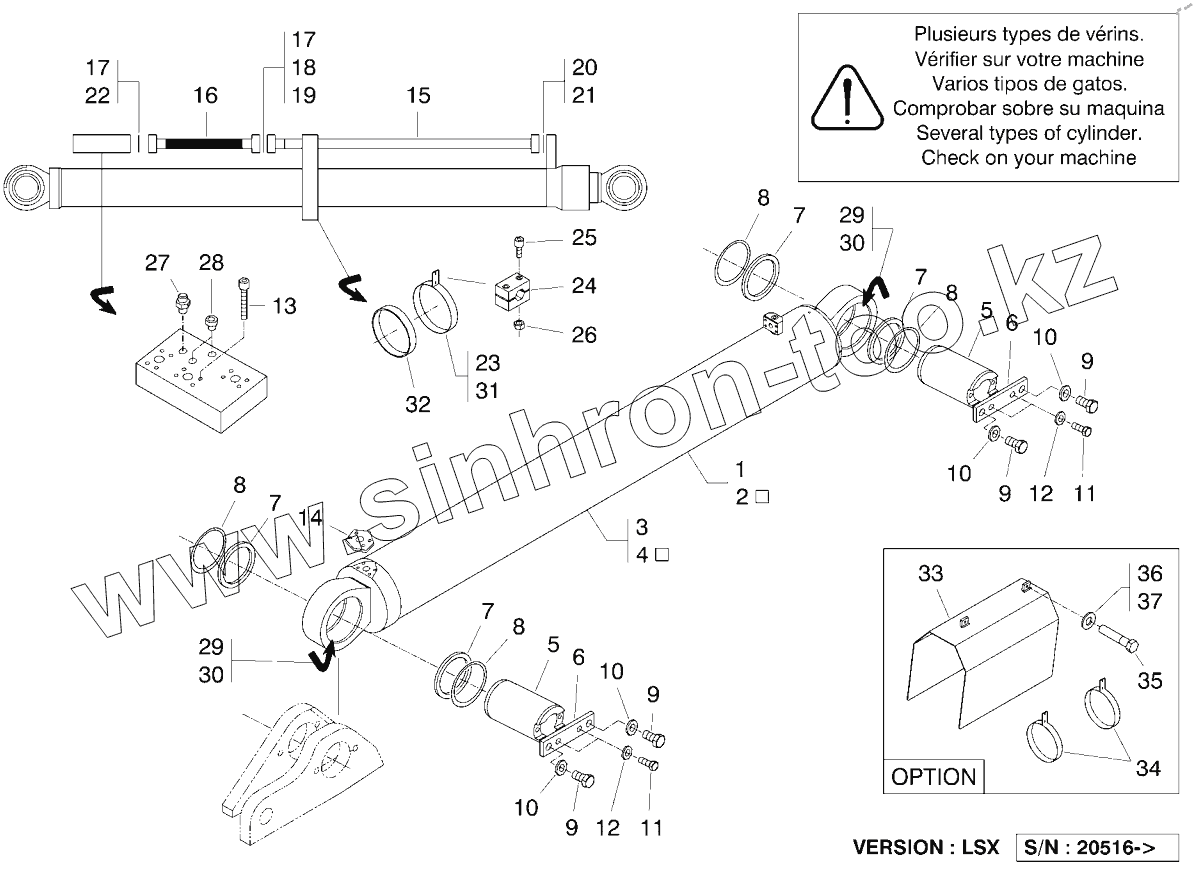

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. CYLINDER ASSY
1
2
3
4
5
5
6
6
7
7
7
7
8
8
8
8
9
9
9
9
10
10
10
10
11
11
12
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Q5846821 | CYLINDER | |
| 2 | S8749607 | SET OF SEALS | |
| 3 | P5846820 | CYLINDER | |
| 4 | L8749601 | SET OF SEALS | |
| 5 | D6427698 | PIN | |
| 6 | Q0223091 | PLATE | |
| 7 | X6128877 | SPACER | |
| 8 | N6230482 | O RING | |
| 9 | N1733039 | SCREW | |
| 10 | Q0528899 | WASHER | |
| 11 | X0033854 | SCREW | |
| 12 | P0528898 | WASHER | |
| 13 | G6232914 | SCREW | |
| 14 | A6151074 | PLATE | |
| 15 | V7337617 | PIPE | |
| 16 | V6742239 | HOSE | |
| 17 | D0330421 | O RING | |
| 18 | H6232984 | SCREW | |
| 19 | U0234158 | NUT | |
| 20 | L1130483 | PIPE | |
| 21 | J6232985 | SCREW | |
| 22 | G6232983 | SCREW | |
| 23 | H6536998 | MOUNTING CLIP | |
| 24 | B4120382 | CONNECTION | |
| 25 | E0232902 | SCREW | |
| 26 | C2334548 | NUT | |
| 27 | D0437555 | UNION | |
| 28 | L2437481 | PLUG | |
| 29 | D0340035 | JOINT | |
| 30 | G0536251 | LOCKING RING | |
| 31 | C6636928 | COLLAR | |
| 32 | V3440428 | STRIP | |
| 33 | M7144501 | COVER | |
| 34 | L6636936 | MOUNTING CLIP | |
| 35 | T0033827 | SCREW | |
| 36 | E0034711 | WASHER | |
| 37 | W0035003 | WASHER |
