Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. CONTROL VALVE

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано CD TFC45LX hc SIDER (2013) RT35-1 (2018) TC-29 (2014) TC-48 (2013) TC-50 (2013) TC35 (2015) TL-260 (2009) TL-310 (2013) TLB-815 (2010) TLB-825 (2018) TLB-840 (2010) TLB-890 (часть 1) (2013) TLB-890 (часть 2) (2013) TLB-990 Tier 3 (2013) TLB840SM, TLB840PM (2013)

Схема > Не выбрано 01F-0000-040-10 BOOM JIB HYDRAULIC CIRCUIT HYDRAULIC CIRCUIT ELECTRICAL EQUIPMENT JIB SECTION ARTICULATION + CYLINDER FITTING THE BEARING CABLE SUPPORT TELESCOP. ACCESSORIES CYLINDER ASSY CYLINDER ASSY SLIDING CABLE WINDER CABLE WINDER LIGHTS TELES CYLINDER VALVE RAISING CYLINDER VALVE SPREADER VALVE 20F-0000-022-1 SPREADER HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT ELECTRIC WIRE HARNES SLEWING RING ROTATION MODULE ONLY (OPTION) SLEWING REDUCTION CHASSIS-BEARING SIDE SHIFT CYLINDER ELECT. VALVE ELECT. VALVE ELECTR. VALVE ELECTR. VALVE REDUCER REDUCER 20F-0000-027-0 SPREADER HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT ELECTRIC WIRE HARNES SLEWING RING ROTATION MODULE ONLY (OPTION) SLEWING REDUCTION PLIERS/GRAPPLE SIDE SHIFT CYLINDER ELECT. VALVE ELECT. VALVE ELECTR. VALVE ELECTR. VALVE REDUCER REDUCER 80F-0000-026-0 ADHESIVE ADHESIVE ADHESIVE 01P-0000-063-0 CHASSIS EQUIPMENT ELECT WIRE HARNESS CHASSIS COVER FRAME MOTOR SUPPORT SLIPPER LEFT BOX LIGHTS-WINGS-MIRROR C-WEIGHT 05P-0000-048-3 ELEC. HYD. MOVED CAB MOVED CAB WIRE HARNESS HEATING-VENTILATION INSIDE COWLING CAB CABIN DOOR AS. CABIN DOOR AS. GLASS-BRUSH SEAT PEDAL CONTROL PANEL-SWITCH REAR FUSES PLATE 10P-0000-057-1 MOTOR OIL FILTER CIRCUIT EQUIPMENT MOTOR EQUIPMENT MOTOR DONALDSON EXHAUST AIR FILTER FUEL CIRCUIT BATTERY PUMP PUMP 15P-0000-026-1 GEAR BOX GEAR BOX ASSEMBLY TURBINE SHAFT INPUT SHAFT GEAR PUMP DRIVE GROUP WHEEL GROUP FLEXPLATE BAND FW-REV / 2-3rd 4th SHAFT 1ST GEAR GROUP FORWARD SHAFT 3RD CLUTCH SHAFT 3RD SPEED GEAR REV / 2ND SHAFT 1ST SPEED SHAFT 4TH SPEED SHAFT 1ST SHAFT AND GEAR OUTPUT SHAFT FILTER ASSEMBLY PUMP ADAPTATION CONVERTER HOUSING TRANSMISSION CASE GR REGULATOR VALVE CONTROL VALVE ASSY ASSY PUMP DRIVE SLEEVE 30P-0000-065-0 AXLE-TIPPING SAFETY DRIVING AXLE HYD. CIRCUIT STEERING PLANETERY HOUSING 30P-0000-050-0 KESSLER DRIVING AXLE DRIVING AXLE DRIWING AXLE DIFFERENTIAL - CARRI. REDUCER BRAKE PARKING BRAKE BRAKE CYLINDER 30P-0000-062-0 REAR OMCI AXLE DRIVING AXLE AXLE MOUNTING WHEEL HUB AXLE 35P-0000-027-0 SET OF WHEELS WHEEL WHEEL WHEEL 40P-0000-032-1 U.JOINT U. JOINT HYD PUMP - FRONT AXLE 58P-0000-012-6 HYDRAULIC EQUIPMENT HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUIT HYD. CIRCUITITALIE HYD. CIRCUIT HYD. CIRCUIT VALVE AND L90LS ASSY VALVE M402LS ASSY BRAKE FILTER OIL FILTER OIL FILTER (STEERING) BLOC POWER CONTROL BLOC POWER CONTROL VALVE VALVE AND L90LS ASSY PRIORITY VALVE BSP CAP KIT VALVE KIT PORT RELIEF KIT PILOT REDUCER KIT BRACKET KIT BRACKET KIT VALVE BANK VALVE BANK VALVE BANK LS VALVE BANK VALVE BANK (HYD. COVER KIT) VALVE BANK (ELEC. COVER KIT) VALVE BANK (PIN KIT) PUMP 145+75CM3 (DETAILS 145 CM3) PUMP 145+75 CM3 (DETAILS 75 CM3) 60P-0000-039-0 HYD + DIESEL TANK UNION + COLLECTOR OIL + DIESEL TANK 65P-0000-026-3 COOLER COOLER HYD. CIRCUIT OIL GEAR BOX COOLER WATER HYD.COOLER TURBO AIR COOLER WATER-AIR-OIL-COOLER BRAKE OIL COOLER VALVE COOLER EXPANSION TANK WATER-AIR-OIL COOLER BRAKE-OIL COOLER 70P-0000-029-0 BRAKING BRAKE HYD. CIRCUIT CONTROL VALVE ACCUMULATOR 80P-0000-049-0 ADHESIVE SAFETY ADHESIVE ADHESIVE ADHESIVE 90P-0000-083-0 TOOL KIT OPTION TOOL KIT 90P-0000-084-0 HYD. LIFTING JACK OPTION HYD. LIFTING JACK 90P-0000-085-2 REAR FRONT CAMERA OPTION REAR CAMERA OPT. REAR CAMERA OPT. FRONT CAMERA 90P-0000-226-0 XENON LIGHTS OPTION XENON LIGHTS

1

2

2

3

4

5

6

7

8

9

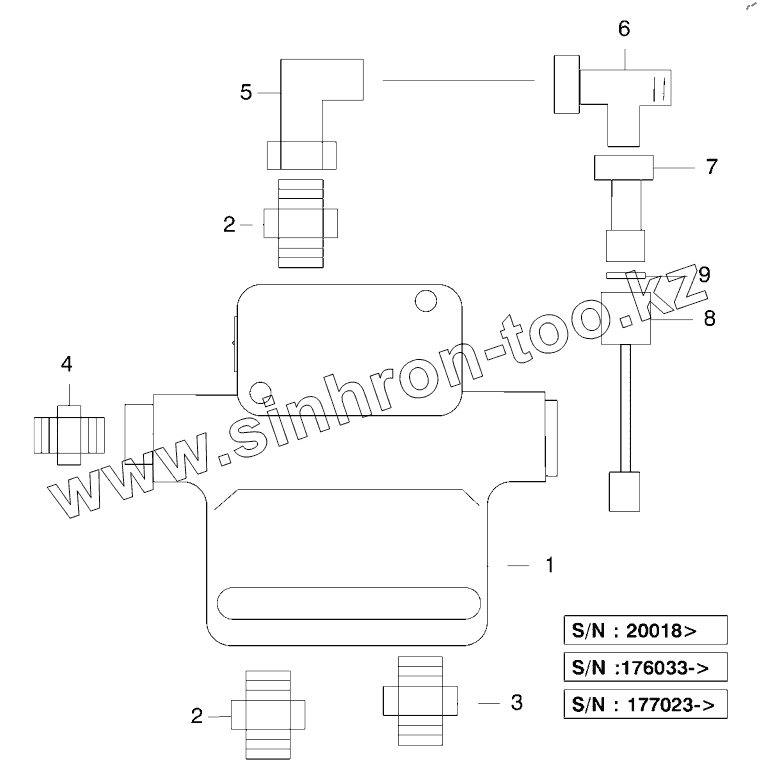

Позиция на иллюстрации	Заводской номер детали		Название детали
1	H7143324		VALVE
2	P4337537		UNION
3	V7937526		UNION
4	A4937571		UNION
5	C0337044		ANGLE PIECE
6	W1137278		T PIECE
7	E7837599		RACOR
8	G6141581		SENSOR
9	T0344419		SEAL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
