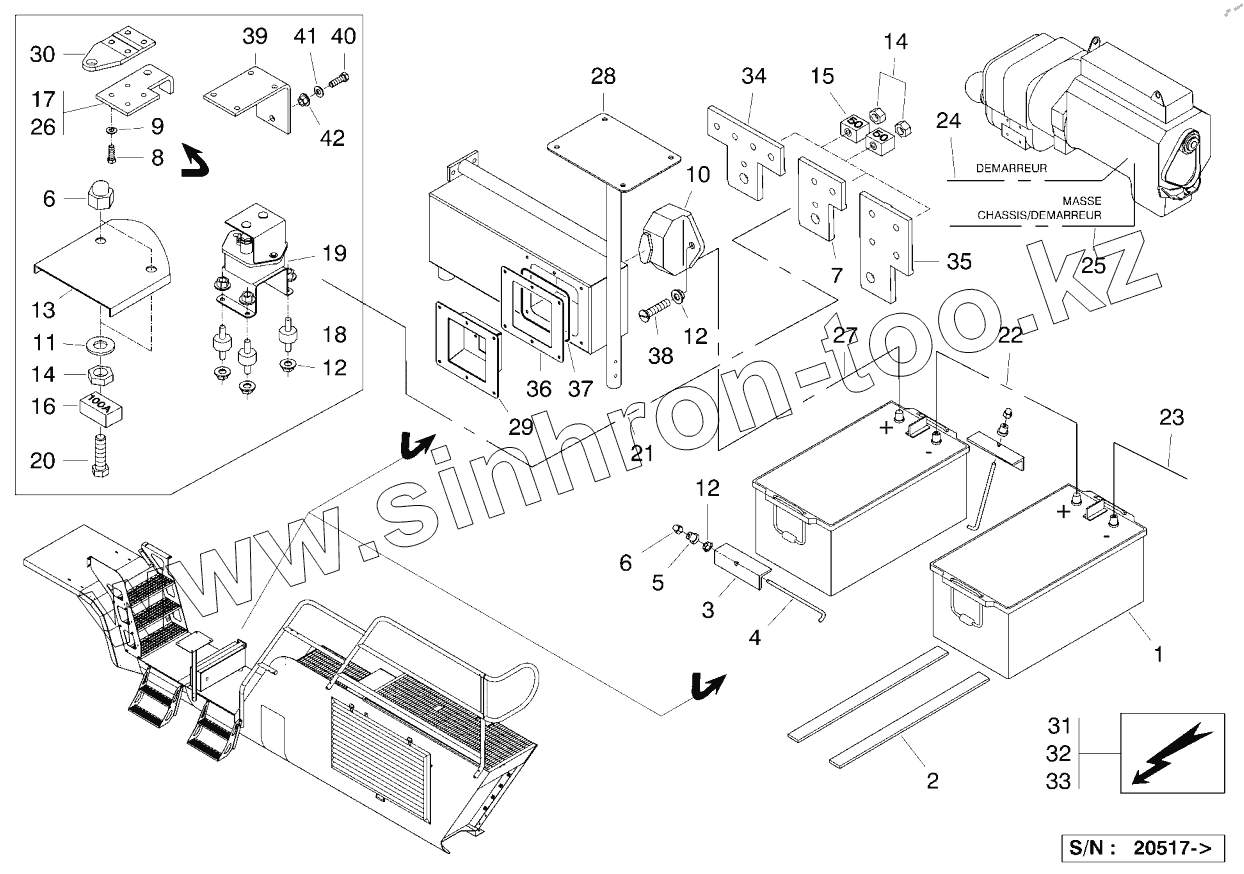

Каталог запасных частей к технике: RM-Terex CD TFC45LX hc SIDER. BATTERY
1
2
3
4
5
6
6
7
8
9
10
11
12
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | M6441897 | BATTERY | |
| 2 | E6741488 | STRIP | |
| 3 | E6225598 | ANGLE IRON | |
| 4 | C0330627 | TIE BAR | |
| 5 | G6540447 | NUT | |
| 6 | X6434570 | NUT | |
| 7 | T2741226 | SUPPORT | |
| 8 | J0033818 | SCREW | |
| 9 | T0234801 | WASHER | |
| 10 | L0041203 | CIRCUIT BREAKER | |
| 11 | R1441494 | WASHER | |
| 12 | D2334549 | NUT | |
| 13 | L6425704 | PROTECTOR | |
| 14 | Q6334559 | NUT | |
| 15 | A2641297 | FUSE | |
| 16 | C2641299 | FUSE | |
| 17 | Z2641296 | SUPPORT | |
| 18 | E1141494 | SHOCK-ABSORBE | |
| 19 | H0241139 | RELAY | |
| 20 | V6733844 | SCREW | |
| 21 | S8952237 | CABLE | |
| 22 | T6252245 | CABLE | |
| 23 | U6252246 | CABLE | |
| 24 | X8452245 | CABLE | |
| 25 | X6252249 | CABLE | |
| 26 | L2440632 | DIODE | |
| 27 | R8952236 | CABLE | |
| 28 | L2613592 | FILTER SUPPORT | |
| 29 | E6540376 | CIRCUIT BREAKER SUPPORT | |
| 30 | J2741217 | SUPPORT | |
| 31 | R8652224 | ELECT WIRE HARNESS | |
| 32 | T8652226 | CABLE | |
| 33 | S8652225 | CABLE | |
| 34 | U2741227 | SUPPORT | |
| 35 | S2741225 | SUPPORT | |
| 36 | F6551049 | SEAL | |
| 37 | P6451076 | PROFILE | |
| 38 | B0232554 | SCREW | |
| 39 | H8725632 | SUPPORT | |
| 40 | T0033827 | SCREW | |
| 41 | W0035003 | WASHER | |
| 42 | E2334550 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
