Каталог запасных частей к технике: PENGPU PengPu PD-320. TRANSMISSION PUMP PD320Y-1 PD320Y-2

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано PengPu PD-165 (2010) PengPu PD-220 (2010) PengPu PD-320 (2010)

Схема > Не выбрано ENGINE MOUNT PD320Y-1 PD320Y-2 POEWR TAKE OFF PD320Y-1 PD320Y-2 FLYWHEEL AND FLYWHEEL HOUSING PD320Y-1 PD320Y-2 POEWR TAKE OFF PD320Y-1 PD320Y-2 FAN AND BELT PD320Y-1 PD320Y-2 INTAKE ASSY PD320Y-1 PD320Y-2 EXHAUST ASSY PD320Y-1 PD320Y-2 FUEL CONTROL LEVER PD320Y-1 PD320Y-2 FUEL CONTROL LINKAGE PD320Y-1 PD320Y-2 BRAKE PEDAL PD320Y-1 PD320Y-2 RADIATOR PD320Y-1 PD320Y-2 RADIATOR FAN GUARD AND NET PD320Y-1 PD320Y-2 OIL COOLER PD320Y-1 PD320Y-2 FUEL TANK FUEL PIPING BATTERY GAUGE PANEL ELECTRICAL SYSTEM ELECTRICAL SYSTEM TORQUE CONVERTER HOUSING AND REGULATOR VALVE PD320-1 PD320-2 TURBINE SHAFT AND STATOR PD320Y-1 PD320Y-2 TORQFLOW TRANSMISSION CASE PD320Y-1 PD320Y-2 PLANETRAY GEAR AND SHAFT PD320Y-1 PD320Y-2 1/2 PLANETRAY GEAR AND SHAFT PD320Y-1 PD320Y-2 2/2 TRANSFER CASE PD320Y-1 PD320Y-2 TRANSMISSION CONTROL VALVE PD320Y-1 PD320Y-2 COVER AND VALVE CONTROL LEVER PD320Y-1 PD320Y-2 PRESSURE REGULATOR VALVE PD320Y-1 PD320Y-2 GEARSHIFT LEVER PD320Y-1 PD320Y-2 1/2 GEARSHIFT LEVER PD320Y-1 PD320Y-2 2/2 GEARSHIFT LEVER PD320Y-1 PD320Y-2 TRANSMISSION PUMP PD320Y-1 PD320Y-2 TRANSMISSION OIL FILTER PD320Y-1 PD320Y-2 TORQUE CONVERTER PIPING PD320Y-1 PD320Y-2 TORQFLOW TRANSMISSION PIPING PD320Y-1 PD320Y-2 STEERING CASE AND MAIN FRAME PD320Y PD320Y-1 OIL FILLER AND LEVER GAUGE PD320Y PD320Y-1 BEVEL GEAR AND SHAFT PD320Y PD320Y-1 STEERING CLUTCH PD320Y-1 PD320Y-2 UNIVERSAL JOINT PD320Y-1 PD320Y-2 BRAKE BAND AND LINKAGE PD320Y-1 PD320Y-2 BRAKE BOOSTER AND PIPING PD320Y-1 PD320Y-2 1/2 STEERING CONTROL LEVER PD320Y-l PD320Y-2 DECELERATOR PEDAL PD320Y-1 PD320Y-2 BRAKE LINKAGE PD320Y-1 PD320Y-2 PARKING BRAKE LINKAGE PD320Y-l PD320Y-2 STREEING PUMP PD320Y-1 PD320Y-2 OIL STRAINER PD320Y-1 PD320Y-2 STEERING OIL FILTER PD320Y-l PD320Y-2 STEERING CONTROL VALVE PD320Y-1 PD320Y-2 MAIN RELIEF VALVE STEERING OIL PIPING PD320Y-1 PD320Y-2 l/3 STEERING OIL PIPING PD320Y-1 PD320Y-2 2/3 STREEING OIL PIPING PD320Y-1 PD320Y-2 3/3 FINAL DRIVE CASE PD320Y-l PD320Y-2 FINAL DRIVE GEAR SHAFT AND SPROCKET PD320Y-l PD320Y-2 TRACK ROLLER FRAME PD320Y-1 PD320Y-2 RECOIL SPRING PD320Y-1 PD320Y-2 TRACK ROLLER FRAME COVER PD320Y-1 PD320Y-2 TRACK ROLLER GUARD PD320Y-1 PD320Y-2 FRONT IDLER PD320Y-1 PD320Y-2 TRACK ROLLER PD320Y-1 PD320Y-2 CARRIER ROLLER PD320Y-1 PD320Y-2 TRACK SHOE MASTER PIN TYPESTD. PD320Y-l PD320Y-2 ENGINE SIDE COVER L.H. PD320Y-1 PD320Y-2 ENGINE SIDE GOVER L.H. PD320Y-1 PD320Y-2 RADIATOR GUARD PD320Y-1 PD320Y-2 ENGINE HOOD PD320Y-1 PD320Y-2 FENDER PD320Y-1 1/2 FENDER PD320Y-1 2/2 FENDER PD320Y-2 1/2 FENDER PD320Y-2 2/2 SUPPORT AND COVER PD320Y-1 SUPPORT AND COVER PD320Y-2 FLOOR PLATE PD320Y-1 FLOOR PLATE PD320Y-2 BOTTOM GUADE PD320Y-1 PD320Y-2 OPERATOR SEAT MARKS PLATES AND TOOLS PD320Y-1 PD320Y-2 EQUALIZER BAR PD320Y-l PD320Y-2 CYLINDER STAY PD320Y-1 PD320Y-2 DRAWBAR PD320Y-1 PD320Y-2 HYDRAULIC PUMP PD320Y-1 HYDRAULIC TANK PD320Y-1 1/2 HYDRAULIC TANK PD320Y-1 2/2 HYDRAULIC TANK PD320Y-2 BLADE LIFT AND RIPPER CONTROL VALVE PD320Y-1 1/2 BLADE LIFT AND RIPPER CONTROL VALVE PD320Y-1 2/2 BLADE TILT CONTROL VALVE PD320Y-1 BLADE LILT CYLINDER PD320Y-D QUICK DROP VALVE PD320Y-1 PD320Y-2 HYDRAULIC PIPING PD320Y-1 HYDRAULIC PIPING PD320Y-2 HYDRAULIC PIPING PD320Y-2 HYDRAULIC PIPING PD320Y-2 HYDRAULIC PIPING PD320Y-2 HYDRAULIC PIPING FOR BLADE PIPING PD320Y-2 HYDRAULIC PIPING PD320Y-1 FOR BLADE LIFT 1/2 HYDRAULIC PIPING PD320Y-2 FOR BLADE LIFT 1/2 HYDRAULIC PIPING PD320Y-1 PD320Y-2 FOR BLADE TILT 2/2 HYDRAULIC PIPING PD320Y-1 FOR BLADE TILT AND RIPPER HYDRAULIC PIPING PD320Y-2 FOR BLADE TILT BLADE LIFT SERVO VALVE PD320Y-1 BLADE TILT AND RIPPER SERVO VALVE PD320Y-1 SERVO VALVE PIPING pd320y-1 FOR BLADE LIFT SERVO VALVE AND VALVE SEAT PD320Y-1 BLADE CONTROL LEVER PD320Y-1 BLADE CONTROL LINKAGE PD320Y-1 BLADE TILT AND RIPPER CONTROL LINKAGE PD320Y-1 STRAIGHT TILT BLADE PD320Y-1 PD320Y-2 STRAIGHT TILT FRAME PD320Y-1 PD320Y-2 ANGLE BLADE PD320Y-1 C-FRAME PD320Y-1 ROLL OVER PROTECTIVE STRUCTURE BRACKET PD320Y-1 ROLL OVER PROTECTIVE STRUCTURE BRACKET PD320Y-2 ROLL OVER PROTECTIVE STRUCTURE CAB PD320Y-1 PD320Y-2 ROLL OVER PROTECTIVE STRUCTURE CAB PD320Y-1 PD320Y-2 2/3 ROLL OVER PROTECTIVE STRUCTURE CAB PD320Y-1 PD320Y-2 RIPPER SHANK BEAM AND LINK FOR MULTITYPE PD320Y-1 PD320Y-2 LIFT CYLINDER PD320Y-1 PD320Y-2 FOR RIPPER TILT CYLINDER FOR RIPPER PD320Y-L PD320Y-2 SELECTOR VALVE PD320Y-1 PD320Y-2 MAIN PIPING PD320Y-1 CYLINDER PIPING PD320Y-1 MAIN PIPING PD320Y-1 RIPPER PIPING PD320Y-2 RIPPER CONTROL LEVER PD320Y-1 PD320Y-2 RIPPER FOR MULTITYPE PD320Y-1 RIPPER FOR MULTITYPE PD320Y-2 BATTERY GAUGE PANEL ELECTRICAL SYSTEM RIPPER SHANK BEAM AND LINK FOR SINGLE TYPE PD320Y-1 PD320Y-2 ELECTRICAL SYSTEM RIPPER CINTROL LEVER PD320Y-1 PD320Y-2 PIN PULLER PIPING PD320Y-1 PIN PULLER PIPING PD320Y-2 PIN PULLER LINKAGE PD320Y-1 PD320Y-2 PIN PULLER VALVE PD320Y-1 PD320Y-2 PIN PULLER CYLINDER PD320Y-1 PD320Y-2 SINGLE RIPPER PD320Y-1 SINGLE RIPPER PD320Y-2 SYPHON TIE-IN ASSY PD220Y-1 PD220YS ELECTRICITY CALEFACTION SET PD220Y-1 PD220YS REAR GUARD PD320Y-1 BULLDOZER RAKE PD320Y-1 PD320Y-2 BULLDOZER RAKE PD320Y-1 PD320Y-2

1

2

3

4

5

6

7

8

9

10

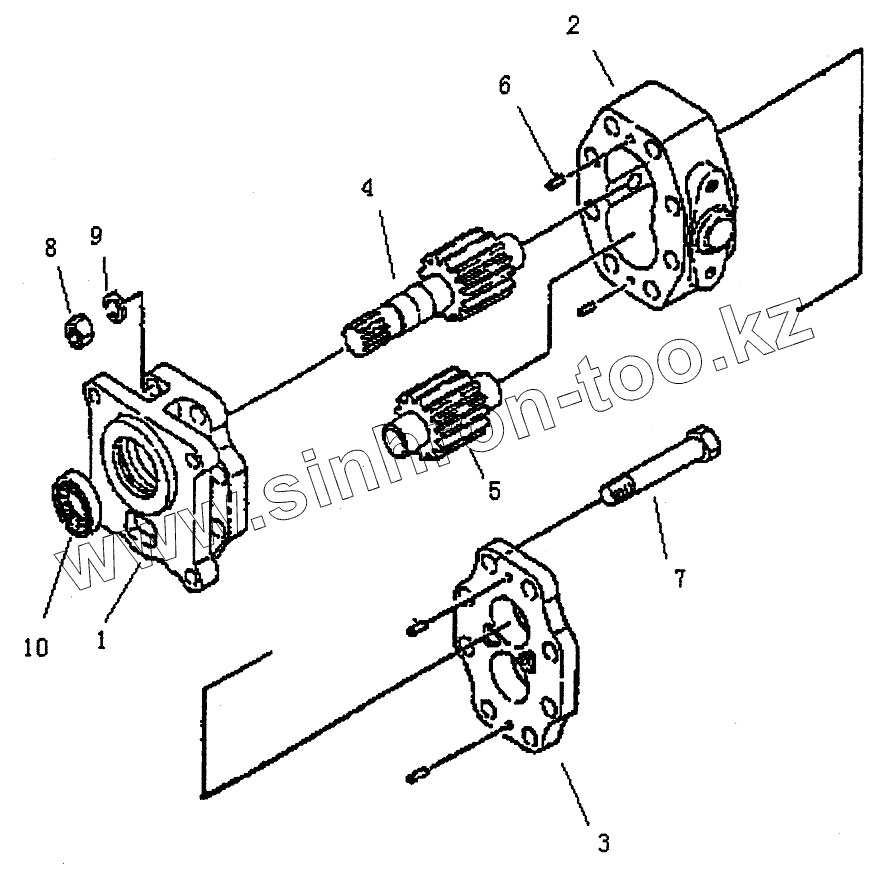

Позиция на иллюстрации	Заводской номер детали		Название детали
1	07430-71113		BRACKET ASSY
2	07433-71021		CASE
3	07430-71132		HOUSING ASSY
4	07433-71042		GEAR
5	07433-71052		GEAR
6	04020-00820		PIN, DOWEL
7	01050-51295		BOLT
8	01582-11210		NUT
9	01602-21236		WASHER, SPRING
10	07430-71160		SEAL

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
