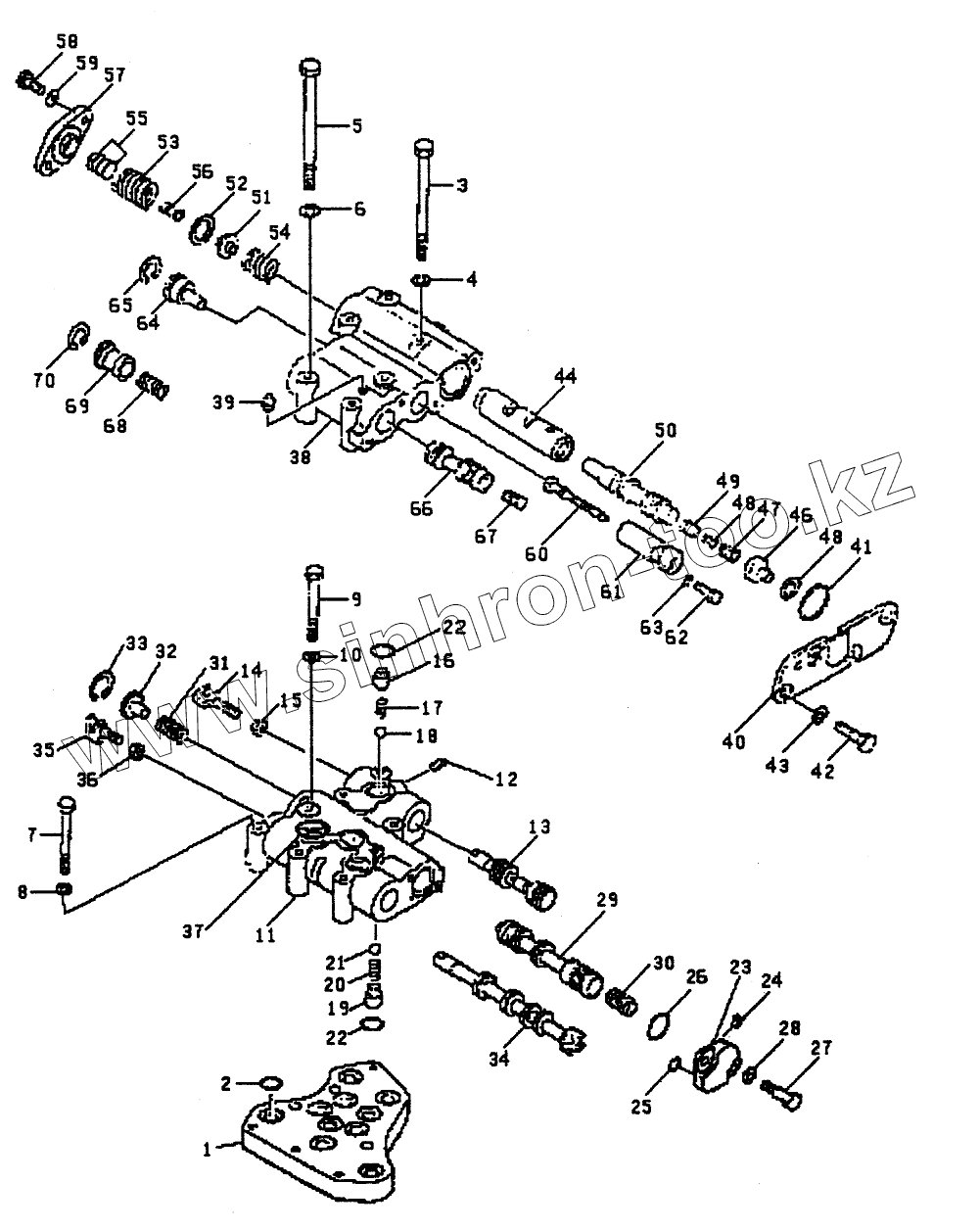

Каталог запасных частей к технике: PENGPU PengPu PD-320. TRANSMISSION CONTROL VALVE PD320Y-1 PD320Y-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 155-15-15002 | 155-15-15002 | CONTROL | |
| 175-15-00216 | 175-15-00216 | TORQFLOW TRANSMISSION ASSY | |
| 07000-63025 | 07000-63025 | O-RING | |
| 1 | 175-15-45110 | VALVE, SEAL | |
| 2 | 07000-63022 | O-RING | |
| 3 | 175-15-45180 | BOLT | |
| 4 | 01602-01030 | WASHER | |
| 5 | 175-15-45170 | BOLT | |
| 6 | 01602-01030 | WASHER | |
| 7 | 175-15-45160 | BOLT | |
| 8 | 01602-01030 | WASHER | |
| 9 | 01010-31075 | BOLT | |
| 10 | 01602-01030 | WASHER | |
| 11 | 175-15-45212 | BODY | |
| 12 | 144-15-25210 | PLUG | |
| 13 | 175-15-45220 | SPOOL | |
| 14 | 09363-01053 | YOKE | |
| 15 | 01580-11008 | NUT | |
| 16 | 175-15-45260-01 | DETENT | |
| 17 | 195-15-15680 | spring | |
| 18 | 04260-00952 | BALL, STEEL | |
| 19 | 195-15-15671-01 | DETENT | |
| 20 | 195-15-15680 | spring | |
| 21 | 04260-00952 | BALL, STEEL | |
| 22 | 00700-63022 | O-RING | |
| 23 | 175-15-45471 | COVER | |
| 24 | 07042-00108 | PLUG | |
| 25 | 07000-62016 | O-RING | |
| 26 | 07000-63032 | O-RING | |
| 27 | 01010-31025 | BOLT | |
| 28 | 01602-01030 | WASHER | |
| 29 | 175-15-45420 | SPOOL | |
| 30 | 175-15-35430 | PISTON | |
| 31 | 195-15-15440 | SPRING | |
| 32 | 175-15-45450 | RETAINER | |
| 33 | 04065-03515 | RING, SNAP | |
| 34 | 175-15-45231 | SPOOL | |
| 35 | 09363-01053 | YOKE | |
| 36 | 01580-11008 | NUT | |
| 37 | 07000-63022 | O-RING | |
| 38 | 155-15-15410 | BODY, VALVE | |
| 39 | 07042-00108 | PLUG | |
| 40 | 155-15-15850 | COVER | |
| 41 | 07000-63040 | O-RING | |
| 42 | 01010-31025 | BOLT | |
| 43 | 01602-01030 | WASHER | |
| 44 | 145-14-43381 | VALV, modulating | |
| 45 | 130-09-15170 | RING, SNAP | |
| 46 | 145-14-23180 | STOPPER | |
| 47 | 175-15-15550 | VALVE | |
| 48 | 180-14-25560 | SPRING | |
| 49 | 175-15-15540 | VALVE | |
| 50 | 145-14-43331 | SPOOL | |
| 51 | 145-14-43340 | SEAT | |
| 52 | 145-14-33450 | WASHER | |
| 53 | 145-14-33351 | SPRING | |
| 54 | 145-14-33430 | SPRING | |
| 55 | 145-14-43370 | SHIM | |
| 56 | 145-14-33420 | SPRING | |
| 57 | 144-15-25330 | COVER | |
| 58 | 01010-31025 | BOLT | |
| 59 | 01602-01030 | WASHER | |
| 60 | 155-15-15320 | VALVE LEVER | |
| 61 | 155-15-15351 | SLEEVE | |
| 62 | 155-15-15370 | BOLT | |
| 63 | 01602-00619 | WASHER, SPRING | |
| 64 | 155-15-15360 | STOPPER | |
| 65 | 04065-03515 | RING, SNAP | |
| 66 | 175-15-45380 | SPOOL | |
| 67 | 145-14-23720 | PLUG | |
| 68 | 234-15-15230 | SPRING | |
| 69 | 175-15-45390 | RETAINER | |
| 70 | 04065-03515 | RING, SNAP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
