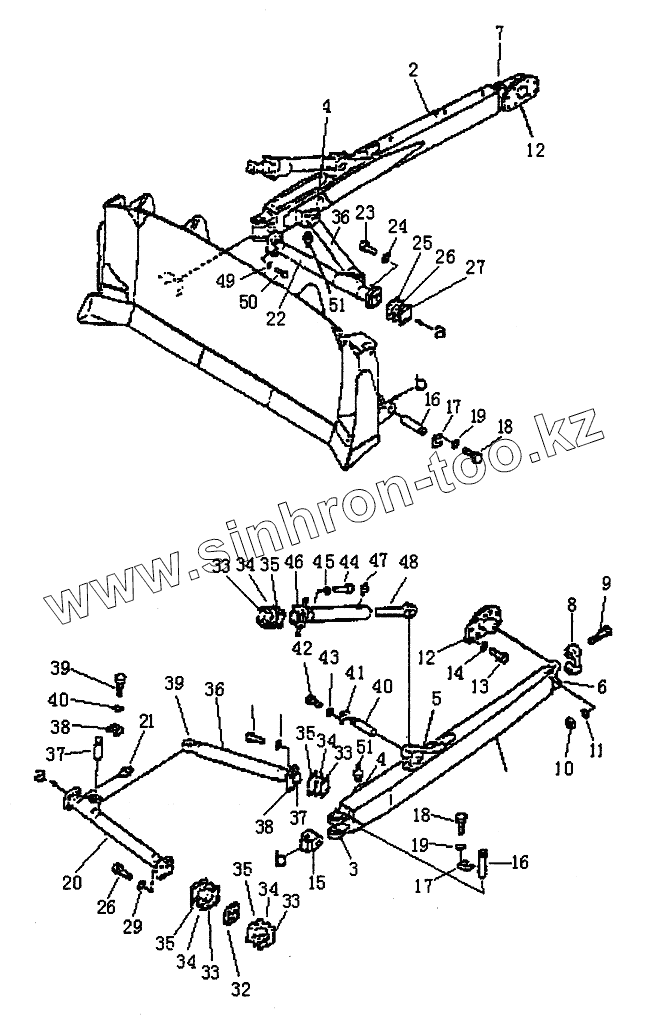

Каталог запасных частей к технике: PENGPU PengPu PD-320. STRAIGHT TILT FRAME PD320Y-1 PD320Y-2
1
2
3
4
4
5
6
7
8
9
10
11
12
12
13
14
15
16
16
17
17
18
18
19
19
20
21
22
23
24
25
26
26
27
28
29
29
32
33
33
33
33
34
34
34
34
35
35
35
35
36
36
37
37
38
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 175-71-00225 | 175-71-00225 | STRAIGHT TILT FRAME ASSY, R.H. | |
| 175-71-00461 | 175-71-00461 | BRACKET AND CAP ASSY , R.H. | |
| 175-71-00321 | 175-71-00321 | BRACKET AND CAP ASSY , L.H. | |
| 175-71-00232 | 175-71-00232 | BRACE ASSY | |
| 175-71-00302 | 175-71-00302 | SHIM ASSY | |
| 175-71-00294 | 175-71-00294 | SHIM ASSY | |
| 175-71-31660 | 175-71-31660 | BRACKET, R.H | |
| 171-71-31620 | 171-71-31620 | SUPPORT, L.H | |
| 175-71-00215 | 175-71-00215 | STRAIGHT TILT FRAME ASSY, L.H. | |
| 1 | 175-71-31151 | FRAME .straight tilt, | |
| 2 | 175-71-31164 | FRAME .straight tilt, | |
| 3 | 171-71-21181 | BRACKET | |
| 4 | 171-71-31171 | SUPP0RT, L.H | |
| 5 | 175-71-31650 | BRACKET, L.H | |
| 6 | 175-71-11272 | CAGE, BEARING | |
| 7 | 175-71-31311 | BRACKET | |
| 8 | 175-71-11482 | CAP | |
| 9 | 175-71-11491 | BOLT | |
| 10 | 175-71-11520 | NUT | |
| 11 | 01643-32260 | WASHER | |
| 12 | 175-70-23133 | STUP, BALL | |
| 13 | 01010-52450 | BOLT | |
| 14 | 01643-32460 | WASHER | |
| 15 | 175-71-21261 | JOINT | |
| 16 | 175-71-21221 | PIN | |
| 17 | 175-71-21230 | PLATE, LOCK | |
| 18 | 01010-51440 | BOLT | |
| 19 | 01643-31445 | WASHER | |
| 20 | 175-71-31183 | ARM, L.H. | |
| 21 | 07020-00000 | FITTING | |
| 22 | 175-71-31233 | ARMJ R.H. | |
| 23 | 01011-82700 | BOLT | |
| 24 | 01643-32780 | WASHER | |
| 25 | 175-71-31390 | SHIMA5mm | |
| 26 | 175-71-31410 | SHIM, 1.0mm | |
| 27 | 175-71-31420 | SHIM, 2.3mm | |
| 28 | 175-71-21351 | BOLT | |
| 29 | 01643-32780 | WASHER | |
| 32 | 175-71-31280 | CAP | |
| 33 | 175-71-31250 | SHIM, 0.5mm | |
| 34 | 175-71-31260 | SHIM, 1.0mm | |
| 35 | 175-71-31270 | SHIM, 2.3mm | |
| 36 | 175-71-31293 | ARM | |
| 37 | 175-71-31562 | STUP, BALL | |
| 38 | 175-71-31190 | CAP | |
| 39 | 195-71-22681 | JOINT | |
| 40 | 154-71-21290 | PIN | |
| 41 | 175-71-21330 | PLATE, LOCK | |
| 42 | 01010-51435 | BOLT | |
| 43 | 01643-31445 | WASHER | |
| 44 | 01011-82700 | BOLT | |
| 45 | 01643-32780 | WASHER | |
| 46 | 175-71-21272 | BRACE | |
| 47 | 07020-00000 | FITTING | |
| 48 | 175-71-11281 | SCREW | |
| 49 | 01010-51270 | BOLT | |
| 50 | 01643-51232 | WASHER M12 | |
| 51 | 07020-00000 | FITTING |
