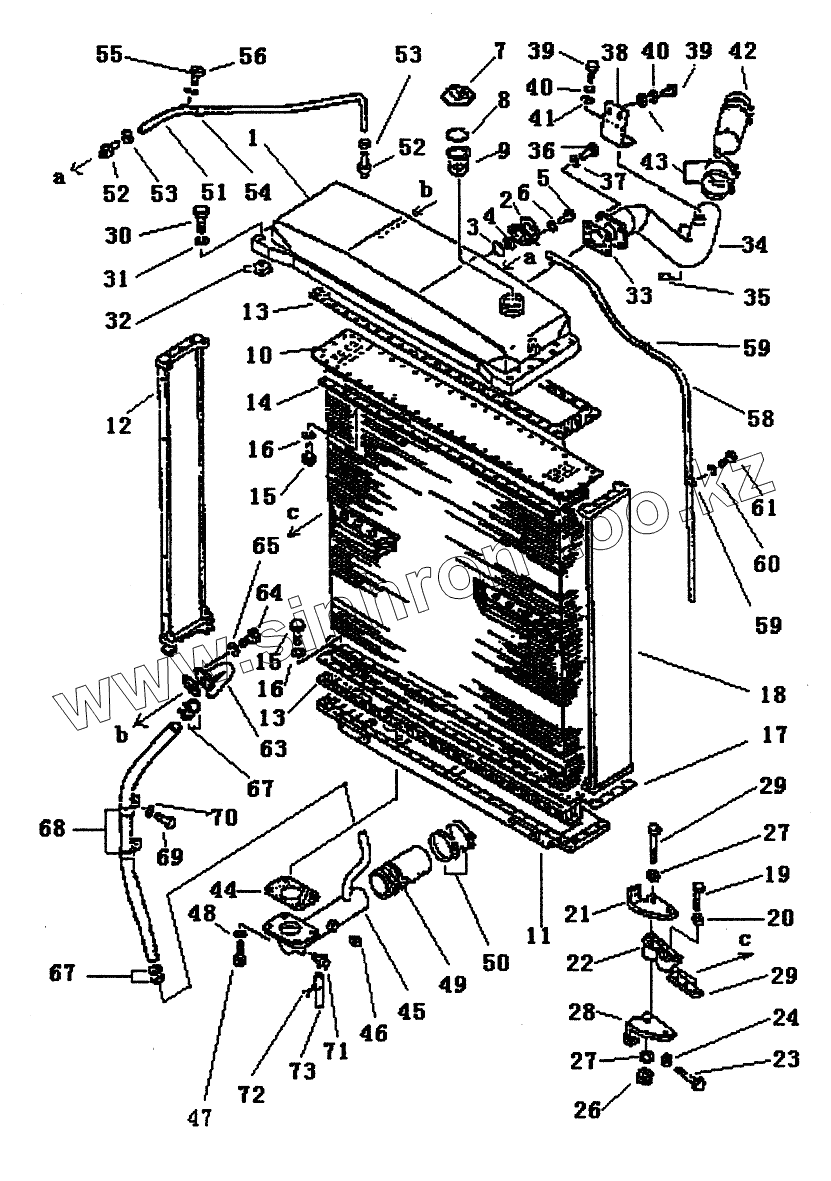

Каталог запасных частей к технике: PENGPU PengPu PD-320. RADIATOR PD320Y-1 PD320Y-2
175-03-C1002
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
16
17
18
19
20
21
22
23
24
26
27
27
28
29
29
30
31
32
33
34
35
36
37
38
39
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
52
53
53
54
55
56
58
59
59
60
61
63
64
65
67
67
68
69
70
71
72
73
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 175-03-C1002 | 175-03-C1002 | RADIATOR ASSY | |
| 1 | 175-03-C1111 | TANK, UPPER | |
| 2 | 154-03-11682 | VALVE, PRESSURE | |
| 3 | 07000-03045 | O-RING | |
| 4 | 175-03-32570 | SCREEN | |
| 5 | 01010-51025 | BOLT | |
| 6 | 01602-21030 | WASHER, SPRING | |
| 7 | 07053-10000 | CAP, FILLER | |
| 8 | 07057-03271 | RINGSNAP | |
| 9 | 07056-00048 | STRAINER, FELLER | |
| 10 | 175-03-32261 | CORE, RADIATOR | |
| 11 | 175-03-31133 | TANKxWER | |
| 12 | 175-03-32930 | PLATE L.H | |
| 13 | 175-03-31153 | GASKET | |
| 14 | 175-03-31181 | PLATE | |
| 15 | 01010-51030 | BOLT | |
| 16 | 01602-21030 | WASHER, SPRING | |
| 17 | 175-03-32290 | PLATE | |
| 18 | 175-03-32940 | PLATE R.H | |
| 19 | 01010-51075 | BOLT | |
| 20 | 01643-31032 | WASHER | |
| 21 | 175-03-32961 | BRACKET | |
| 22 | 195-03-22401 | ISOLATER | |
| 23 | 01010-51225 | BOLT | |
| 24 | 01643-31232 | WASHER | |
| 25 | 01091-52220 | BOLT | |
| 26 | 01582-12218 | NUT | |
| 27 | 01643-32260 | WASHER | |
| 28 | 175-03-32951 | BRACKET | |
| 29 | 198-03-21530 | PLATE | |
| 30 | 01011-51835 | BOLT | |
| 31 | 175-03-32650 | WASHER 18 | |
| 32 | 195-03-11570 | SHIM | |
| 33 | 195-03-11340 | GASKET | |
| 34 | 175-03-С1320 | TUBE, INLET | |
| 35 | 07042-20108 | PLUG | |
| 36 | 01010-51230 | BOLT | |
| 37 | 01602-21236 | WASHER, SPRING | |
| 38 | 175-03-С1340 | BRACKET | |
| 39 | 01010-51225 | BOLT | |
| 40 | 01602-21236 | WASHER, SPRING | |
| 41 | 01643-31232 | WASHER | |
| 42 | 175-03-С1330 | HOSE | |
| 43 | 07280-07429 | CLAMP, HOSE | |
| 44 | 195-03-11361 | GASKET | |
| 45 | 175-03-С1350 | TUBE, OUTLET | |
| 46 | 07042-000415 | PLUG.LAP | |
| 47 | 01010-51235 | BOLT | |
| 48 | 01602-21236 | WASHER, SPRING | |
| 49 | 175-03-С1380 | HOSE | |
| 50 | 07280-08029 | CLAMP, HOSE | |
| 51 | 175-03-С1420 | HOSE | |
| 52 | 195-03-11530 | NIPPLE | |
| 53 | 07281-00197 | CLAMP | |
| 54 | 195-03-11580 | CLIP | |
| 55 | 01010-51020 | BOLT | |
| 56 | 01602-21030 | WASHER, SPRING | |
| 57 | 04059-01010 | WIRE, LOCK | |
| 58 | 195-03-13131 | tube, overflow | |
| 59 | 195-03-11690 | cliroverflow | |
| 60 | 01010-51220 | BOLT | |
| 61 | 01602-21236 | WASHER, SPRING | |
| 62 | 195-03-11980 | gasket | |
| 63 | 175-03-С1121 | tube | |
| 64 | 01010-51030 | BOLT | |
| 65 | 01602-21030 | WASHER, SPRING | |
| 66 | 175-03-С1360 | hose.drain | |
| 67 | 07280-03826 | clamp, hose | |
| 68 | 175-03-С1370 | clip | |
| 69 | 01010-51225 | BOLT | |
| 70 | 01643-31232 | WASHER | |
| 71 | 195-03-13241 | VALVE, DRAIN | |
| 72 | 04059-01010 | WIRE, LOCK | |
| 73 | 175-03-31530 | hose, drain |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
