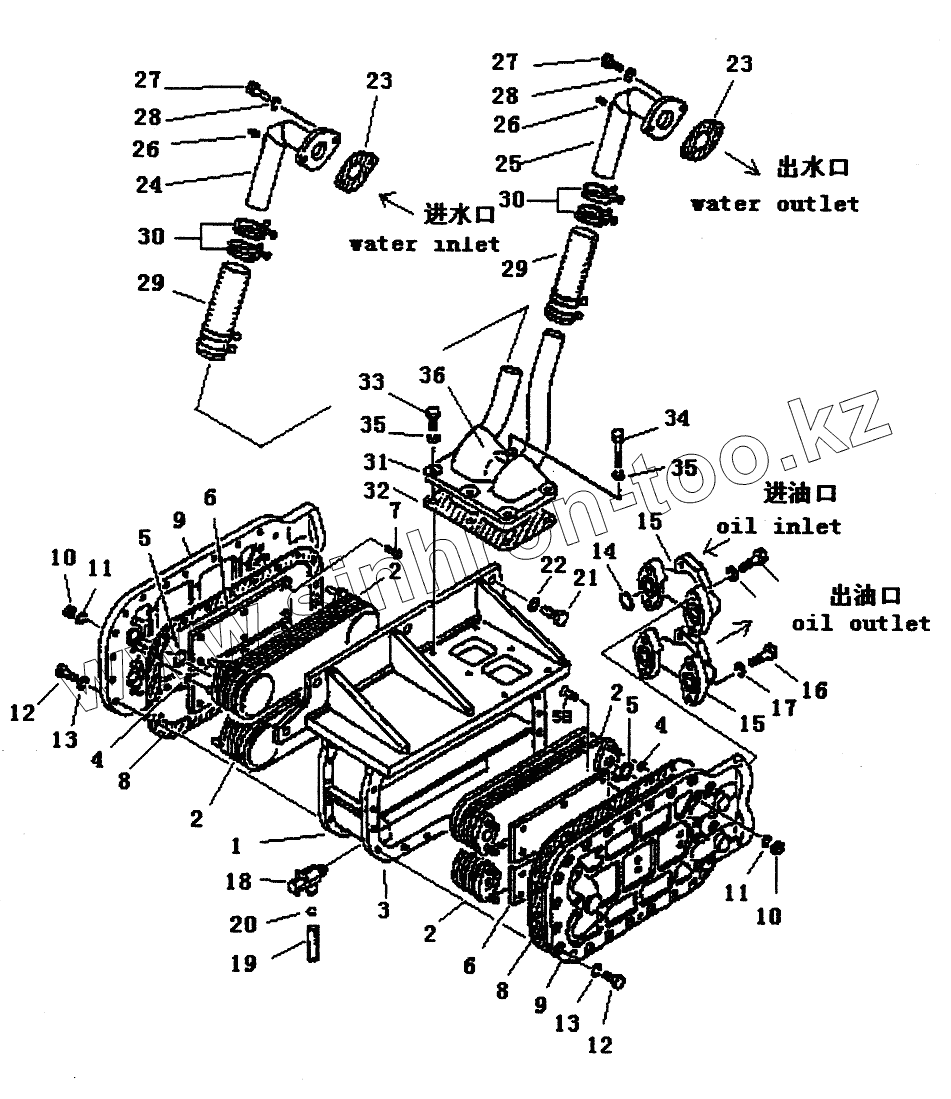

Каталог запасных частей к технике: PENGPU PengPu PD-320. OIL COOLER PD320Y-1 PD320Y-2
175-03-c2001
1
2
2
2
2
3
4
4
5
5
6
6
7
8
8
9
9
10
10
11
11
12
12
13
13
14
15
15
16
17
18
19
20
21
22
23
23
24
25
26
26
27
27
28
28
29
29
30
30
31
32
33
34
35
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 175-03-c2001 | 175-03-c2001 | OIL COOLER | |
| 1 | 175-03-c2110 | CASE, OIL COOLING | |
| 2 | 175-03-с2130 | COOLER, OEL | |
| 3 | 175-03-c2100 | COOLER ASSY | |
| 4 | 07000-72014 | O-RING | |
| 5 | 07000-73032 | O-RING | |
| 6 | 175-03-c2140 | PLATE | |
| 7 | 01224-40616 | SCREW м6x16 | |
| 8 | 195-03-19160 | GASKET | |
| 9 | 175-03-c2120 | COVER | |
| 10 | 01580-10806 | NUT | |
| 11 | 01602-20825 | WASHER | |
| 12 | 01010-51030 | BOLT | |
| 13 | 01602-21030 | WASHER, SPRING | |
| 14 | 07000-03038 | O-RING | |
| 15 | 175-03-c2191 | FRANCE | |
| 16 | 01010-51245 | BOLT | |
| 17 | 01602-21236 | WASHER, SPRING | |
| 18 | 195-03-13241 | VALVE, DRAIN | |
| 19 | 175-13-31530 | HOSEJDRAIN | |
| 20 | 04059-01010 | WIRE, LOCK | |
| 21 | 01010-51645 | BOLT | |
| 22 | 01643-31645 | WASHER | |
| 23 | 175-03-c2160 | GASKET | |
| 24 | 175-03-c2150 | TUBE | |
| 25 | 175-03-c2220 | TUBE | |
| 26 | 07042-20108 | PLUG | |
| 27 | 01010-51030 | BOLT | |
| 28 | 01602-21030 | WASHER, SPRING | |
| 29 | 07260-24122 | HOSE | |
| 30 | 07280-05429 | CLAMP | |
| 31 | 175-03-С2171 | TUBE | |
| 32 | 175-03-С2180 | GASKET | |
| 33 | 01010-51030 | BOLT | |
| 34 | 01010-51070 | BOLT М10x70 | |
| 35 | 01602-21030 | WASHER, SPRING | |
| 36 | 175-03-С2210 | ELBOW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
