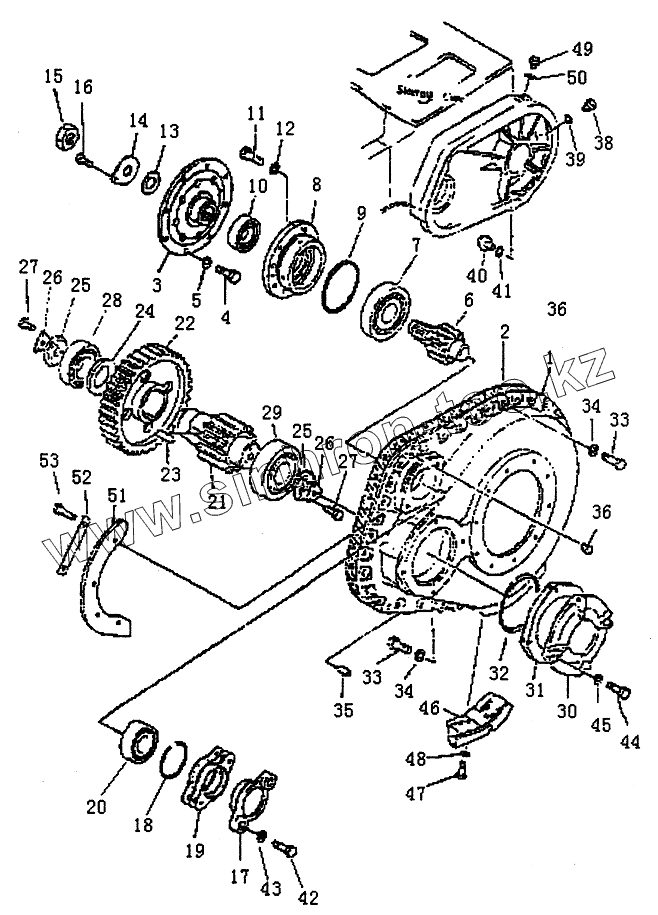

Каталог запасных частей к технике: PENGPU PengPu PD-320. FINAL DRIVE CASE PD320Y-l PD320Y-2
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
23
24
25
25
26
26
27
27
28
29
30
31
31
31
31
32
33
33
34
34
35
36
36
38
39
40
41
42
43
44
45
46
46
47
48
49
50
51
52
53
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 175-27-31124 | CASE, GEAR, FINAL DRIVE, R.H. | |
| 1 | 175-27-31114 | CASE, GEAR, FINAL DRIVE, L.H. | |
| 2 | 175-27-31132 | GASKET | |
| 3 | 175-27-31463 | FLANGE | |
| 4 | 01010-51850 | BOLT | |
| 5 | 01602-21854 | WASHER | |
| 6 | 175-27-31495 | PINION, FIRST, FINAL DRIVE | |
| 7 | 170-09-13210 | BEARING, ROLLER | |
| 8 | 175-27-31161 | CAGE, BEARING | |
| 9 | 07000-05235 | O-RING | |
| 10 | 07013-10120 | SEAL, OIL | |
| 11 | 01010-51640 | BOLT | |
| 12 | 01602-21648 | WASHER | |
| 13 | 170-27-11232 | WASHER | |
| 14 | 195-27-12620 | WASHER, LOCK | |
| 15 | 170-21-12141 | NUT | |
| 16 | 01010-51225 | BOLT | |
| 17 | 175-27-31170 | C0VER3EARING | |
| 18 | 07000-05150 | O-RING | |
| 19 | 175-27-00051 | SHIM ASSY | |
| 19 | 175-27-31180 | SHIM 0.5mm | |
| 19 | 175-27-31190 | SHIM 0.3mm | |
| 19 | 175-27-31210 | SHIM 0.1mm | |
| 20 | 170-09-13220 | BEARING, ROLLER | |
| 21 | 175-27-31233 | PINION, SECOND, FINAL | |
| 22 | 175-27-31255 | GEAR, SECOND PINION | |
| 23 | 175-27-31260 | KEY | |
| 24 | 175-27-31270 | WASHER | |
| 25 | 175-27-31282 | HOLDER | |
| 26 | 2175-27-32470 | WASHER, LOCK | |
| 27 | 01010-51230 | BOLT | |
| 28 | 170-09-13230 | BEARING, ROLLER | |
| 29 | 170-09-13240 | BEARING, ROLLER | |
| 30 | 175-27-31291 | COVER, BEARING | |
| 31 | 175-27-00016 | SHIM ASSY | |
| 31 | 175-27-31310 | SHIM | |
| 31 | 175-27-31320 | SHIM | |
| 31 | 175-27-31330 | SHIM | |
| 32 | 07000-05260 | O-RING | |
| 33 | 01010-52055 | BOLT | |
| 34 | 01602-22060 | WASHER | |
| 35 | 04020-01842 | PIN | |
| 36 | 07049-02025 | PIN | |
| 38 | 07040-13618 | PLUG | |
| 39 | 07002-03634 | O-RING | |
| 40 | 07044-13620 | PLUG | |
| 41 | 07002-03634 | O-RING | |
| 42 | 01010-52050 | BOLT | |
| 43 | 01602-22060 | WASHER | |
| 44 | 01010-51640 | BOLT | |
| 45 | 01602-21648 | WASHER | |
| 46 | 175-27-32611 | GUARD, L.H. | |
| 46 | 175-27-32641 | GUARD, R.H. | |
| 47 | 01010-52455 | BOLT | |
| 48 | 01602-22472 | WASHER | |
| 49 | 07040-13618 | PLUG | |
| 50 | 07002-03634 | O-RING | |
| 51 | 175-27-31530 | PLATE | |
| 52 | 175-27-31540 | WASHER, lock | |
| 53 | 01010-51230 | BOLT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
