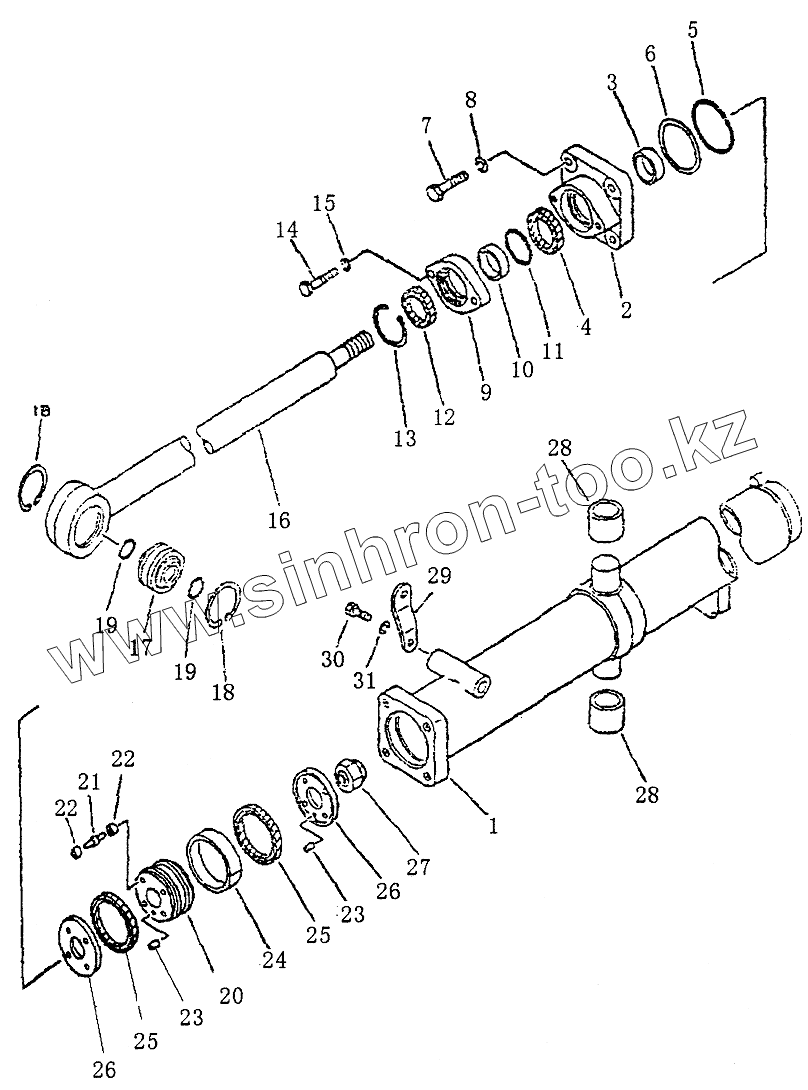

BLADE LILT CYLINDER PD320Y-D
Каталог запасных частей к технике: PENGPU PengPu PD-320. BLADE LILT CYLINDER PD320Y-D
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
PengPu PD-165 (2010)
PengPu PD-220 (2010)
PengPu PD-320 (2010)
Схема
>
Не выбрано
ENGINE MOUNT PD320Y-1 PD320Y-2
POEWR TAKE OFF PD320Y-1 PD320Y-2
FLYWHEEL AND FLYWHEEL HOUSING PD320Y-1 PD320Y-2
POEWR TAKE OFF PD320Y-1 PD320Y-2
FAN AND BELT PD320Y-1 PD320Y-2
INTAKE ASSY PD320Y-1 PD320Y-2
EXHAUST ASSY PD320Y-1 PD320Y-2
FUEL CONTROL LEVER PD320Y-1 PD320Y-2
FUEL CONTROL LINKAGE PD320Y-1 PD320Y-2
BRAKE PEDAL PD320Y-1 PD320Y-2
RADIATOR PD320Y-1 PD320Y-2
RADIATOR FAN GUARD AND NET PD320Y-1 PD320Y-2
OIL COOLER PD320Y-1 PD320Y-2
FUEL TANK
FUEL PIPING
BATTERY
GAUGE PANEL
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM
TORQUE CONVERTER HOUSING AND REGULATOR VALVE PD320-1 PD320-2
TURBINE SHAFT AND STATOR PD320Y-1 PD320Y-2
TORQFLOW TRANSMISSION CASE PD320Y-1 PD320Y-2
PLANETRAY GEAR AND SHAFT PD320Y-1 PD320Y-2 1/2
PLANETRAY GEAR AND SHAFT PD320Y-1 PD320Y-2 2/2
TRANSFER CASE PD320Y-1 PD320Y-2
TRANSMISSION CONTROL VALVE PD320Y-1 PD320Y-2
COVER AND VALVE CONTROL LEVER PD320Y-1 PD320Y-2
PRESSURE REGULATOR VALVE PD320Y-1 PD320Y-2
GEARSHIFT LEVER PD320Y-1 PD320Y-2 1/2
GEARSHIFT LEVER PD320Y-1 PD320Y-2 2/2
GEARSHIFT LEVER PD320Y-1 PD320Y-2
TRANSMISSION PUMP PD320Y-1 PD320Y-2
TRANSMISSION OIL FILTER PD320Y-1 PD320Y-2
TORQUE CONVERTER PIPING PD320Y-1 PD320Y-2
TORQFLOW TRANSMISSION PIPING PD320Y-1 PD320Y-2
STEERING CASE AND MAIN FRAME PD320Y PD320Y-1
OIL FILLER AND LEVER GAUGE PD320Y PD320Y-1
BEVEL GEAR AND SHAFT PD320Y PD320Y-1
STEERING CLUTCH PD320Y-1 PD320Y-2
UNIVERSAL JOINT PD320Y-1 PD320Y-2
BRAKE BAND AND LINKAGE PD320Y-1 PD320Y-2
BRAKE BOOSTER AND PIPING PD320Y-1 PD320Y-2 1/2
STEERING CONTROL LEVER PD320Y-l PD320Y-2
DECELERATOR PEDAL PD320Y-1 PD320Y-2
BRAKE LINKAGE PD320Y-1 PD320Y-2
PARKING BRAKE LINKAGE PD320Y-l PD320Y-2
STREEING PUMP PD320Y-1 PD320Y-2
OIL STRAINER PD320Y-1 PD320Y-2
STEERING OIL FILTER PD320Y-l PD320Y-2
STEERING CONTROL VALVE PD320Y-1 PD320Y-2
MAIN RELIEF VALVE
STEERING OIL PIPING PD320Y-1 PD320Y-2 l/3
STEERING OIL PIPING PD320Y-1 PD320Y-2 2/3
STREEING OIL PIPING PD320Y-1 PD320Y-2 3/3
FINAL DRIVE CASE PD320Y-l PD320Y-2
FINAL DRIVE GEAR SHAFT AND SPROCKET PD320Y-l PD320Y-2
TRACK ROLLER FRAME PD320Y-1 PD320Y-2
RECOIL SPRING PD320Y-1 PD320Y-2
TRACK ROLLER FRAME COVER PD320Y-1 PD320Y-2
TRACK ROLLER GUARD PD320Y-1 PD320Y-2
FRONT IDLER PD320Y-1 PD320Y-2
TRACK ROLLER PD320Y-1 PD320Y-2
CARRIER ROLLER PD320Y-1 PD320Y-2
TRACK SHOE MASTER PIN TYPESTD. PD320Y-l PD320Y-2
ENGINE SIDE COVER L.H. PD320Y-1 PD320Y-2
ENGINE SIDE GOVER L.H. PD320Y-1 PD320Y-2
RADIATOR GUARD PD320Y-1 PD320Y-2
ENGINE HOOD PD320Y-1 PD320Y-2
FENDER PD320Y-1 1/2
FENDER PD320Y-1 2/2
FENDER PD320Y-2 1/2
FENDER PD320Y-2 2/2
SUPPORT AND COVER PD320Y-1
SUPPORT AND COVER PD320Y-2
FLOOR PLATE PD320Y-1
FLOOR PLATE PD320Y-2
BOTTOM GUADE PD320Y-1 PD320Y-2
OPERATOR SEAT
MARKS PLATES AND TOOLS PD320Y-1 PD320Y-2
EQUALIZER BAR PD320Y-l PD320Y-2
CYLINDER STAY PD320Y-1 PD320Y-2
DRAWBAR PD320Y-1 PD320Y-2
HYDRAULIC PUMP PD320Y-1
HYDRAULIC TANK PD320Y-1 1/2
HYDRAULIC TANK PD320Y-1 2/2
HYDRAULIC TANK PD320Y-2
BLADE LIFT AND RIPPER CONTROL VALVE PD320Y-1 1/2
BLADE LIFT AND RIPPER CONTROL VALVE PD320Y-1 2/2
BLADE TILT CONTROL VALVE PD320Y-1
BLADE LILT CYLINDER PD320Y-D
QUICK DROP VALVE PD320Y-1 PD320Y-2
HYDRAULIC PIPING PD320Y-1
HYDRAULIC PIPING PD320Y-2
HYDRAULIC PIPING PD320Y-2
HYDRAULIC PIPING PD320Y-2
HYDRAULIC PIPING PD320Y-2
HYDRAULIC PIPING FOR BLADE PIPING PD320Y-2
HYDRAULIC PIPING PD320Y-1 FOR BLADE LIFT 1/2
HYDRAULIC PIPING PD320Y-2 FOR BLADE LIFT 1/2
HYDRAULIC PIPING PD320Y-1 PD320Y-2 FOR BLADE TILT 2/2
HYDRAULIC PIPING PD320Y-1 FOR BLADE TILT AND RIPPER
HYDRAULIC PIPING PD320Y-2 FOR BLADE TILT
BLADE LIFT SERVO VALVE PD320Y-1
BLADE TILT AND RIPPER SERVO VALVE PD320Y-1
SERVO VALVE PIPING pd320y-1 FOR BLADE LIFT
SERVO VALVE AND VALVE SEAT PD320Y-1
BLADE CONTROL LEVER PD320Y-1
BLADE CONTROL LINKAGE PD320Y-1
BLADE TILT AND RIPPER CONTROL LINKAGE PD320Y-1
STRAIGHT TILT BLADE PD320Y-1 PD320Y-2
STRAIGHT TILT FRAME PD320Y-1 PD320Y-2
ANGLE BLADE PD320Y-1
C-FRAME PD320Y-1
ROLL OVER PROTECTIVE STRUCTURE BRACKET PD320Y-1
ROLL OVER PROTECTIVE STRUCTURE BRACKET PD320Y-2
ROLL OVER PROTECTIVE STRUCTURE CAB PD320Y-1 PD320Y-2
ROLL OVER PROTECTIVE STRUCTURE CAB PD320Y-1 PD320Y-2 2/3
ROLL OVER PROTECTIVE STRUCTURE CAB PD320Y-1 PD320Y-2
RIPPER SHANK BEAM AND LINK FOR MULTITYPE PD320Y-1 PD320Y-2
LIFT CYLINDER PD320Y-1 PD320Y-2 FOR RIPPER
TILT CYLINDER FOR RIPPER PD320Y-L PD320Y-2
SELECTOR VALVE PD320Y-1 PD320Y-2
MAIN PIPING PD320Y-1
CYLINDER PIPING PD320Y-1
MAIN PIPING PD320Y-1
RIPPER PIPING PD320Y-2
RIPPER CONTROL LEVER PD320Y-1 PD320Y-2
RIPPER FOR MULTITYPE PD320Y-1
RIPPER FOR MULTITYPE PD320Y-2
BATTERY
GAUGE PANEL
ELECTRICAL SYSTEM
RIPPER SHANK BEAM AND LINK FOR SINGLE TYPE PD320Y-1 PD320Y-2
ELECTRICAL SYSTEM
RIPPER CINTROL LEVER PD320Y-1 PD320Y-2
PIN PULLER PIPING PD320Y-1
PIN PULLER PIPING PD320Y-2
PIN PULLER LINKAGE PD320Y-1 PD320Y-2
PIN PULLER VALVE PD320Y-1 PD320Y-2
PIN PULLER CYLINDER PD320Y-1 PD320Y-2
SINGLE RIPPER PD320Y-1
SINGLE RIPPER PD320Y-2
SYPHON TIE-IN ASSY PD220Y-1 PD220YS
ELECTRICITY CALEFACTION SET PD220Y-1 PD220YS
REAR GUARD PD320Y-1
BULLDOZER RAKE PD320Y-1 PD320Y-2
BULLDOZER RAKE PD320Y-1 PD320Y-2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
22
23
23
24
25
25
26
26
27
28
28
29
30
31
Позиция на иллюстрации
Заводской номер детали
Название детали
175-63-13203
175-63-13203
CYLINDER ASSY
175-63-13103
175-63-13103
CYLINDER ASSY
1
175-63-13141
CYLINDER
2
175-63-13131
HEAD
3
07177-07530
BUSHING
4
707-51-75110
PACKING
5
07000-12135
O-RING
6
07146-02136
RING
7
01010-52472
BOLT
8
01602-22472
WASHER
9
175-63-13120
COVER
10
07177-07515
BUSHING
11
07000-03095
O-RING
12
144-63-94170
SEAL
13
07179-00097
WASHER
14
01010-51655
BOLT
15
01602-21648
WASHER
16
175-63-13120
COVER
17
07137-05008
BUSHING
18
04065-01140
WASHER
19
07000-30350
O-RING
20
175-63-12452
PISION
21
175-63-12550
VALVE
22
175-63-12650
SEAT
23
04020-00616
PIN
24
07155-01435
RING
25
707-42-14012
PACKING
26
707-40-14032
RETAINER
27
07165-14547
NUT
28
175-63-12540
BUSHING
29
175-63-12370
PLATE
30
01010-51245
BOLT
31
01602-21236
WASHER, SPRING
