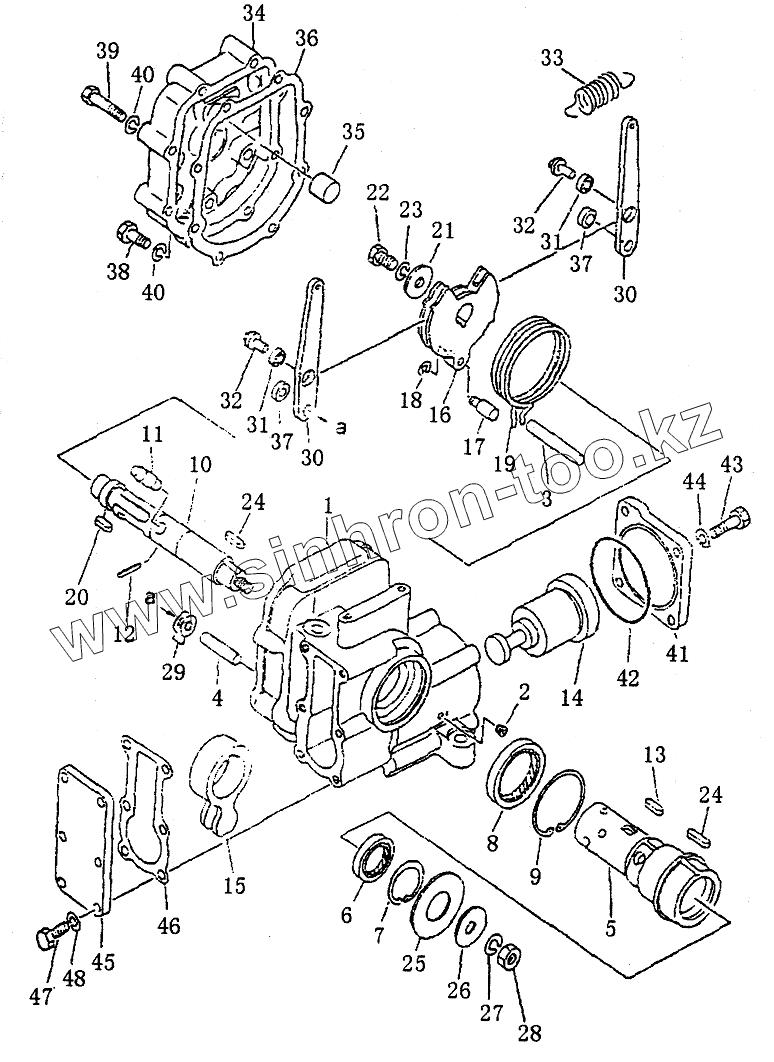

Каталог запасных частей к технике: PENGPU PengPu PD-320. BLADE LIFT SERVO VALVE PD320Y-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
30
31
31
32
32
33
34
35
36
37
37
38
39
40
40
41
42
43
44
45
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 702-12-13110 | CASE | |
| 2 | 07043-00108 | PLUG | |
| 3 | 702-12-12140 | PIN | |
| 4 | 702-12-12150 | PIN | |
| 5 | 702-12-12160 | SHAFT | |
| 6 | 702-12-12390 | SEAL | |
| 7 | 04065-04018 | RING | |
| 8 | 702-12-12410 | SEAL | |
| 9 | 04065-06020 | RING | |
| 10 | 702-12-12170 | SHAFT | |
| 11 | 702-12-12180 | PIN | |
| 12 | 04025-00316 | PIN | |
| 13 | 04000-00520 | KEY | |
| 14 | 702-12-12191 | PISTON | |
| 15 | 702-12-12210 | LEVER | |
| 16 | 702-12-12451 | DETENT | |
| 17 | 702-12-12230 | PIN | |
| 18 | 702-12-12240 | RING | |
| 19 | 702-12-12251 | SPRING | |
| 20 | 04000-00515 | KEY | |
| 21 | 702-12-12420 | WASHER | |
| 22 | 01010-50816 | BOLT | |
| 23 | 01602-20825 | WASHER | |
| 24 | 04000-00520 | KEY | |
| 25 | 702-12-12280 | WASHER | |
| 26 | 702-12-12270 | WASHER | |
| 27 | 01580-11008 | NUT | |
| 28 | 01602-21030 | WASHER, SPRING | |
| 29 | 01641-21016 | WASHER | |
| 30 | 702-12-12291 | LEVER | |
| 31 | 702-12-12310 | BEARING | |
| 32 | 702-12-12320 | ROLLER | |
| 33 | 702-12-12331 | SPRING | |
| 34 | 702-12-13120 | COVER | |
| 35 | 702-12-12340 | KEY | |
| 36 | 702-12-13140 | GASKET | |
| 37 | 702-12-12361 | PACKET | |
| 38 | 01010-50835 | BOLT | |
| 39 | 01010-50845 | BOLT | |
| 40 | 01602-20825 | WASHER | |
| 41 | 702-12-13160 | COVER | |
| 42 | 07000-22070 | O-RING | |
| 43 | 01010-50825 | BOLT | |
| 44 | 01602-20825 | WASHER | |
| 45 | 702-12-13130 | COVER | |
| 46 | 702-12-13150 | GASKET | |
| 47 | 01010-30825 | BOLT | |
| 48 | 01602-20825 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
