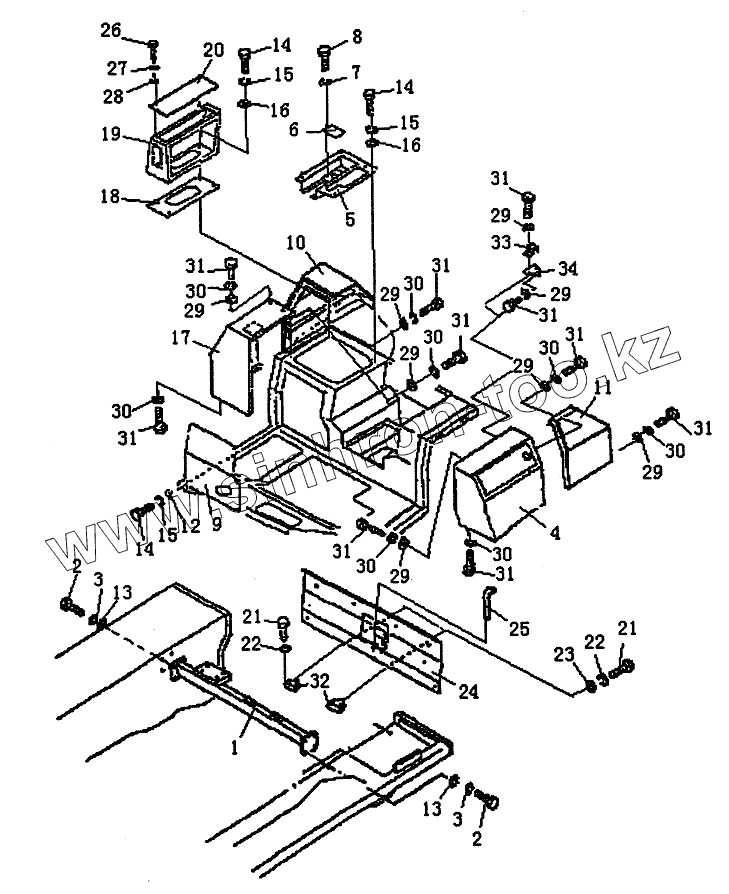

Каталог запасных частей к технике: PENGPU PengPu PD-220. SUPPORT AND REAR COVER (PD220YS)
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
15
15
15
16
16
17
18
19
20
21
21
22
22
23
24
25
26
27
28
29
29
29
29
29
29
29
29
30
30
30
30
30
30
30
30
31
31
31
31
31
31
31
31
31
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | T21.54.32 | BRACKET | |
| 2 | GB5783 | BOLT | |
| 3 | GB93 | WASHER | |
| 4 | T23.54.16 | COVER | |
| 5 | T21A.54.11 | WASHER | |
| 6 | T21A.54-11 | PLATE | |
| 7 | GB93 | WASHER | |
| 8 | GB5783 | BOLT | |
| 9 | BRACKET | BRACKET | |
| 10 | T23.54.7 | HOOT, R.H | |
| 11 | T23.54.10 | HOOT, L.H | |
| 12 | GB97.1 | WASHER | |
| 13 | GB97.1 | WASHER | |
| 14 | GB5783 | BOLT | |
| 15 | GB93 | WASHER | |
| 16 | GB97.1 | WASHER | |
| 17 | T23.54.15 | COVER | |
| 18 | T21A.54-12 | PLATE | |
| 19 | T21A.54.30 | CASE | |
| 20 | T21A.54-4 | PLATE | |
| 21 | GB5783 | BOLT | |
| 22 | GB93 | WASHER | |
| 23 | GB96 | WASHER | |
| 24 | T23.54.11 | COVER | |
| 25 | T21A.54-2 | PIN | |
| 26 | GB65 | SCREW | |
| 27 | GB859 | WASHER | |
| 28 | GB97.1 | WASHER | |
| 29 | GB97.1 | WASHER | |
| 30 | GB93 | WASHER | |
| 31 | GB5783 | BOLT | |
| 32 | T21.54.24 | BRACKET | |
| 33 | T21A.54-13 | PLATE | |
| 34 | T21A.54.34 | PLATE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
