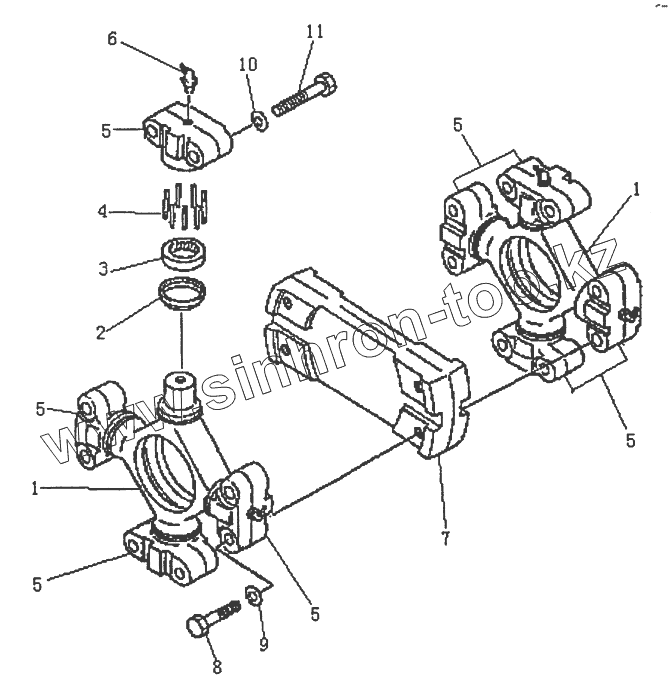

T21-20
1
1
1
2
3
4
5
5
5
5
5
5
6
7
8
9
10
11
Позиция на иллюстрации
Заводской номер детали
Название детали
T21-20
T21-20
JOINT ASSEM ASSY
1
154-20-00020
SPIDER ASSY
1
150-11-11210
SPIDER
2
150-11-11220
SEAL, DUST
3
150-11-11250
SEAL, OIL
4
150-11-11240
NEEDLE
5
154-20-11130
CASE, BEARING
6
0702-00675
FITTING, GREASE
7
154-20-11170
COUPLING PLATE
8
01010-31255
BOLT
9
01602-01236
WASHER
10
01010-31260
BOLT
11
01602-01236
WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
