Каталог запасных частей к технике: PENGPU PengPu PD-220. IDLER (PD220Y-1, PD220YS)
T21.30.3
1
2
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
10
10
11
11
12
12
13
13
14
14
15
16
17
17
18
18
19
19
20
20
21
21
21
21
22
22
22
22
23
23
24
24
25
25
26
26
28
28
29
29
30
30
31
31
32
32
33
33
34
34

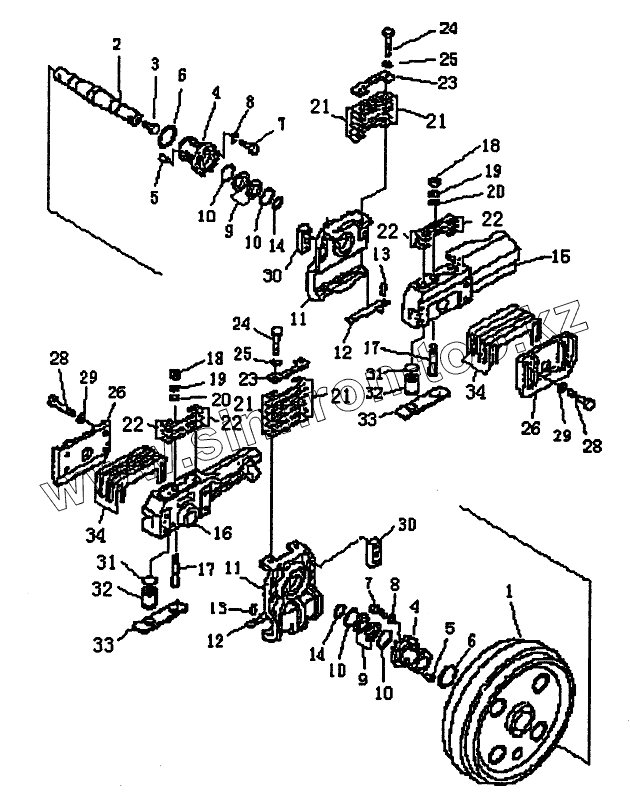

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| T21.30.3 | T21.30.3 | IDLER | |
| 1 | T21.30.3.1 | IDLER | |
| 2 | T21.30.3-6 | SHAFT, IDLER | |
| 3 | 07052-21624 | PLUG | |
| 4 | T21.30.3.2 | BUSHING, ASSY | |
| 5 | T21.30.3.2-2 | PIN | |
| 6 | 07000-02110 | O-RING | |
| 7 | GB5783 | BOLT | |
| 8 | GB93 | WASHER | |
| 9 | T21.30.3-3 | SEAL RING | |
| 10 | T21.30.3-2 | O-RING | |
| 11 | T21.30.3.3 | GUIDE, ASSY | |
| 12 | T21.30.3.3-2 | PLATE (WELDE) | |
| 13 | GB119 | PIN | |
| 14 | 07000-02060 | O-RING | |
| 15 | T21.30.3-1 | SUPPORT, L.H. | |
| 16 | T21.30.3-8 | SUPPORT, R.H. | |
| 17 | T21.30.3-11 | PIN, DOWEL | |
| 18 | T21.30.3-12 | NUT | |
| 19 | GB97.1 | WASHER | |
| 20 | GB93 | WASHER | |
| 21 | T21.30.3-9 | SEAT, SHIM(1) | |
| 22 | T21.30.3-10 | SEAT, SHIM(2) | |
| 23 | T21.30.3-13 | PLATE | |
| 24 | T21.30.3-14 | SCREW | |
| 25 | GB93 | WASHER | |
| 26 | T21.30.3-7 | PLATE | |
| 27 | T21.30.3-4 | SEAT, SHIM(l) | |
| 28 | GB5782 | BOLT | |
| 29 | GB97.1 | WASHER | |
| 30 | T21.30.3-16 | SEAT | |
| 31 | T21.30.3-15 | SEAL | |
| 32 | 30-61 | SPRING | |
| 33 | T21.30.3.5 | SEAT | |
| 34 | T21.30.3-5 | SEAT, SHIM (2) |
