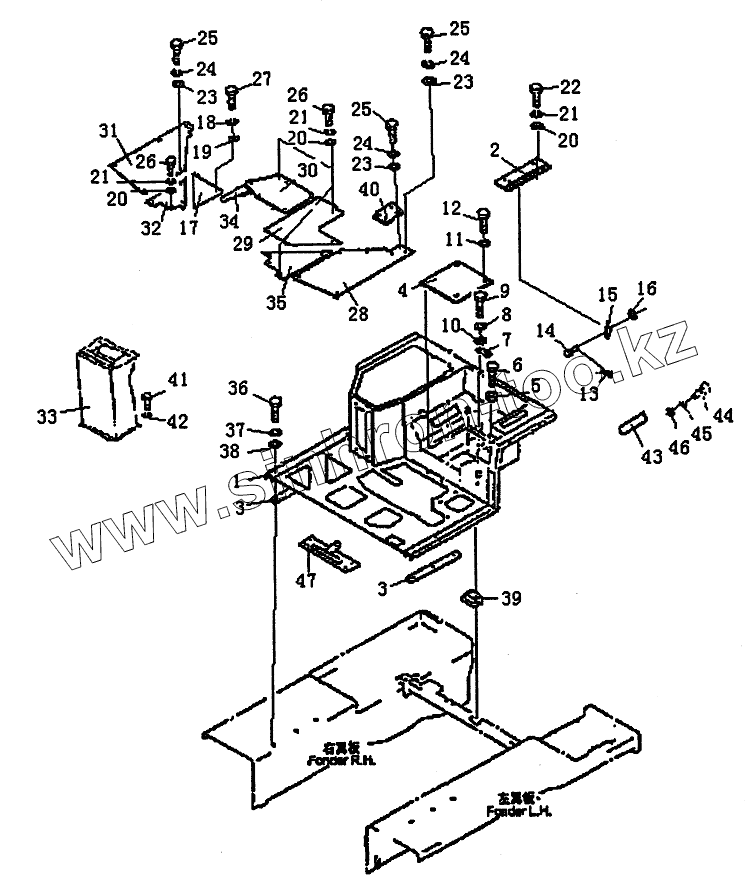

Каталог запасных частей к технике: PENGPU PengPu PD-220. FLOOR PLATE (PD220Y-2)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
21
21
21
22
23
23
23
24
24
24
25
25
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | T21D.54.1 | FRAME, FLOOR | |
| 2 | 54-107 | COVER | |
| 3 | T21.54-6 | PLATE | |
| 4 | T21.54-8 | COVER | |
| 5 | GB6170 | NUT | |
| 6 | GB5783 | BOLT | |
| 7 | 54-89 | PLATE | |
| 8 | GB93 | WASHER | |
| 9 | GB5782 | BOLT | |
| 10 | GB97.1 | WASHER | |
| 11 | GB93 | WASHER | |
| 12 | GB5783 | BOLT | |
| 13 | GB91 | PIN | |
| 14 | GB882 | PIN | |
| 15 | 54-108 | SPRING | |
| 16 | GB848 | WASHER | |
| 17 | T21D.54.2 | COVER | |
| 18 | GB93 | WASHER | |
| 19 | GB97.1 | WASHER | |
| 20 | GB96 | WASHER | |
| 21 | GB93 | WASHER | |
| 22 | GB5783 | BOLT | |
| 23 | GB97.1 | WASHER | |
| 24 | GB93 | WASHER | |
| 25 | GB5783 | BOLT | |
| 26 | GB5783 | BOLT | |
| 27 | GB5783 | BOLT | |
| 28 | T21A.54.18 | COVER | |
| 29 | T21A.54.19 | COVER | |
| 30 | T21D.54.4 | COVER | |
| 31 | T21A.54.8 | COVER | |
| 32 | T21A.54.9 | COVER | |
| 33 | T21A.54.36 | BOX | |
| 34 | T21A.54-1 | PLATE | |
| 35 | T21A.54.20 | FLOOR | |
| 36 | GB5782 | BOLT | |
| 37 | GB93 | WASHER | |
| 38 | GB97.1 | WASHER | |
| 39 | T21.54.33 | SCAT | |
| 40 | T21A.54-14 | PLATE | |
| 41 | GB5783 | BOLT | |
| 42 | GB93 | WASHER | |
| 43 | T21A.54-15 | PLATE | |
| 44 | GB5783 | BOLT | |
| 45 | GB93 | WASHER | |
| 46 | GB97.1 | WASHER | |
| 47 | T21A.54.35 | TENDON |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
