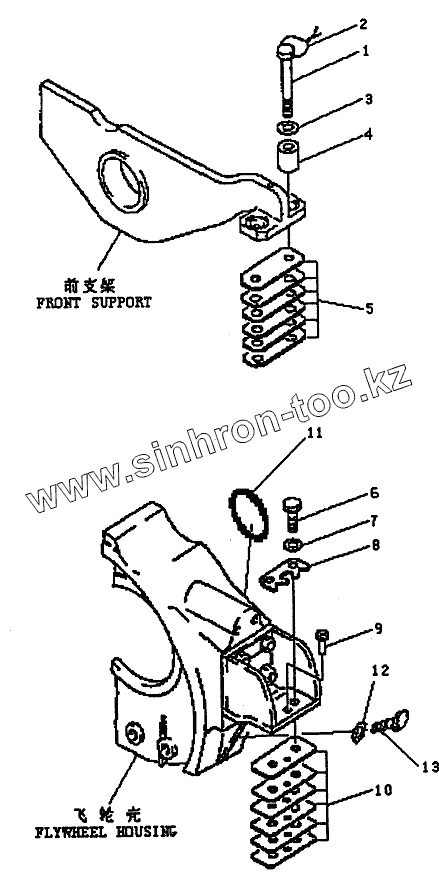

Каталог запасных частей к технике: PENGPU PengPu PD-220. ENGINE MOUNT (PD220Y-1, PD220YS)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано PengPu PD-165 (2010) PengPu PD-220 (2010) PengPu PD-320 (2010)

Схема > Не выбрано ENGINE MOUNT (PD220Y-1, PD220YS) POWER TAKE OFF (PD220Y-1, PD220YS) FUEL CONTROL LEVER (PD220Y-1, PD220Y-2) (1/2) FUEL CONTROL LINKAGE (PD220Y-1, PD220Y-2) (2/2) DEGELERATOR PEDAL (PD220Y-1, PD220Y-2) FLYWHEEL AND FLYWHEEL HOUSING (PD220Y-1, PD220YS) POWER TAKE OFF (PD220Y-1, PD220YS) RADIATOR (PD220Y-1, PD220YS) RADIATOR FAN PULLEY (PD220Y-1, PD220YS) RADIATOR PIPING AND GUARDNET (PD220Y-1, PD220YS) FUEL TANK (PD220Y-1, PD220Y-2) (2/2) FUEL PIPING (PD220Y-1, PD220Y-2) (2/2) JOINT ASSEM (PD220Y-1, PD220YS) TORQUE CONVERTER HOUSING (PD220Y-1, PD220YS) TURBING SHAFT AND STATOR (PD220Y-1, PD220YS) TRANSMISSION CASE (PD220Y-1, PD220YS) TRANSMISSION GEAR AND SHAFT (PD220Y-1, PD220YS) (1/3) TRANSMISSION GEAR AND SHAFT (PD220Y-1, PD220YS) (2/3) TRANSMISSION GEAR AND SHAFT (PD220Y-1, PD220YS) (3/3) TRANSFER CASE AND GEAR (PD220Y-1, PD220YS) TRANSMISSION CONTROL VALVE (PD220Y-1, PD220YS) (1/2) TRANSMISSION CONTROL VALVE (PD220Y-1, PD220YS) (2/2) COVER AND VALVE CONTROL LEVER (PD220Y-1, PD220YS) GEAR SHIFT LEVER (PD220Y-1, PD220Y-2) (1/2) GEARSHIFT LEVER (PD220Y-1, PD220Y-2) (2/2) TRANSMISSION PUMP (PD220Y-1, PD220Y-2) TORQUEFLOW TRANSMISSION OIL FILTER (PD220Y-1, PD220Y-2) TRQUE CONVERTER PIPING (PD220Y-1, PD220Y-2) (l/2) TRQUE CONVERTER PIPING (PD220Y-1, PD220Y-2) (2/2) TRANSMISSION PIPING (PD220Y-1, PD220YS) STEERING CASE AND MAIN FRAME (PD220Y-1) BEVEL GEAR AND SHAFT (PD220Y-1, PD220YS) STEERING CLUTCH (PD220Y-1, PD220YS) BRAKE HOUSING (PD220Y-1, PD220YS) BRAKE BAND AND LINKAGE (PD220Y-1, PD220YS) BRAKE BOOSTER (PD220Y-1, PD220YS) STEERING CONTROL LEVER (PD220Y-1, PD220Y-2) BREAK PEDAL (PD220Y-1, PD220Y-2) STEERING AND BRAKE LINKAGE (PD220Y-1, PD220YS) (1/2) STEERING AND BRAKE LINKAGE (PD220Y-1, PD220YS) (2/2) PARKING BRAKE LEVER (PD320Y-1, PD320Y-2) STEERING PUMP (PD220Y-1, PD220Y-2) OIL STRAINER (PD220Y-1, PD220Y-2) STEERING OIL FILTER (PD220Y-1, PD220Y-2) MAIN RELIEF VALVE AND SAFETY VALVE (PD220Y-1, PD220Y-2) STERING PIPING (PD220Y-1, PD220YS) (1/3) STERING PIPING (PD220Y-1, PD220YS) STERING PIPING (PD220Y-1, PD220YS) (3/3) MAIN RELIEF VALVE (PD220Y-1, PD20YS) STEERING CONTROL VALVE (PD220Y-1, PD220Y-2) FINAL DRIVE CASE AND GEAR (PD220Y-1, PD220YS) (1/2 ) FINAL DRIVE CASE AND GEAR (PD220Y-1, PD220YS) (2/2) SPROCKET AND SHAFT (PD220Y-1, PD220YS) TRACK FRAME (PD220Y-1) TRACK FRAME (PD220YS) MIRECOIL SPRING (PD220Y-1) RECOIL SPRING (PD220YS) TRACK FRAME COVER (РD220Y-1) TRACK FRAME COVER (PD220YS) TRACK ROLLER GUARD (PD220Y-1, PD220YS) IDLER (PD220Y-1, PD220YS) TRACK ROLLER (PD220Y-1, PD220YS) CARRIER ROLLER (PD220Y-1, PD220YS) TRACK SHOE (MASTER PIN TYPE) (PD220Y-1) TRACK SHOE (PD220YS) (MASTER PIN TYPE) RADIATOR GUARD (PD220Y-1, PD220Y-2) RADIATOR GUARD (PD220YS) ENGINE HOOD AND DASHBOARD (PD220Y-1, PD220Y-2, PD220YS ) FENDER (PD220Y-1) FENDER (PD220Y-2) FENDER (PD220YS) SUPPORT AND REAR COVER (PD220Y-1) SUPPORT AND REAR COVER (PD220Y-2) SUPPORT AND REAR COVER (PD220YS) FLOOR PLATE (PD220Y-1) FLOOR PLATE (PD220Y-2) FLOOR PLATE (PD220YS) BOTTOM GUADE (PD220Y-1, PD220Y-2) BOTTOM GUADE (PD220YS) ENGINE SIDE COVER, L.H. (PD220Y-1, PD220YS) ENGINE SIDE COVER, R.H. (PD220Y-1, PD220YS) OPERATOR'S SEAT (PD220Y-1, PD220Y-2) DECAL (FOR CHINESE) (PD220Y-1, PD220YS) EQUALIZER BAR (PD220Y-1) DRAWBAR (PD220Y-1, PD220Y-2) CYLINDER BRACKET GROUP (PD220Y-1 , PD220Y-2) HYDRAULIC PUMP (PD220Y-1, PD220Y-2) HYDRAULIC TANK (PD220Y-1) (1/2) HYDRAULIC TANK (PD220Y-1) (2/2) HYDRAULIC TANK (PD220Y-2) HYDRULIC FILTER (PD220Y-1, PD220Y-2) BLADE LIFT AND TILT CONTROL VALVE (PD220Y-1, PD220Y-2) (1/2) BLADE LIFT AND TILT CONTROL VALVE (PD220Y-1, PD220Y-2) (2/2) RIPPER CONTROL VALVE (PD220Y-1, PD220Y-2) (1/2) RIPPER CONTROL VALVE (PD220Y-1, PD220Y-2) (2/2) HYDRAULIC PIPING (TANK TO PUMP) (PD220Y-1) HYDRAULIC PIPING (TANK ТО PUMP) (PD220Y-2) HYDRAULIC PIPING (TANK TO LIFT CYLIBDER) (pd220Y-1) (1/2) HYDRAULIC PIPING (TANK TO LIFT CYLIBDER) (pd220Y-1) (2/2) HYDRAULIC PIPING (TANK TO LIFT CYLIBDER) (PD220Y-2) HYDRAULIC PIPING (TANK TO TILT CYLIBDER) (PD220Y-1) (1/2) HYDRAULIC PIPING (TANK TO TILT CYLIBDER) (PD220Y-2) (1/2) HYDRAULIC PIPING (TANK TO TILT CYLIBDER) (PD220Y-2) (2/2) BLADE CONTROL PIPING (PD220Y-2) (1/3) BLADE CONTROL PIPING (PD220Y-2) (2/3) BLADE CONTROL PIPING (PD220Y-2) (3/3) LIFT CONTROL VALVE (PD220Y-1, PD220Y-2) LIFTAND RIPPER CONTROL VALVE (PD220Y-1, PD220Y-2) VAVLE RIPPER (PD220Y-1, PD220Y-2) CONTROL LEVER BRACKET AND VALVE SEAT (PD220Y-1) BLADE CONTROL LEVER (PD220Y-1) RIPPER CONTROL LEVER (PD220Y-1) LIFT AND RIPPER CONTROL LINKAGE (PD220Y-1) LIFT CONTROL LINKAGE (PD220Y-1) CONTROL LEVER BRACKET AND VALVE SEAT (PD220Y-1) BLADE CONTROL LEVER (PD220Y-1) BLADE CONTROL LINKAGE (PD220Y-1) STRAIGHT TILT BLADE (PD220Y-1, PD220Y-2) PUSH ARM AND BRANCE GROUP (PD220Y-1) ROPS (PD220Y-1, PD220Y-2) CAB (PD220Y-1, PD220YS) (1/2) CAB (PD220Y-1, PD220YS) (2/2) REAR GUARD (PD220Y-1) ANGLE BLADE (PD220Y-1) С-FRAME (PD220Y-1) ELECTRICAL SYSTEM (PD220Y-1) (1/2) ELECTRICAL SYSTEM (PD220Y-1) (2/2) ELECTRICAL SYSTEM (PD220Y-1) (1/2) ELECTRICAL SYSTEM (PD220Y-1) (1/2) GAUGE PANEL (PD220Y-1) (2/2) ELECTRICAL SYSTEM (06В) (1/2) GAUGE PANEL (PD220Y-2) (2/2) RIPPER CARRIAGE HOLDER AND LINK (PD220Y-1) (THREE-TOOTH) RIPPER CARRIAGE HOLDER AND LINK (PD220Y-1) (FOUR-TOOTH) RIPPER PIPNG (PD220Y-1) RIPPER CYLINDER (PD220Y-1) STEERING CASE AND MAIN FRAME (PD220YS)

1

2

3

4

5

6

7

8

9

10

11

12

13

Позиция на иллюстрации	Заводской номер детали		Название детали
1	00-90		BOLT
2	WIRE		WIRE
3	01643-32260		WASHER
4	00-89		SPACER
5	T21.00-1		SHIM ASSY FRONT
6	GB5782		BOLT
7	01643-32260		WASHER
8	T21.00-2		PLATE, LOCK
9	T21.00-4		PIN, DOWEL
10	T21.00-6		SHIM ASSY, REAR
11	07000-05210		O-RING
12	GB5786		BOLT
13	GB93		WASHER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
