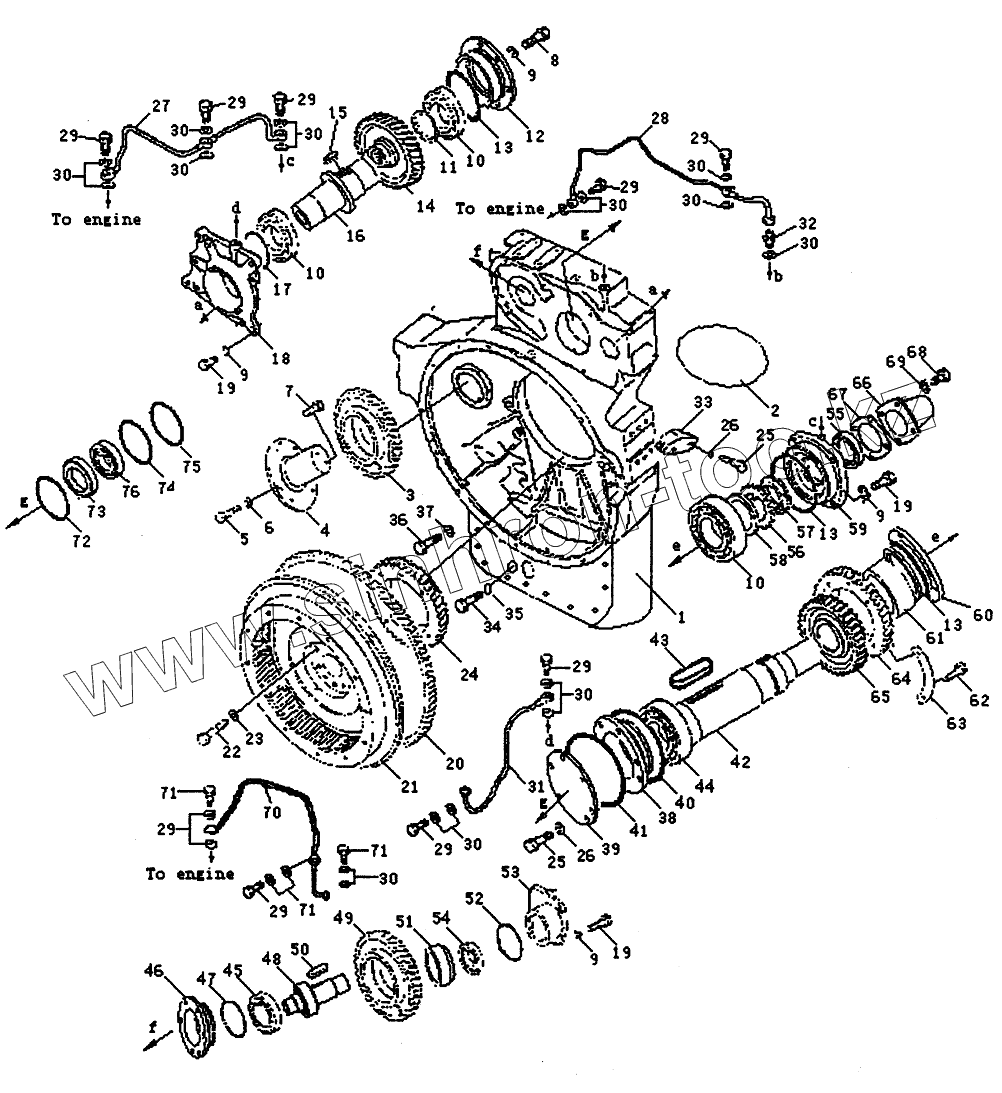

Каталог запасных частей к технике: PENGPU PengPu PD-165. POWER TAKE OFF (PD165, PD165YS)
1
2
3
4
5
6
7
8
9
9
9
9
10
10
10
11
12
13
13
13
14
15
16
17
18
19
19
19
20
21
22
23
24
25
25
26
26
27
28
29
29
29
29
29
29
29
29
29
30
30
30
30
30
30
30
30
30
30
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
71
71
72
73
74
75
76
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | T24A.00-1 | CASE | |
| 2 | SEAL | SEAL | |
| 3 | T24A.00-2 | GEAR | |
| 4 | T24A.00-4 | SHAFT | |
| 5 | GB5782 | BOLT | |
| 6 | GB93 | WASHER | |
| 7 | 07043-50108 | PLUG | |
| 8 | GB5782 | BOLT | |
| 9 | GB93 | WASHER | |
| 10 | GB17276 | BEARING | |
| 11 | T24A.00-5 | SPACER | |
| 12 | T24A.000-6 | BEARING SEAT | |
| 13 | GB3452.1 | O-RING | |
| 14 | T24A.00-7 | PUMP | |
| 15 | GB1096 | KEY | |
| 16 | T24A.00-8 | SHAFT | |
| 17 | 07000-02135 | O-RING | |
| 18 | T24A.00-9 | BEARING SEAT | |
| 19 | GB5782 | BOLT | |
| 20 | RING | GEAR, RING | |
| 21 | FLYWHEEL | FLYWHEEL | |
| 22 | BOLT | BOLT | |
| 23 | WASHER | WASHER | |
| 24 | T24A.00-10 | GEAR | |
| 25 | GB5782 | BOLT | |
| 26 | GB93 | WASHER | |
| 27 | T24A.00.1 | OIL PIPE | |
| 28 | T24A.00.2 | OIL PIPE | |
| 29 | T24A.00-11 | BOLT | |
| 30 | JB982 | WASHER | |
| 31 | T24A.00.3 | OIL PIPE | |
| 32 | 07211-50610 | NIPPLE | |
| 33 | T24A.00-12 | FLANGE | |
| 34 | PLUG | PLUG | |
| 35 | CUSHION | SEAL CUSHION | |
| 36 | BOLT | BOLT | |
| 37 | WASHER | WASHER | |
| 38 | T24A.00-13 | BEARING SEAT | |
| 39 | T24A.00-14 | COVER | |
| 40 | GB3452.1 | O-RING | |
| 41 | GB3452.1 | O-RING | |
| 42 | T24A.00-15 | SHAFT | |
| 43 | GB1096 | KEY | |
| 44 | GB1T283 | BEARING | |
| 45 | GB1T276 | BEARING | |
| 46 | T24A.00-16 | BEARING SEAT | |
| 47 | GB3452.1 | O-RING | |
| 48 | T24A.00.4 | SHAFT | |
| 49 | T24A.00-17 | GEAR | |
| 50 | GB1096 | KEY | |
| 51 | T24A.00-18 | SPACER | |
| 52 | GB3452.1 | O-RING | |
| 53 | T24A.00-19 | BEARING SEAT | |
| 54 | GB17276 | BEARING | |
| 55 | JB2600 | SEAL | |
| 56 | GB858 | WASHER, LOCK | |
| 57 | GB810 | NUT | |
| 58 | T24A.00-20 | SPACER | |
| 59 | T24A.00-21 | COVER | |
| 60 | T24A.00-22 | BEARING SEAT | |
| 61 | T24A.00-23 | SPACER | |
| 62 | GB5782 | BOLT | |
| 63 | T24A.00-24 | PITCH | |
| 64 | T24A.00-25 | GEAR | |
| 65 | T24A.00-26 | GEAR | |
| 66 | T24A.00-27 | COVER | |
| 67 | T24A.00-28 | SEAL | |
| 68 | GB5780 | BOLT | |
| 69 | GB93 | WASHER | |
| 70 | T24A.00.5 | OIL PIPE | |
| 71 | 07206-10610 | JOINT | |
| 72 | T24A.00-29 | RING | |
| 73 | T24A.00-30 | RING | |
| 74 | T24A.00-31 | RING | |
| 75 | GB3452.1 | O-RING | |
| 76 | GB/T276 | BEARING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
