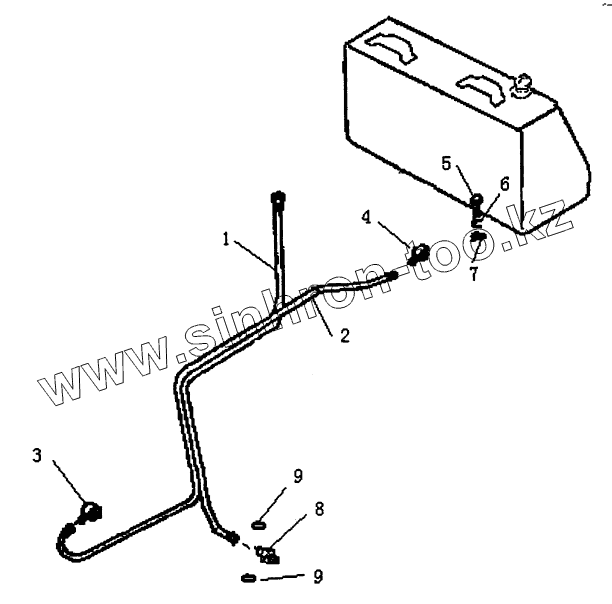

Каталог запасных частей к технике: PENGPU PengPu PD-165. FUEL PIPING (PD165Y-1)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано PengPu PD-165 (2010) PengPu PD-220 (2010) PengPu PD-320 (2010)

Схема > Не выбрано ENGINE MOUNT (PD165Y, PD165YS) FAN AND BELT (PD165Y, PD165YS) INTAKE ASSY (PD165Y, PD165YS) EXHAUST ASSY (PD165Y, PD165YS) RADIATOR ASSY (PD165Y, PD165YS) POWER TAKE OFF (PD165, PD165YS) FUEL TANK (PD165Y-1) FUEL PIPING (PD165Y-1) FUEL TANK (PD165YS) FUEL PIPING (PD165YS) ELECTRICAL SYSTEM (PD165Y-1) GAUGE PANEL (PD165Y-1) ELECTRICAL SYSTEM (PD165YS) (1/2) ELECTRICAL SYSTEM (PD165YS) (2/2) GAUGE PANEL (PD165YS) ELECTRICAL SYSTEM (PD165YS-1) (1/2) GAUGE PANEL (PD165YS-1) (2/2) TORQUE CONVERTER HOUSING (PD165Y, PD165YS) TURBINE AND STATOR (PD165Y, PD165YS) RELIEF VALVE AND SCAVENGE PUMP (PD165Y, PD165YS) TORQUE CONVERTER SUCTION LINE (PD165Y, PD165YS) UNIVERSAL JOINT (PD165Y, PD165YS) POWER SHIFT TRANSMISSION CASE (PD165Y, PD165YS) POWER SHIFT TRANSMISSION REAR COVER (PD165Y, PD165YS) TRANSMISSION CASE COVER (PD165Y, PD165YS) TRANSMISSION CONTROL LEVER (PD165Y, PD165YS) FORWARD CLUTCH (PD165Y, PD165YS) REVERSE CLUTCH (PD165Y, PD165YS) 1ST CLUTCH (PD165Y, PD165YS) 2ND CLUTCH AND 3RD CLUTCH (PD165Y, PD165YS) LUBRICATION VALVE (PD165Y, PD165YS) TRANSMISSION CONTROL VALVE (PD165Y, PD165YS) (1/2) TRANSMISSION CONTROL VALVE (PD165Y, PD165YS) (2/2) FINAL DRIVE SHAFT AND HUB (PD165Y) FINAL DRIVE SHAFT AND HUB (PD165S) FINAL DRIVE GEAR (PD165Y) FINAL DRIVE GEAR (PD165S) FINAL DRIVE CASE AND SPROCKET (PD165Y) FINAL DRIVE CASE AND SPROCKET (PD165S) STEERING CASE AND MAIN FRAME (PD165Y,PD165YS) BEVEL GEAR AND SHAFT (PD165Y,PD165YS) BRAKE (PD165Y,PD165YS) (1/2) BRAKE (PD165Y,PD165YS) (2/2) STEERING CLUTCH (PD165Y,PD165YS) STEERING VALVE (PD165Y,PD165YS) OIL FILTER (PD165Y,PD165YS) TRANSMISSION OIL FILTER (PD165Y,PD165YS) TORQUE CONVERTER PIPING (PD165Y,PD165YS) (1/3) TORQUE CONVERTER PIPING (PD165Y,PD165YS) (2/3) TORQUE CONVERTER PIPING (PD165Y,PD165YS) (3/3) STEERING OIL PIPING (PD165Y,PD165YS) (1/3) STEERING OIL PIPING (PD165Y,PD165YS) (2/3) STEERING OIL PIPING (PD165Y,PD165YS) (3/3) FUEL CONTROL LEVER (PD165Y-1) (1/2) FUEL CONTROL LINKAGE (PD165Y-1) (2/2) DECELERATOR PEDAL (PD165Y-1) FUEL CONTROL LEVER (PD165Y-1) (1/2) FUEL CONTROL LEVER (PD165Y-1) (2/2) FUEL CONTROL LEVER (PD165YS-1) (1/2) FUEL CONTROL LINKAGE (PD165YS-1) (2/2) DECELERATOR PEDAL (PD165YS-1) FUEL CONTROL LEVER (PD165YS-1) (1/2) FUEL CONTROL LEVER (PD165YS-1) (2/2) GEARSHIFT LEVER (PD165Y-1,PD165YS) (1/2) GEARSHIFT LOCK LEVER (PD165Y-1,PD165YS) (1/2) STEERING CONTROL LEVER (PD165Y-1,PD165YS) STEERING AND BRAKE LINKAGE (PD165Y-1,PD165YS) (2/2) BREAK PEDAL (PD165Y-1, PD165YS) PARKING BRAKE LEVER (PD165Y-1, PD165YS) TRACK FRAME (PD165Y, PD165YS) RECOIL SPRING (PD165Y, PD165YS) TRACK FRAME COVER (PD165Y, PD165YS) FRONT IDLER (PD165Y, PD165YS) CARRIER ROLLER (PD165Y, PD165YS) TRACK ROLLER (PD165Y, PD165YS) TRACK (PD165Y) TRACK (PD165YS) EQUALIZER BAR (PD165Y, PD165YS) ENGINE HOOD AND GUARD (PD165Y-1) FENDER (PD165Y-1) BOX AND FLOOR (PD165Y-1) UNDER GUARD (PD165Y-1) ENGINE HOOD AND GUARD (PD165YG) FENDER (PD165YG) BOX AND FLOOR (PD165YG) UNDER GUARD (PD165YG) ENGINE HOOD AND GUARD (PD165YS-1) FENDER (PD165YS-1) BOX AND FLOOR (PD165YS-1) UNDER GUARD (PD165YS-1) OPERATOR SEAT (PD165Y, PD165YS) CAB (PD165Y,PD165YS) CAB (PD165Y-1,PD165YS) CAB (PD165Y-1,PD165YS) ROPS FRAME (1/2) (PD165YG) ROPS FRAME (1/2) (PD165YG) ROPS FRAME (1/2) (PD165Y-1) ROPS FRAME (2/2) (PD165Y-1) REAR GUARD (PD165YS, PD165YG) DRAWBAR (PD165Y, PD165YS) CYLINDER SEAT (PD165Y, PD165YS) ANGEL BLADE (PD165Y-1, PD165YG) C-FRAME (PD165Y-1, PD165YG) ANGEL BLADE (PD165Y-1) C-FRAME (PD165Y-1) STRAIGHT TILT BLADE (PD165YG) STRAIGHT TILT FRAME (PD165YG) U-TYPE TILT FRAME (РD165Y-1) U-TYPE TILT FRAME (PD165Y-1) STRAIGHT TILT FRAME (РD165Y-1) STRAIGHT TILT FRAME (PD165Y-1) STRAIGHT TILT BLADE (1/2) (PD165YS) STRAIGHT TILT FRAME (2/2) (PD165YS) RIPPER SHANK BEAM & LINK (PD165Y, PD165YS) HYDRAULIC PIPING (HYDRAULIC TANK TO RIPPER CYLINDER) HYDRAULIC PIPING (PUMPТО HYDRAULIC TANK) (PD165YG) HYDRAULIC PIPING (TANK ТО LIFT CYLINDER) (PD165YG) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (1/2) (PD165YG) HYDRAULIC PIPING (TANK TO TILT CYLINDER) (2/2) (PD165YG) HYDRAULIC PIPING (PUMP TO HYDRAULIC TANK) (PD165Y-1) HYDRAULIC PIPING (VALVE TO VALVE) (PD165Y-1) HYDRAULIC PIPING (VALVE TO OIL FILTER) (PD165Y-1) HYDRAULIC PIPING (VALVE ТО PUMP) (PD165Y-1) HYDRAULIC PIPING (VALVE TO LIFT CYLINDER) (PD165Y-1) HYDRAULIC PIPING (VALVE TO LIFT CYLINDER) (1/2) (PD165Y-1) HYDRAULIC PIPING (VALVE TO LIFT CYLINDER) (2/2) (PD165Y-1) HYDRAULIC TANK (PD165Y-1) HYDRAULIC PIPING (PUMP TO HYDRAULIC TANK) (PD165YS) HYDRAULIC PIPING (TANK TO LIFT CYLINDER) (PD165YS) HYDRAULIC PIPIING (TANK ТО TILT CYLINDER) (1/2) (PD165YS) HYDRAULIC PIPIING (TANK TO TILT CYLINDER) (1/2) (PD165YS) HYDRAULIC PIPIING (PUMP TO HYDRAULIC TANK) (PD165YS-1) HYDRAULIC PIPHNG (VALVE TO VALVE) (PD165YS-1) HYDRAULIC PIPIING (VALVE TO OIL FILTER) (PD165YS-1) HYDRAULIC PIPIING (VALVE TO PUMP) (PD165YS-1) HYDRAULIC PIPIING (VALVE TO LIFT CYLINDER) (PD165YS-1) HYDRAULIC PIPIING (VALVE TO LIFT CYLINDER) (1/2) (PD165YS-1) HYDRAULIC PIPIING (VALVE TO LIFT CYLINDER) (2/2) (PD165YS-1) HYDRAULIC TANK (PD165YS-1) BLADE CONTROL VALVE ASSY (1/2) (PD165Y, PD165YS) BLADE CONTROL VALVE ASSY (2/2) (PD165Y, PD165YS) RIPPER CONTROL VALVE (PD165Y,PD165YS) BLADE LIFT CYLINDER (PD165Y,PD165YS) TILT CYLINDER (PD165Y,PD165YS) RIPPER CYLINDER (PD165Y,PD165YS)

1

2

3

4

5

6

7

8

9

9

Позиция на иллюстрации	Заводской номер детали		Название детали
T24.04C.1	T24.04C.1		NIPPLE
1	T24.04.3		HOSE
2	T21.04.3		.HOSE
3	T24.04C-2		NIPPLE
4	T24.04-4		NIPPLE
5	GB5783		BOLT
6	GB93		WASHER
7	GB96		WASHER
8	T24.04C-1		NIPPLE
9	GB1235		O-RING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
