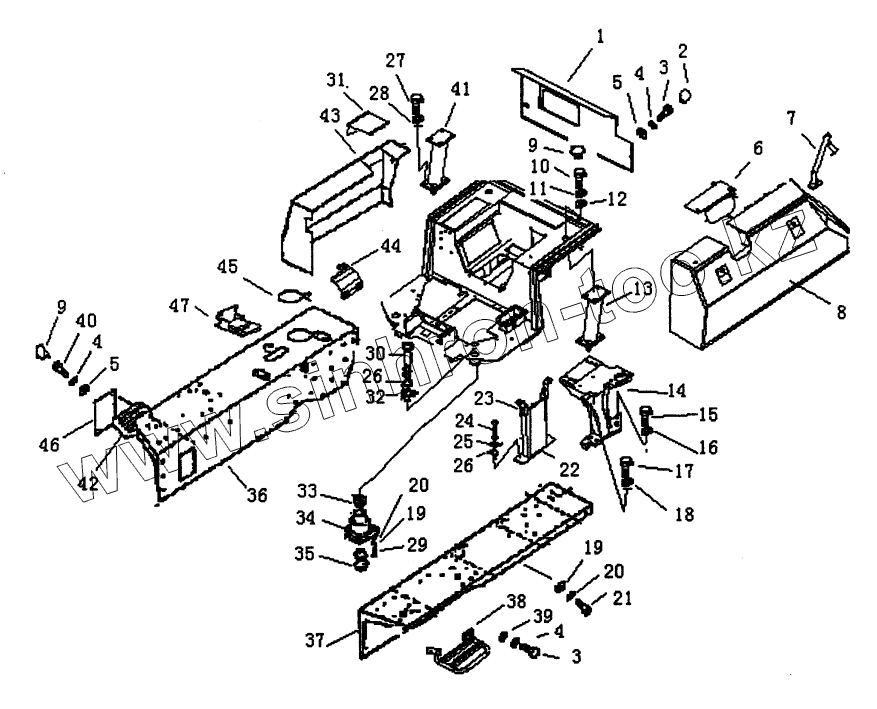

Каталог запасных частей к технике: PENGPU PengPu PD-165. FENDER (PD165Y-1)
1
2
3
3
4
4
4
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
34
36
36
37
38
39
40
41
42
43
44
45
46
47
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| Т24Е.54.13 [1] | Т24Е.54.13 [1] | COVER PLATE | |
| T24E.54.9 | T24E.54.9 | COVER PLATE | |
| Т24Е.54.15 | Т24Е.54.15 | BRACKET | |
| 1 | Т24Е.54.16 | COVER PLATE | |
| 2 | Т24.54-7 | PLUG | |
| 3 | GB5783 | BOLT | |
| 4 | GB93 | WASHER | |
| 5 | GB97.1 | WASHER | |
| 6 | Т24Е.54-4 | COVER PLATE | |
| 7 | Т24Е.54.18 | ELBOW | |
| 8 | Т24Е.54.2 | COVER L, H | |
| 9 | Т24.54-5 | PLUG | |
| 10 | GB5783 | BOLT | |
| 11 | 01643-32460 | WASHER | |
| 12 | GB97.1 | WASHER | |
| 13 | Т24Е.54.17 | POLE | |
| 14 | Т24Е.54.14 | BRACKET | |
| 15 | GB5783 | BOLT | |
| 16 | 01643-21845 | WASHER | |
| 17 | GB5783 | BOLT | |
| 18 | 01643-32460 | WASHER | |
| 19 | GB97.1 | WASHER | |
| 20 | GB93 | WASHER | |
| 21 | GB5783 | BOLT | |
| 22 | Т24Е.54.23 | BRACKET | |
| 23 | Т24Е.54.22 | BRACKET | |
| 24 | GB5783 | BOLT | |
| 25 | GB93 | WASHER | |
| 26 | GB97.1 | WASHER | |
| 27 | GB5783 | BOLT | |
| 28 | GB93 | WASHER | |
| 29 | GB5783 | BOLT | |
| 30 | GB5783 | BOLT | |
| 31 | T24E.54.5 | COVER PLATE | |
| 32 | T41.54-5 | WASHER | |
| 33 | T24.54-18 | RUBBER | |
| 34 | T24.54.32 | BRACKET | |
| 35 | T24.54-14 | PLATE | |
| 36 | T24E.54.12 [2] | FENDER, L.H | |
| 37 | T24E.54.13 [2] | FENDER, R.H | |
| 38 | T24E.54.7 | HANDLE | |
| 39 | T24.54-6 | PLATE | |
| 40 | GB5783 | BOLT | |
| 41 | T24E.54.25 [3] | POLE | |
| 42 | T24E.54.3 | HANDLE | |
| 43 | T24E.54.4 | COVER | |
| 44 | T24E.54.26 | COVER PLATE | |
| 45 | T24E.54.10 | PLATE | |
| 46 | T24E.54.8 | COVER PLATE | |
| 47 | T24E.54.24 | BRACKET |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
